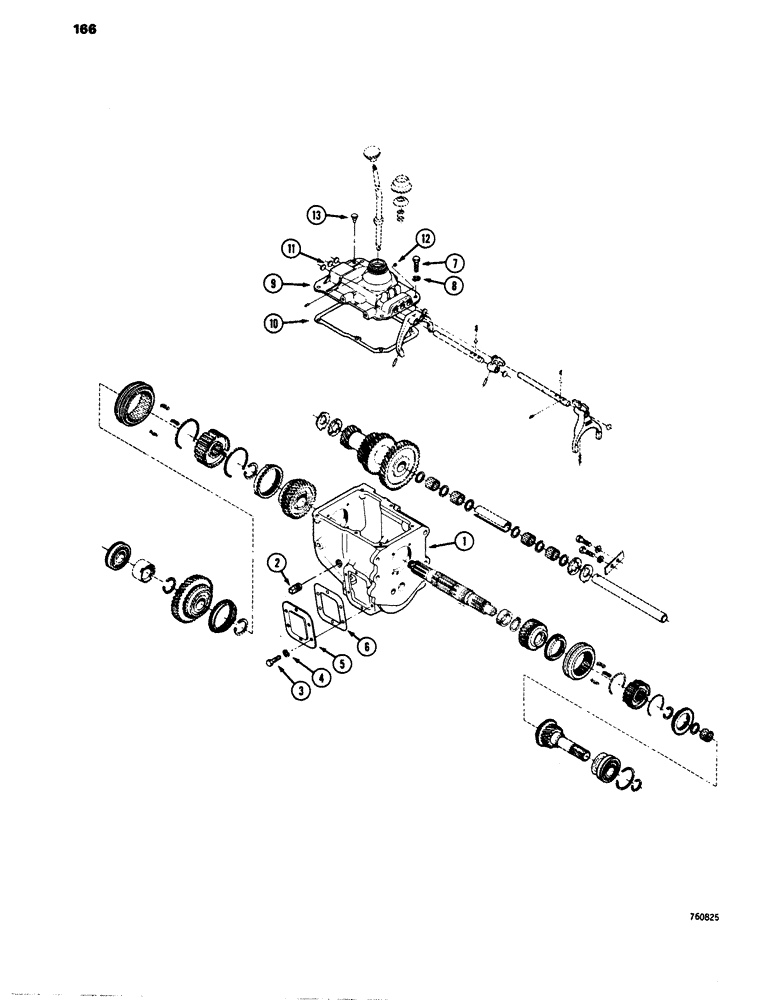

Запчасти Case 680E (166) - TRANSMISSION, CASE AND COVERS (21) - TRANSMISSION

L54268

TRANSMISSION

ASSEMBLY - 4-speed, Includes: Ref. 1 - 13

1шт.

1

D72755

CASE

- transmission

1шт.

2

221-676

PLUG

- drain, magnetic

1шт.

3

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

6шт.

4

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

6шт.

5

L33330

COVER ASSY

COVER - side, transmission

1шт.

6

L33331

GASKET

-, Serial Range: cover-case

1шт.

7

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

6шт.

8

92-6

LOCK WASHER,3/8"

6шт.

9

L33366

HOUSING

COVER - shift control

1шт.

10

L33377

GASKET

-, Serial Range: cover-case

1шт.

11

41-12

PLUG,Exp, 3/4"

- expansion

6шт.

12

L33367

PLUG

- taper

1шт.

13

L33376

BREATHER

- transmission case

1шт.
