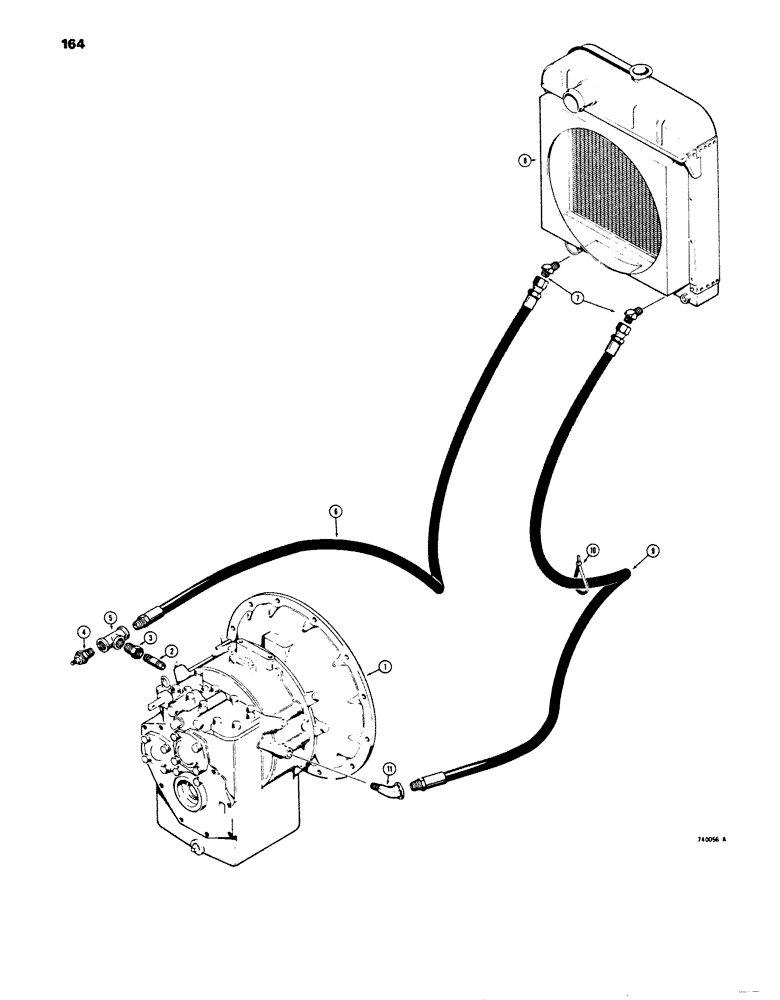

Запчасти Case 680E (164) - FORWARD AND REVERSE TRANSMISSION, COOLING SYSTEM (21) - TRANSMISSION

1

REF

INSTRUCTION

TRANSMISSION - forward and reverse, see figure 142 thru 162 for complete transmission

1шт.

2

221-164

FITTING,Nipple, 3/8" NPT x 2"

NIPPLE - pipe, 3/8" NPT x 2"

1шт.

3

221-1056

BUSHING

REDUCING BUSHING - hex., pipe, 1/2" x 3/8" NPT

1шт.

4

L56217

UNIT

SENDING UNIT - torque converter temperature gauge

1шт.

5

221-1424

TEE,Pipe, 1/2" NPT

- Pipe, 1/2" NPT

1шт.

6

L48749

HOSE

- forward and reverse transmission to radiator, 56" (1422 mm) long

1шт.

7

218-1098

ELBOW,45 Degree, 3/4-14" 37 Degree x 1/2"-14, NPTF

ADAPTER - radiator to hoses, 45 degree

2шт.

8

REF

INSTRUCTION

RADIATOR ASSEMBLY - engine and forward and reverse transmission cooling, see figure 54 for related parts

1шт.

9

L48750

HOSE

- radiator to forward and reverse transmission, 62" (1575 mm) long

1шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - hose tie

1шт.

11

221-1403

ELBOW,45 Degree, 3/8"-18, NPT

FITTING - 45 degree, 3/8" NPT

1шт.
