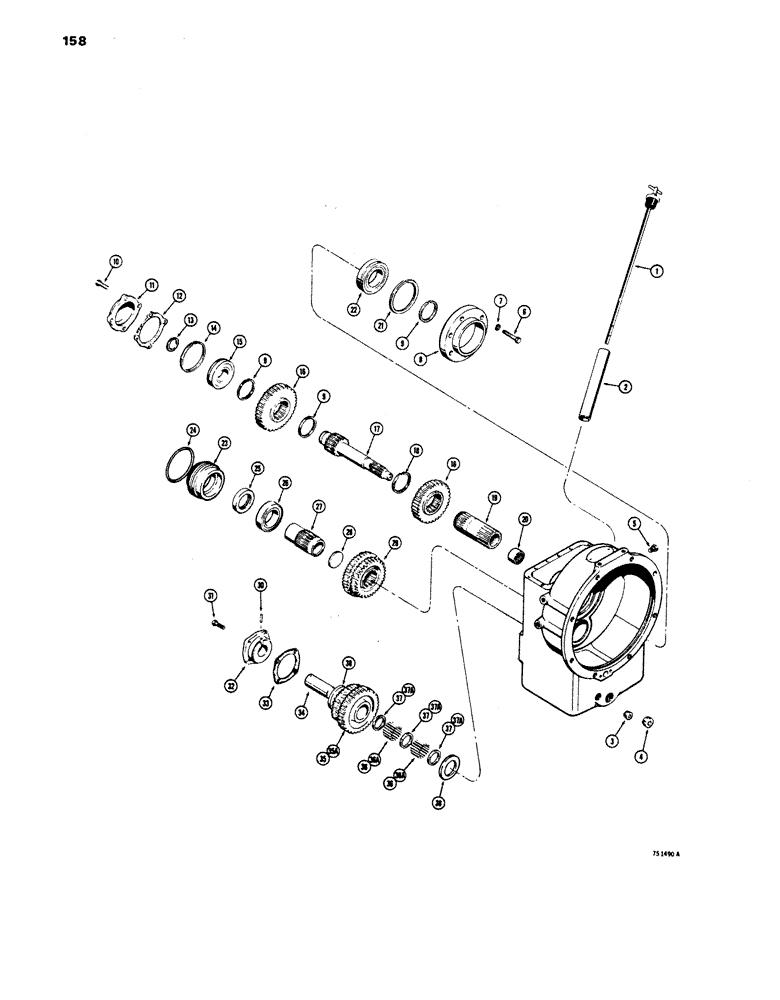

Запчасти Case 680E (158) - TRANSMISSION, POWER SHUTTLE AND HOUSING, BEFORE TRANSMISSION S/N 75001 (21) - TRANSMISSION

L35677

TRANSMISSION

ASSEMBLY - forward and reverse, Includes: Ref. 1 - 38

1шт.

1

A14837

DIPSTICK

- oil level

1шт.

2

L30225

TUBE,1.005" DIA x 1.312" L

- filler and dipstick

1шт.

3

221-654

PLUG,Hex Hd, 1/2"-14

- pipe, hex. head, 1/2" NPT

1шт.

4

221-846

PLUG,Hex Soc, 1"-11 1/2

- pipe, square socket head, 1" NPT

1шт.

5

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, hex. head, 1/4" NPT

1шт.

6

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

5шт.

7

92-5

LOCK WASHER,5/16"

5шт.

8

L30236

RETAINER

- bearing

1шт.

9

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap

3шт.

10

L32122

BOLT

- locking and sealing

4шт.

11

A14854

RETAINER - shaft bearing

1шт.

12

A14855

GASKET

- bearing retainer

1шт.

13

A14835

RING, SNAP

RING - retaining, shaft

1шт.

14

A28153

RING

- retaining, Serial Range: bearing-retainer

1шт.

15

L33854

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

BEARING - forward drive shaft

1шт.

16

A14853

GEAR

- low and reverse, 35 teeth

2шт.

17

A14850

SHAFT

- forward drive

1шт.

L30230

SHAFT

ASSEMBLY - drive, Includes: Ref. 18 - 22

1шт.

18

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap

1шт.

19

NSS

NOT SOLD SEPARAT

SHAFT - drive

1шт.

20

A14858

NEEDLE BEARING,Needle, 28.56mm ID x 34.94mm OD x 19.05mm W

BEARING - needle

1шт.

21

L30233

RING, SNAP

RING - snap, bearing

1шт.

22

A31209

BALL BEARING,49.99mm ID x 89.98mm OD x 20mm W

BEARING - reverse

1шт.

23

L33320

RETAINER

- output shaft bearing

1шт.

24

D50034

O-RING,0.139" Thk x 3.484" ID

O-RING - retainer

1шт.

25

A55446

OIL SEAL

SEAL - oil, output shaft

1шт.

26

G13075

BEARING, BALL

BEARING - output shaft

1шт.

L35680

SHAFT

ASSEMBLY - output, Includes: Ref. 27 and 28

1шт.

27

NSS

NOT SOLD SEPARAT

SHAFT - output

1шт.

28

A7509

PLUG

- expansion

1шт.

29

L30470

GEAR

- countershaft

1шт.

30

F37914

PIN

- lock, shaft

1шт.

31

L32122

BOLT

- locking and sealing

4шт.

32

L33892

RETAINER

- idler shaft

1шт.

33

A14844

GASKET

- retainer

1шт.

34

A14841

SHAFT

- idler gear

1шт.

35

L35681

GEAR

- idler, used with Refs. 36 and 37 only

1шт.

35a

D78402

PINION

GEAR - idler, used with Refs. 36A and 37A only

1шт.

Part of Gear and Bearing Kit, P/N D78401

1шт.

36

A63087

NEEDLE ROLLER

BEARING - needle, idler gear, 0187" (4.75 mm) dia., if used

48шт.

36a

D78403

NEEDLE

BEARING - needle, idler gear, .216" (5.49 mm) dia., if used

42шт.

Part of Gear and Bearing Kit, P/N D78401

1шт.

37

D35683

CYLINDER ASSY.

SPACER - needle bearing, used with Ref. 36 only

3шт.

37a

D78404

BUSHING

SPACER - needle bearing, used with Ref. 36A only

3шт.

Part of Gear and Bearing Kit, P/N D78401

1шт.

38

L33891

WASHER

- thrust, idler gear

2шт.

D78401

KIT

- gear and bearing, includes Refs. 35A, 36A, and 37A

1шт.
