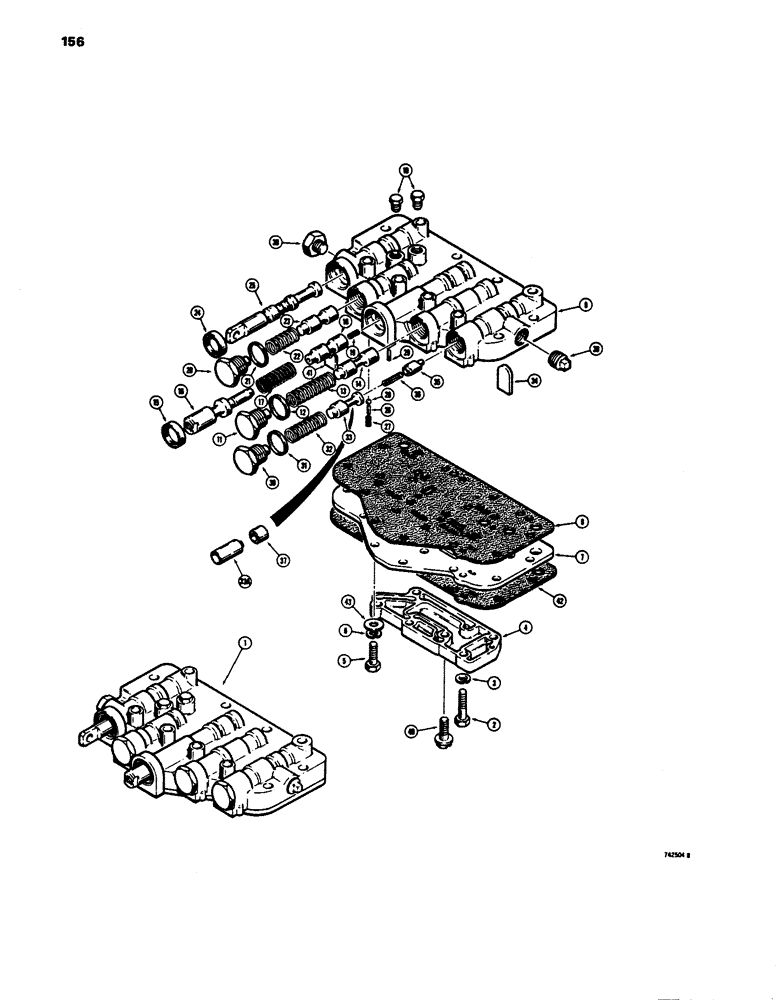

Запчасти Case 680E (156) - TRANSMISSION, FORWARD AND REVERSE CONTROL VALVE, TRANS. S/N 75001 AND AFTER (21) - TRANSMISSION

1

D66391

VALVE

ASSEMBLY - complete, Includes: Ref. 2 - 42

1шт.

2

D66401

HHCS - 5/16" - 18 NC x 1-1/4"

6шт.

3

92-5

LOCK WASHER,5/16"

6шт.

4

D66400

COVER - valve body

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

HHCS - 5/16" - 18 NC x 7/8", order Ref. 5A

2шт.

5a

D80336

BOLT AND WASHER ASSEMBLY - replaces Refs. 5 and 6

2шт.

6

92-5

LOCK WASHER,5/16"

2шт.

7

D66399

PLATE

- separator, before transmission sn. 76081 .110" - .128" (2.79 - 3.25 mm) thick

1шт.

7a

D72751

PLATE ASSY.

PLATE - separator, trans. sn. 76801 and after, .057" - .063" (1.45 - 1.60 mm) thick (When ordered for transmissions prior to 76081 also order (9) of Ref. 43

1шт.

Units used 221-12 1/4" plug.

1шт.

D72751 separator plate - Reference to transmission SN should read 76081 and after (not 76801 and after).

1шт.

8

D66398

GASKET

-, Serial Range: plate-body

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

10

221-661

PLUG,Hex Hd, 1/8"-27

- pipe, hex. head, 1/8" NPT

2шт.

11

A14882

SCREW

- pressure regulator valve

1шт.

12

G10964

WASHER

GASKET - valve retainer screw

1шт.

13

A14885

VALVE SPRING

SPRING - regulator valve

1шт.

14

D66393

VALVE

- pressure regulator

1шт.

15

A14877

SEAL

- oil, clutch control

1шт.

16

D66394

PLUNGER

- clutch control

1шт.

17

A14874

VALVE SPRING

SPRING - plunger

1шт.

18

A14878

PLUNGER

VALVE - clutch control

1шт.

19

A14879

VALVE SPRING

SPRING - clutch control valve

1шт.

20

A14882

SCREW

- clutch supply valve

1шт.

21

G10964

WASHER

GASKET - valve retainer screw

1шт.

22

A14881

VALVE SPRING

SPRING - clutch supply valve

1шт.

23

A14884

PLUNGER

VALVE - clutch supply

1шт.

24

A14863

OIL SEAL

SEAL - oil, direction selector spool

1шт.

25

D66395

VALVE

SPOOL - direction selector

1шт.

26

D66397

AXLE PIN

PIN - detent spring

1шт.

27

D66396

VALVE SPRING

SPRING - detent ball

1шт.

28

211-7

BALL,1/4" Dia

- steel (6 mm) 1/4" Dia

1шт.

29

D71461

AXLE PIN

PIN - dowel

1шт.

30

D72748

PLUG

- converter regulating valve retainer

1шт.

31

G10964

WASHER

GASKET - converter regulating valve screw

1шт.

32

D72749

VALVE SPRING

SPRING - converter regulating valve

1шт.

33

NSS

NOT SOLD SEPARAT

VALVE - converter regulating for service order L72748 plug, D72749 spring, D72750 valve, and D72747 plug

1шт.

33a

D72750

LOCK VALVE

VALVE - converter regulating

1шт.

34

D66404

PLATE ASSY.

PLATE - valve stop

1шт.

35

D66402

LOCK VALVE

VALVE - lube regulating valve

1шт.

36

D66403

VALVE SPRING

SPRING - lube regulating valve

1шт.

37

D72747

PLUG

- converter regulator valve

1шт.

38

72752

PLUG - special, .56" (14.22 mm) long, if used

1шт.

39

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, 1/4" NPT

1шт.

40

163-25

SCREW - #10 - 24 NC x 7/8"

1шт.

41

D73728

STOP LOCK

STOP - valve

1шт.

42

D72753

GASKET

- valve body

1шт.

43

195-2026

WASHER,.328" x 5/8" x .065"

- flat

9шт.
