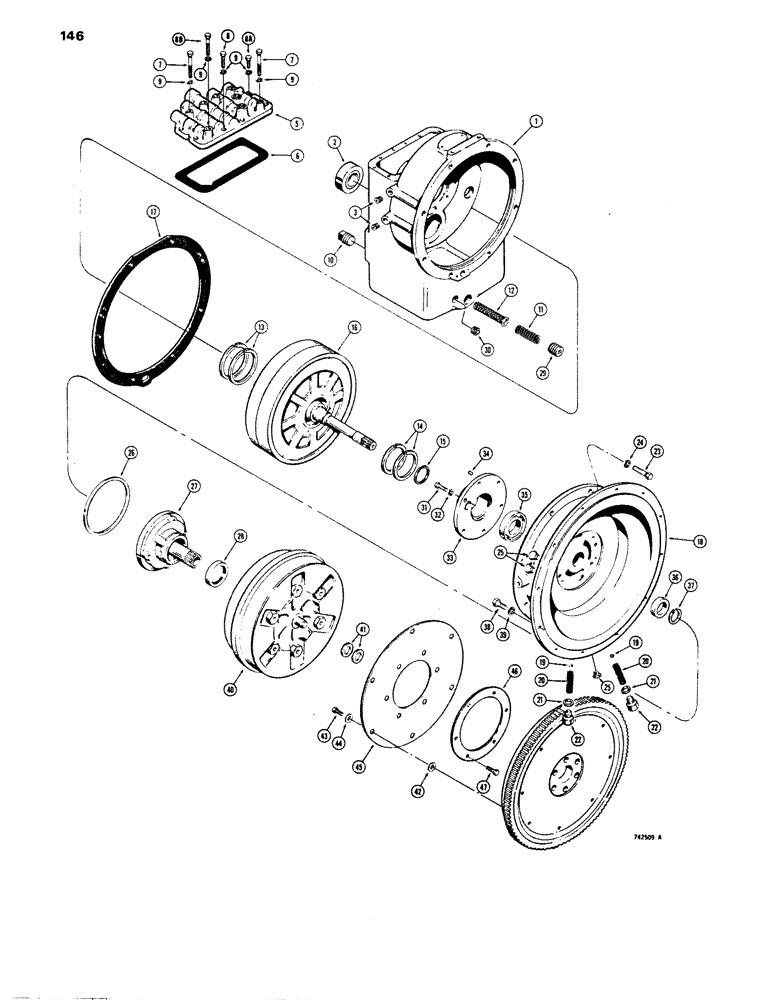

Запчасти Case 680E (146) - TRANSMISSION, TORQUE CONVERTER HOUSING AND PUMP, TRANSMISSION S/N 75001 AND AFTER (21) - TRANSMISSION

D73700

TRANSMISSION

ASSEMBLY - forward and reverse, Includes: Ref. 1 - 37

1шт.

D66379

CASE

HOUSING ASSEMBLY - transmission, Includes: Ref. 1 - 4A

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - transmission

1шт.

2

G13075

BEARING, BALL

BEARING - housing

1шт.

3

221-841

PLUG

- pipe, hex. socket head, 1/4" NPT

2шт.

4

221-13

PLUG,Sq Hd, 3/8"-18

- pipe, square head, 3" NPT, not shown

1шт.

4a

D73701

PLUG

- pipe, drain, 5/8" NF, not shown

1шт.

5

D66391

VALVE

ASSEMBLY - forward and reverse control, figure 156

1шт.

5a

D72753

GASKET

- valve body, part of D66391 valve, see figure 156, not shown, Start Serial: 76081

1шт.

6

D66390

GASKET

- valve body, before trans sn. 76081

1шт.

7

13-534

BOLT,Hex, 5/16" - 18 x 2-1/8", Gr 5

HHCS - 5/16" - 18 NC x 2-1/8"

5шт.

8

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

5шт.

8a

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

1шт.

8b

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

9

92-5

LOCK WASHER,5/16"

12шт.

10

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" NPT

1шт.

11

L32746

SPRING

- screen

1шт.

12

L32745

FILTER SCREEN

SCREEN - oil

1шт.

13

L30237

SEAL

RING - sealing, 3-1/2" (89 mm) O.D.

2шт.

14

A14833

SEALING RING

RING - sealing, 3" (76 mm) O.D.

2шт.

15

L30486

SEAL

RING - sealing, 2" (51 mm) O.D.

1шт.

16

D66382

CLUTCH ASSEMBLY

- forward and reverse, figure 152

1шт.

D66382R

REMAN-CLUTCH PLATE

680E, SN 75001 AND AFTER

1шт.

D66382C

CORE-CLUTCH PLATE

Return Number

1шт.

16

D66382C

CORE-CLUTCH PLATE

Return Number, Clutch Assembly, N.A. Only

1шт.

17

D66388

GASKET

- transmission housing

1шт.

18

D66389

HOUSING

CASE - transmission, front, includes Ref. 35

1шт.

19

211-12

BALL,7/16 Dia

- steel, 7/16" (11.1 mm) dia.

2шт.

20

L33705

SPRING

- pop valve

2шт.

21

A14810

WASHER

- special

2шт.

22

A14811

SEAT, VALVE

SEAT - spring, pop valve

2шт.

23

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

5шт.

23

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

24

92-6

LOCK WASHER,3/8"

8шт.

25

221-661

PLUG,Hex Hd, 1/8"-27

- pipe, hex. head, 1/8" NPT

3шт.

26

L30487

GASKET,140.49mm ID x 150.02mm OD x 3.02mm Thk

- pump

1шт.

27

L30488

PUMP

ASSEMBLY - torque converter charging, Includes: Ref. 28 - 30

1шт.

27

137093A1R

REMAN-HYD PUMP

680E, REMAN for Part No. L30488, N.A. Only

1шт.

27

137093A1C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

28

L30489

OIL SEAL

- pump

1шт.

29

221-846

PLUG,Hex Soc, 1"-11 1/2

- square socket head, 1" NPT

1шт.

30

221-654

PLUG,Hex Hd, 1/2"-14

- hex. head, 1/2" NPT

1шт.

31

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

32

92-5

LOCK WASHER,5/16"

6шт.

L30479

CAP

RETAINER ASSEMBLY - bearing, Includes: Ref. 33 and 34

1шт.

33

NSS

NOT SOLD SEPARAT

RETAINER - bearing

1шт.

34

L30245

PLUG

- retainer

2шт.

35

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- clutch

1шт.

36

L30483

SPACER

- bearing

1шт.

37

L30484

RING, SNAP

RING - retaining, input shaft

1шт.

38

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

12шт.

39

92-6

LOCK WASHER,3/8"

12шт.

40

L77848

CONVERTER

- torque

1шт.

41

L11172

SHIM,.0478" Thk

Pump engagement .0478" Thk

1шт.

42

195-2024

WASHER,3/8" x 7/8" x .065"

- flat, steel

1шт.

L100684

PLATE

KIT - torque converter drive, Includes: Ref. 43 - 47

1шт.

43

121-104

BOLT,Lock Place, Hex, 5/16" - 18 x 3/4", Gr 8

- place, 5/16" - 18 NC x 3/4"

6шт.

44

A14512

WASHER

- torque converter drive plate

6шт.

45

A14509

PLATE

- torque converter drive

1шт.

46

D81592

PLATE

- reinforcement

1шт.

47

121-203

BOLT,Lock Place, Hex, 3/8" - 24 x 1/2", Gr 8

- place, 3/8" - 24 NF x 1/2"

6шт.
