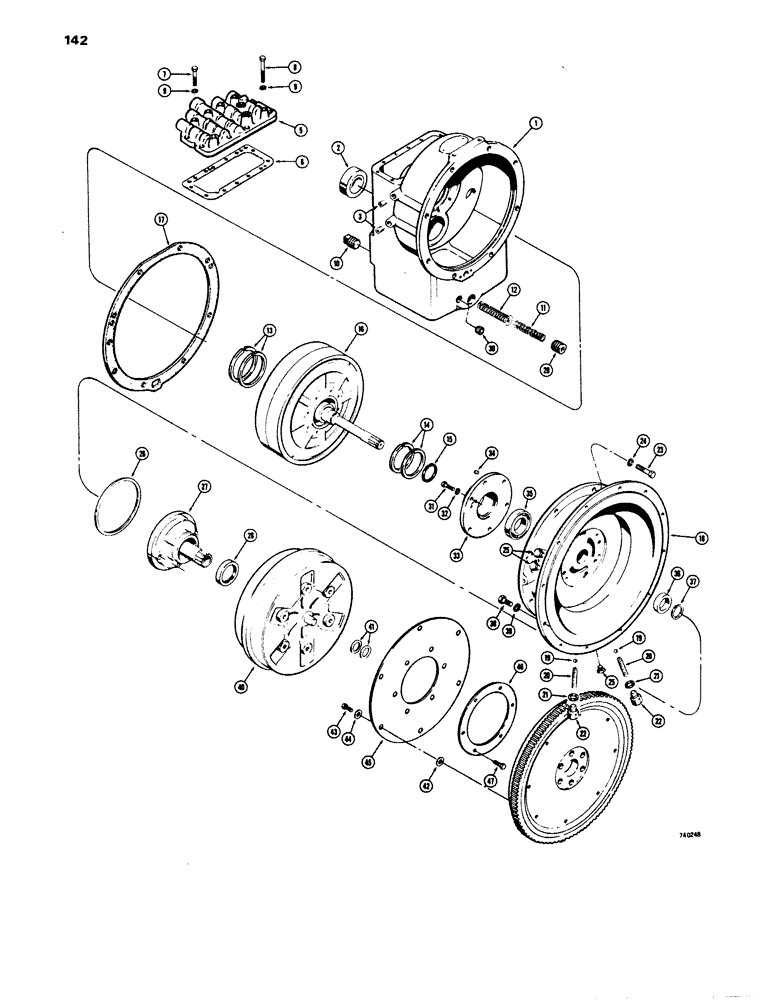

Запчасти Case 680E (142) - TRANSMISSION, TORQUE CONVERTER HOUSING AND PUMP, BEFORE TRANSMISSION S/N 75001 (21) - TRANSMISSION

L35677

TRANSMISSION

TRANSMISSION ASSEMBLY - forward and reverse, Includes: Ref. 1 - 38

1шт.

D66379

CASE

HOUSING ASSEMBLY - transmission, Includes: Ref. 1 - 4A

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - transmission

1шт.

2

G13075

BEARING, BALL

BEARING - housing

1шт.

3

221-841

PLUG

PLUG - pipe, hex. socket head, 1/4" NPT

2шт.

4

221-13

PLUG,Sq Hd, 3/8"-18

PLUG - pipe, square head, 3/8" NPT, not shown

2шт.

4a

D73701

PLUG

PLUG - pipe, drain, 5/8" NF, not shown

1шт.

5

L30972

LOCK VALVE

VALVE ASSEMBLY - forward and reverse control, see figure 154, Includes: Ref. 6 - 34

1шт.

6

L32119

GASKET

GASKET - valve body

1шт.

7

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

8шт.

8

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

BOLT, Hex, 5/16"-18 x 2 1/4", G5

4шт.

9

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

12шт.

10

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - PIPE, 1/2" NPT

1шт.

11

L32746

SPRING

SPRING - screen

1шт.

12

L32745

FILTER SCREEN

SCREEN - oil

1шт.

13

L30237

SEAL

RING - sealing, 3-1/2" (89 mm) O.D.

2шт.

14

A14833

SEALING RING

RING - sealing, 3" (76 mm) O.D.

2шт.

15

L30486

SEAL

RING - sealing, 2" (51 mm) O.D.

1шт.

16

L35684

CLUTCH

CLUTCH ASSEMBLY - forward and reverse, see figure 150

1шт.

17

D66388

GASKET

GASKET - transmission housing

1шт.

18

L35692

SPARE PART CASE - transmission, front

1шт.

P/N L35692 TRANS CASE-NEVER SET-UP IN GPN. COMPLETE TRANS ASSY HAS BEEN SUBBED TO LATER S/N TRANSMISSION WHICH USED P/N D66389 CASE. P/N HAS BEEN DISCONTINUED; CHECK DEPOT THEN DPNI.

1шт.

19

211-12

BALL,7/16 Dia

BALL - steel, 7/16" (11 mm) dia.

2шт.

20

L33705

SPRING

SPRING - pop valve

2шт.

21

A14810

WASHER

WASHER - special

2шт.

22

A14811

SEAT, VALVE

SEAT - spring, pop valve

2шт.

23

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/8", G5, Full Thd

5шт.

23

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

BOLT, Hex, 3/8"-16 x 1 3/4", G5

3шт.

24

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

8шт.

25

221-661

PLUG,Hex Hd, 1/8"-27

PLUG - pipe, hex. head, 1/8" NPT

3шт.

26

L30487

GASKET,140.49mm ID x 150.02mm OD x 3.02mm Thk

GASKET - jump

1шт.

27

L30488

PUMP

PUMP ASSEMBLY - torque converter charging, Includes: Ref. 28

1шт.

L30488 pump assy - There is a small bushing (part nbr D50071) inside pump which seals against Ref.28 pump seal. There is also a bushing (part nbr D50073) inside the shaft end.

1шт.

Bushing (part nbr D50071) inside pump which seals against Ref. 28 pump seal. There is also a bushing (part nbr D50073) inside the shaft end.

1шт.

27

137093A1R

REMAN-HYD PUMP

680E, Reman for Part Nunber L30488

1шт.

27

137093A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

28

L30489

OIL SEAL

SEAL - pump

1шт.

29

221-846

PLUG,Hex Soc, 1"-11 1/2

PLUG - square socket head, 1" NPT

1шт.

30

221-654

PLUG,Hex Hd, 1/2"-14

PLUG - hex. head, 1/2" NPT

1шт.

31

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

6шт.

32

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

6шт.

L30479

CAP

RETAINER ASSEMBLY - bearing

1шт.

33

NSS

NOT SOLD SEPARAT

RETAINER - bearing

1шт.

34

L30245

PLUG

PLUG - retainer

2шт.

35

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

BEARING - clutch

1шт.

36

L30483

SPACER

SPACER - bearing

1шт.

37

L30484

RING, SNAP

RING SNAP RING - retaining, input shaft

1шт.

38

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

12шт.

39

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

12шт.

40

L77848

CONVERTER

CONVERTER - torque

1шт.

40

LR101098

REMAN-TORQUE CONVERT

ER Remanufactured, Torque Converter

1шт.

40

LC101098

CORE-TORQUE CONVERTR

Core-Torque Converter Return Number

1шт.

41

L11172

SHIM,.0478" Thk

SHIM, , Pump engagement .0478" Thk

1шт.

42

195-2024

WASHER,3/8" x 7/8" x .065"

WASHER - flat, 3/8"

1шт.

L100684

PLATE

KIT - torque converter drive, Includes: Ref. 43 - 47

1шт.

43

121-104

BOLT,Lock Place, Hex, 5/16" - 18 x 3/4", Gr 8

BOLT - place, 5/16" - 18 NC x 3/4"

6шт.

44

A14512

WASHER

WASHER - torque converter drive plate

6шт.

45

A14509

PLATE

PLATE - torque converter drive

1шт.

46

D81592

PLATE

PLATE - reinforcement

1шт.

47

121-203

BOLT,Lock Place, Hex, 3/8" - 24 x 1/2", Gr 8

BOLT - place, 3/8" - 24 NF x 1/2"

6шт.
