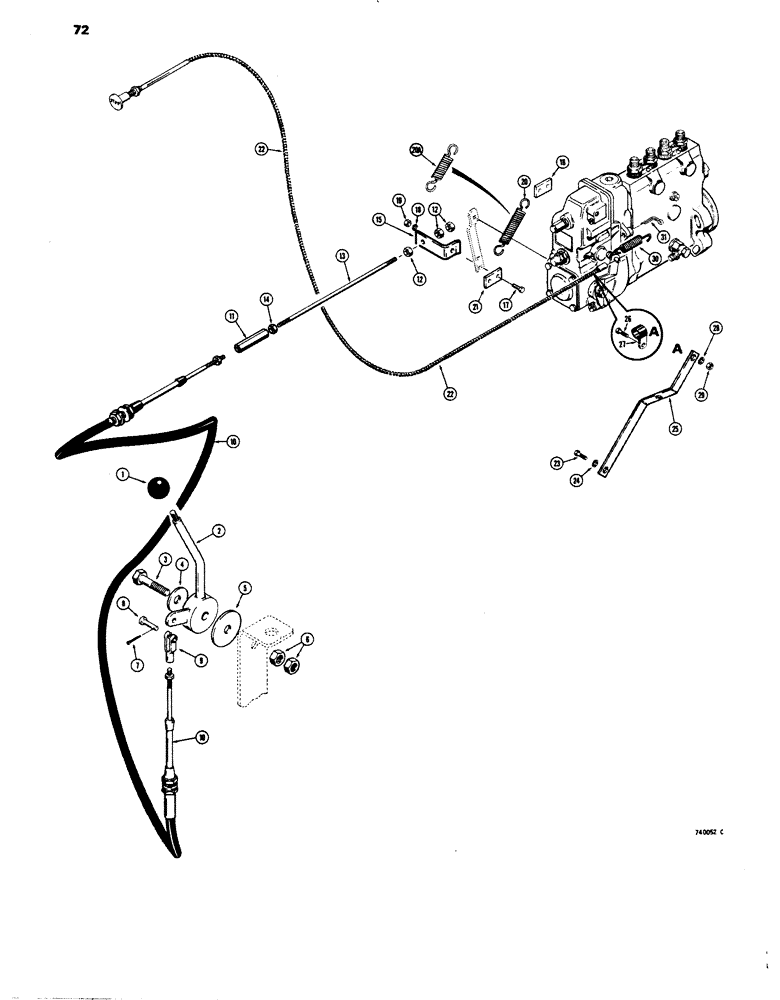

Запчасти Case 680E (072) - HAND THROTTLE AND FUEL SHUTOFF (10) - ENGINE

1

D49996

KNOB

- hand throttle lever

1шт.

2

L55583

LEVER ASSY.

LEVER - hand throttle

1шт.

3

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 NC x 2-1/4"

1шт.

4

R14771

WASHER

- spring, special

1шт.

5

R15071

DISC

- friction

1шт.

6

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2"-13 NC

2шт.

7

132-6

COTTER PIN,1/16" x 5/8"

PIN, Split (Cotter) 1/16" x 5/8"

1шт.

8

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4"

1шт.

213-2 clevis - Some later units used part nbr L74494.

1шт.

10

L55603

CABLE PULLING GRIP

CABLE ASSEMBLY - backhoe throttle

1шт.

L55603 cable - Some later units used part nbr L73388.

1шт.

11

L58548

TURNBUCKLE

- throttle adjustment

1шт.

12

25-214

BOLT (MACHINE)

NUT - hex., 1/4" - 28 NF, R.H. thread

3шт.

13

L58523

ROD

- control, backhoe throttle

1шт.

14

129-361

NUT,Jam, 1/4"-28, G5, LH

- hex., 1/4" L.H. thread

1шт.

Some later units used 25-154 jam nut.

1шт.

129-361 hex nut, 1/4" LH thread

1шт.

15

L58210

BRACKET

SLIDE - throttle, backhoe

1шт.

16

L55741

PLATE - retaining, return spring, if used

1шт.

17

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

HHCS - 1/4" - 28 NF x 3/4", used with L50735 spring

1шт.

17

113-169

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5, Full Thd

Used with L48104 spring Hex, 1/4"-20 x 1 1/4", G5, Full Thd

1шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

19

25-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4" - 28 NF, Used with L50735 spring

1шт.

19

25-144

JAM NUT,Jam, 1/4"-20, G5

- hex., jam, 1/4" - 20 NC, used with L48104 spring

1шт.

20

L50735

VALVE SPRING

SPRING - return, throttle, 3" (76 mm) free length

1шт.

20a

L48104

SPRING

- return, throttle, 2-1/4" (57 mm) free length

1шт.

21

L40703

PLATE ASSY.

PLATE - retaining, return spring, if used

1шт.

22

L57925

FRONT AXLE

CABLE - control, fuel shutoff

1шт.

23

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

HHCS - 3/8" - 16 NC x 1/2"

1шт.

24

92-6

LOCK WASHER,3/8"

1шт.

25

L71856

STRAP

BRACKET - support, fuel shutoff

1шт.

L71856 bracket - Early production units used L40891 bracket.

1шт.

26

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

27

80049853

YOKE

-, Serial Range: cable-bracket

1шт.

28

92-6

LOCK WASHER,3/8"

1шт.

29

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

1шт.

30

L45037

SPRING

- return, fuel shutoff, if used

1шт.

31

L46009

PIN

- return spring, if used

1шт.
