Запчасти Case 680E (070) - FOOT THROTTLE CONTROL (10) - ENGINE

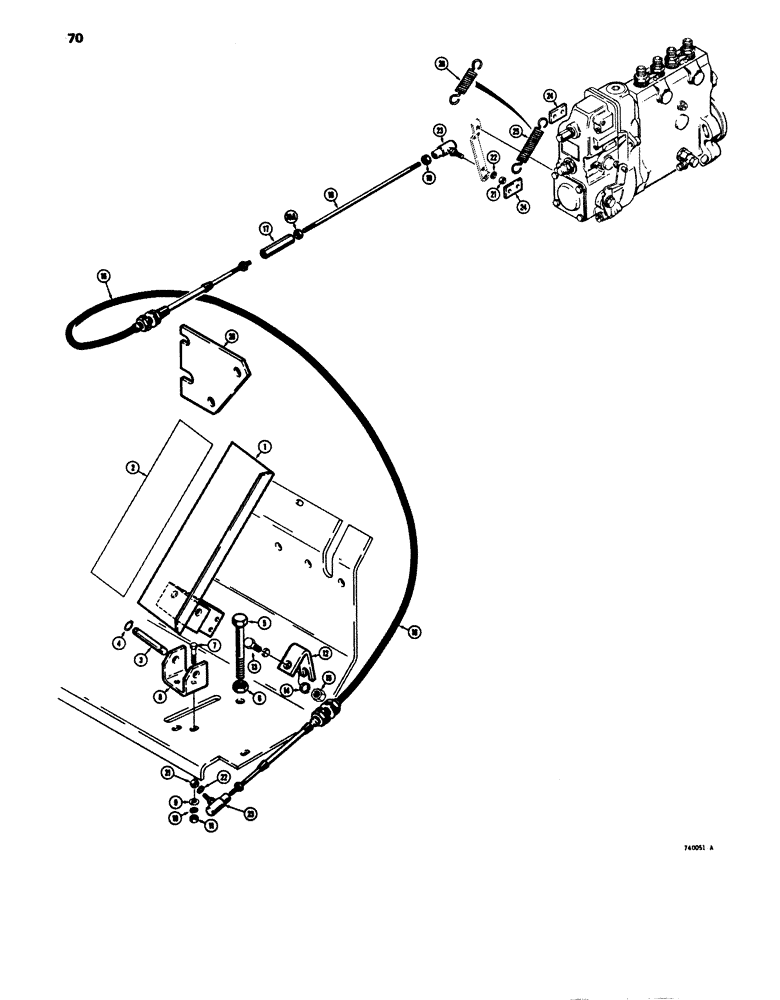

Схема запчастей Case 680E - (070) - FOOT THROTTLE CONTROL (10) - ENGINE

Артикул

Название

Примечание

Количество

1

L48004

PEDAL

- accelerator, foot

1шт.

2

L48674

PAD

- accelerator pedal

1шт.

3

L48003

PIN

- pedal pivot

1шт.

4

A27795

RING

- pin retaining, 5-1/2"

2шт.

5

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

Accelerator stop Hex, 1/2"-13 x 5 1/2", G5

1шт.

6

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2"-13 NC

1шт.

7

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

8

L48002

BRACKET

- accelerator pedal pivot

1шт.

9

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

25-104

NUT,1/4"-20, G5

2шт.

12

L55855

STRIP

BRACKET - cable mounting, accelerator, rear

1шт.

13

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

14

92-8

LOCK WASHER,1/2"

1шт.

15

25-108

NUT,1/2"-13, G5

- hex., 1/3" - 13NC

1шт.

16

L72961

CABLE PULLING GRIP

CABLE ASSEMBLY - accelerator

1шт.

17

L14227

CONNECTOR, ELEC

TURNBUCKLE - throttle adjustment

1шт.

18

L58515

ROD

- throttle adjustment

1шт.

19

129-27

NUT,Hex, #10 - 32

- hex., NF, Right hand thread #10-32

1шт.

19a

129-315

NUT,#10-32, LH

1шт.

20

L78680

BRACKET

- cable mounting, accelerator, front

1шт.

21

129-37

NUT,#10-32

2шт.

22

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

23

L12437

BALL JOINT,#10 - 32 x 7/8"

- cable end

2шт.

24

L40703

PLATE ASSY.

PLATE - retaining, return spring, if used

2шт.

25

L50735

VALVE SPRING

SPRING - return, accelerator pedal, 3" (76 mm) free length

1шт.

26

L48104

SPRING

- return, accelerator pedal, 2-1/4" (57 mm) free length

1шт.

Accelerator cable & bracket - If customer has old cable (L55884) and bracket (L58509) setup and wants to replace the cable with the sub-to nbr (L72961), he must also replace the bracket with the current bracket (L78680) or else the cable will be too short.(refer CE Service Bulletin 22-78)

1шт.

L33366 shift control cover - Part nbr

1шт.

Components for old valves when available.

1шт.
