Запчасти Case 680E (064) - FUEL TANK AND LINES, MODELS WITHOUT ELECTRIC FUEL PUMP (10) - ENGINE

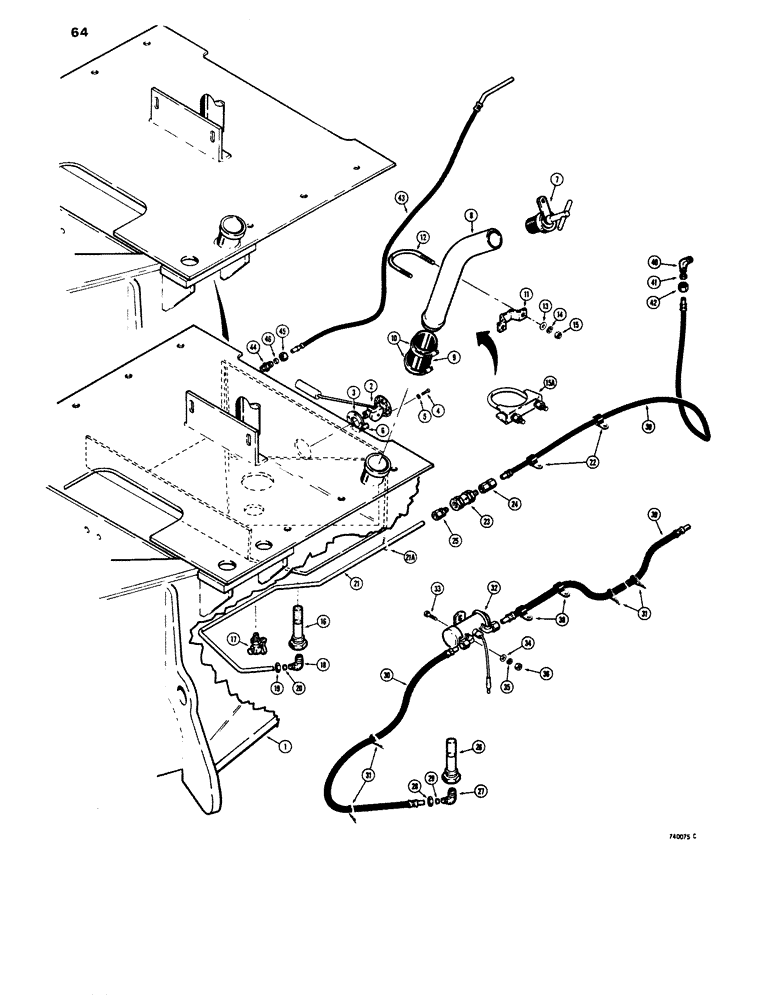

Схема запчастей Case 680E - (064) - FUEL TANK AND LINES, MODELS WITHOUT ELECTRIC FUEL PUMP (10) - ENGINE

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CHASSIS ASSEMBLY - see figure 422

1шт.

2

L57512

UNIT

SENDING UNIT - fuel level gauge

1шт.

3

A11822

GASKET

- sending, Serial Range: unit-tank

1шт.

4

163-4

SCREW,Hex, #10 - 32 x 5/8"

- machine, #10-32 NF x 5/8"

5шт.

5

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

6

L13194

NUT

RIVNUT - retainer, #10-32 NF

5шт.

7

L58208

CAP

- fuel filler pipe, for lock up parts see figure 458

1шт.

8

L71484

PIPE

- fuel filler

1шт.

9

L40248

HOSE,2.50" ID x 4.00"

Fuel Filler 2.50" ID x 4.00"

1шт.

10

214-263

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - hose

2шт.

11

L58025

BRACKET

- support, filler pipe, if used

1шт.

Bracket & U-bolt assy - These parts are replaced by Ref. 15A (part nbr L73711 clamp assy).

1шт.

Part of Seal Kit P/N G102412

1шт.

12

L58024

BOLT (SPREADER)

"U" BOLT - filler pipe to bracket, if used

1шт.

13

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

25-104

NUT,1/4"-20, G5

2шт.

15a

L73711

CLAMP

- filler pipe, if used

1шт.

16

L58022

STRAINER ASSY.

STRAINER - fuel, models without electric fuel pump

1шт.

17

A27862

COCK, DRAIN

VALVE - fuel drain, if used, models without electric fuel pump

1шт.

A27862 fuel drain valve - Some later units used 221-12 1/4" plug.

1шт.

Units used 221-12 1/4" plug.

1шт.

17a

221-12

PLUG,Sq Hd, 1/4"-18

- fuel drain, if used, not shown, models without electric fuel pump, Includes: Ref. 18 - 20

1шт.

222-48

ELBOW,90º, 13/16"-18 Fem x 3/8"-18 NPTF

FITTING ASSEMBLY - hose, 90 deg., at tank, models without electric fuel pump

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - fitting, models without electric fuel pump, models without electric fuel pump

1шт.

19

222-114

NUT,5/8"-24

NUT - fitting, models without electric fuel pump

1шт.

20

222-104

SLEEVE,3/8" Tube

- fitting, models without electric fuel pump

1шт.

21

L71665

FUEL TUBE,0.375" OD

TUBE - fuel tank to pump, models without electric fuel pump

1шт.

21a

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tie, tube supportl, models without electric fuel pump

1шт.

22

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- hose, models without electric fuel pump

2шт.

23

L17627

VALVE

- check, models without electric fuel pump

1шт.

24

222-14

FITTING,5/8"-24 Inv Fl x 1/4" NPT Fem

- valve, models without electric fuel pump

1шт.

25

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

FITTING - valve, models without electric fuel pump

1шт.

26

L58022

STRAINER ASSY.

STRAINER - fuel, models with electric fuel pump

1шт.

222-48

ELBOW,90º, 13/16"-18 Fem x 3/8"-18 NPTF

FITTING ASSEMBLY - hose, 90 deg., at tank, Includes: Ref. 27 - 29, models with electric fuel pump

1шт.

27

NSS

NOT SOLD SEPARAT

BODY - fitting, models with electric fuel pump

1шт.

28

222-114

NUT,5/8"-24

NUT - fitting, models with electric fuel pump

1шт.

29

222-104

SLEEVE,3/8" Tube

- fitting, models with electric fuel pump

1шт.

30

L40164

HOSE ASSY.

HOSE - tank to pump, models with electric fuel pump

1шт.

31

L11541

CABLE TIE,203.2mm L, Nylon

TIE - hose, models with electric fuel pump

4шт.

32

L52634

PUMP

- fuel, electric, figure 68), models with electric fuel pump

1шт.

33

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Models with electric fuel pump Hex, 1/4"-20 x 1 1/4", G5

2шт.

34

95-4

WASHER,1/4"

- flat, , models with electric fuel pump 1/4"

2шт.

35

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Models with electric fuel pump 1/4"

2шт.

36

25-104

NUT,1/4"-20, G5

Models with electric fuel pump 1/4"-20, G5

2шт.

38

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- hose, models with electric fuel pump

2шт.

39

L40164

HOSE ASSY.

HOSE - fuel line to injector pump, models with electric

1шт.

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

FITTING ASSEMBLY - hose, 90 deg., Includes: Ref. 40 - 42, models with electric fuel pump

1шт.

40

NSS

NOT SOLD SEPARAT

BODY - fitting, models with electric fuel pump

1шт.

41

222-104

SLEEVE,3/8" Tube

- fitting, models with electric fuel pump

1шт.

42

222-114

NUT,5/8"-24

NUT - fitting, models with electric fuel pump

1шт.

43

L57137

HOSE ASSY.

HOSE - return, injector pump to tank, models with electric fuel

1шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

ASSEMBLY - flex. type, straight, Includes: Ref. 44 - 46, models with electric fuel pump

1шт.

44

NSS

NOT SOLD SEPARAT

BODY - fitting, models with electric fuel pump

1шт.

45

87017024

TUBE NUT,1/2"-24

NUT - fitting, models with electric fuel pump

1шт.

46

222-102

SLEEVE,1/4" Tube

Models with electric fuel pump 1/4" Tube

1шт.
