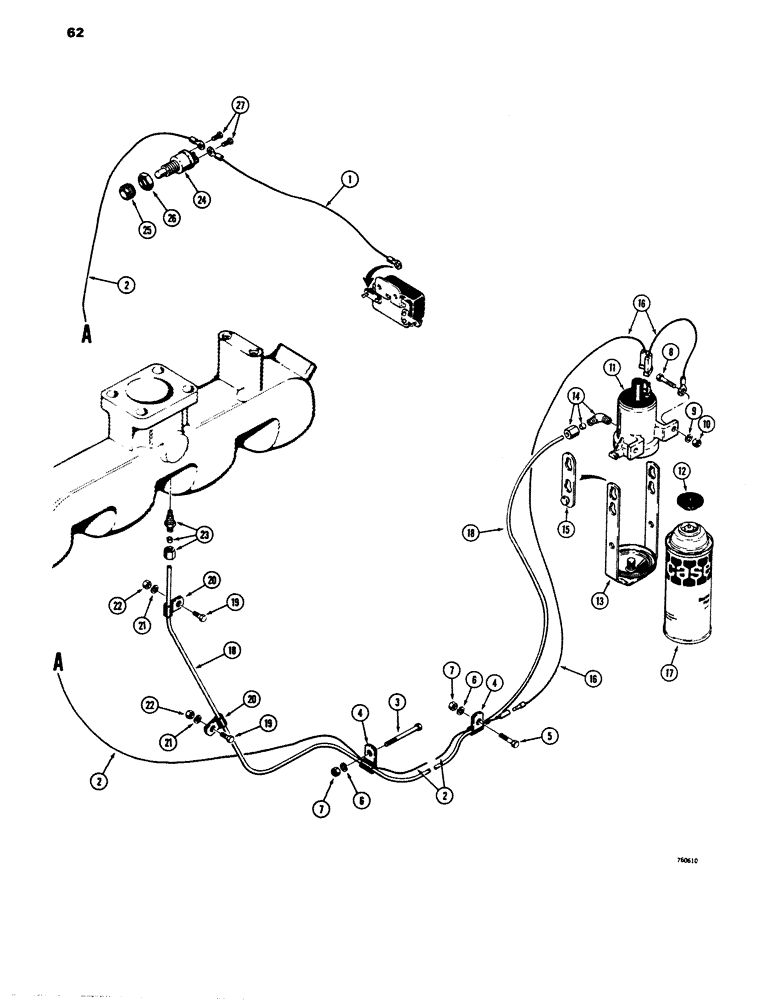

Запчасти Case 680E (062) - COLD START SYSTEM, LATE PRODUCTION (10) - ENGINE

1

L59605

WIRE - jumper, cold start, Serial Range: switch-buzzer

1шт.

2

L58842

WIRE - connecting, cold start solenoid to push button

1шт.

3

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

HHCS - 3/8" - 16 NC x 3-1/2"

1шт.

4

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- wiring

2шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

2шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

92-5

LOCK WASHER,5/16"

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" - 18 NC

2шт.

L73025

STARTING MOTOR

SOLENOID - cold start, Includes: Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

SOLENOID - cold start

1шт.

12

R30786

GASKET

- solenoid

1шт.

13

D77648

BAIL

- solenoid (Replaces D74444)

1шт.

14

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

- Solenoid 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

15

R30812

LINK

EXTENSION - bail

2шт.

16

L73023

ELECTRICAL WIRE

WIRE - solenoid

1шт.

17

B17072

START SPRAY FLUID

FLUID - starting, ether (16 oz. can)

1шт.

18

D35090

TUBE

- cold start

1шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

20

49853

TOOL

- tube

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

2шт.

23

L73024

NOZZLE CAP

NOZZLE - atomizer

1шт.

L72776

SWITCH

- push button, cold start, Includes: Ref. 24 - 27

1шт.

24

NSS

NOT SOLD SEPARAT

SWITCH - push button

1шт.

25

D73741

NUT

- hex., face

1шт.

26

H275784

JAM NUT

- jam

1шт.

27

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

- terminal

2шт.
