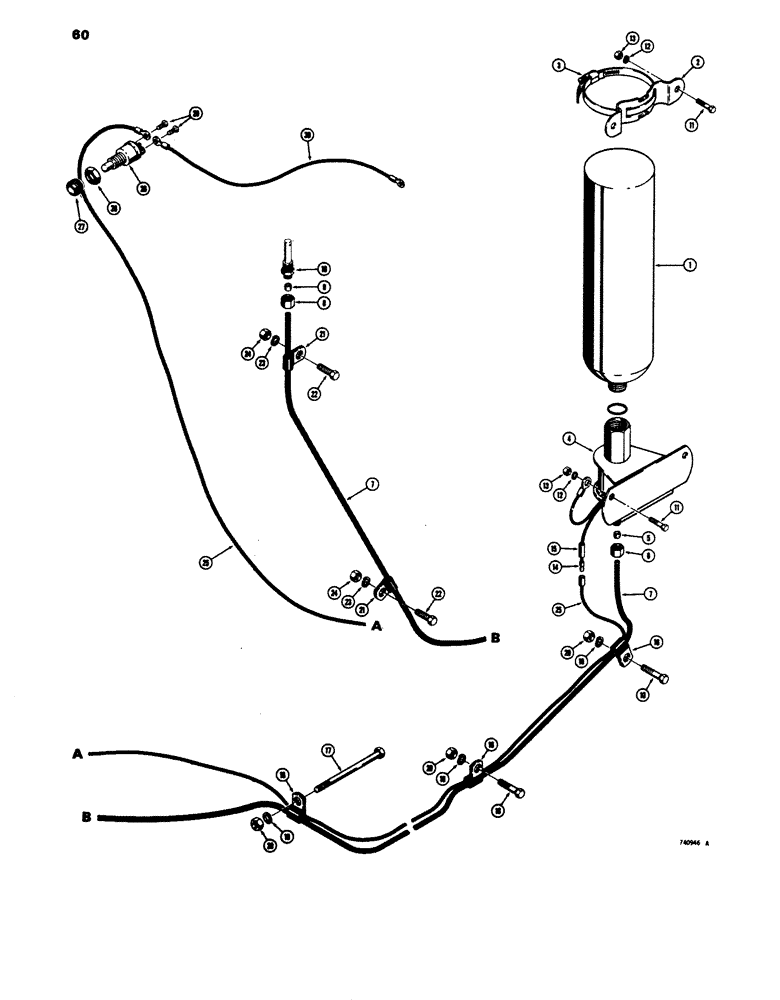

Запчасти Case 680E (060) - COLD START SYSTEM, EARLY PRODUCTION (10) - ENGINE

L53196

START SPRAY FLUID

KIT - cold starting aid, Includes: Ref. 1 - 10

1шт.

1

D55767

CYLINDER

- ether

1шт.

2

D55949

BRACKET

- clamp mounting

1шт.

3

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - tank retaining

1шт.

4

L35280

VALVE

ASSEMBLY - actuator, Includes: Ref. 5 and 6

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1шт.

L35283

PACKAGE, REPAIR

SEAL KIT - overhaul repair

1шт.

NSS

NOT SOLD SEPARAT

SEAL - O-ring, Serial Range: cylinder-valve

1шт.

NSS

NOT SOLD SEPARAT

SEAL - O-ring, armature

1шт.

NSS

NOT SOLD SEPARAT

SEAL - O-ring, retainer fitting

1шт.

NSS

NOT SOLD SEPARAT

WASHER - bumper, retainer fitting

1шт.

7

L35281

TUBE,0.125" OD x 60" L

- nylon, 1/8" (3.1 mm) O.D. x 60" (1524 mm) long

1шт.

8

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1шт.

9

222-650

SLEEVE,1/8" Tube, Comp

1шт.

10

L35282

JET

NOZZLE - manifold

1шт.

11

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

13

25-104

NUT,1/4"-20, G5

4шт.

14

L11778

CONNECTOR, ELEC

CONNECTOR - male bullet

1шт.

15

L17779

INSULATOR - connector tubing

1шт.

16

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- wiring

3шт.

17

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

HHCS - 3/8" - 16 NC x 3-1/2"

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

3шт.

20

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

3шт.

21

80049853

YOKE

- wiring

2шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

2шт.

25

L58842

WIRE - connecting, cold, Serial Range: start-button

1шт.

L72776

SWITCH

- push button, cold start, Includes: Ref. 26 - 29

1шт.

L72776 - push button cold start switch - The switch used prior to Pod cab was A30858.

1шт.

Switch used prior to Pod cab was A30858.

1шт.

26

NSS

NOT SOLD SEPARAT

SWITCH - cold start

1шт.

27

D73741

NUT

- face

1шт.

28

H275784

JAM NUT

- jam

1шт.

29

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

- terminal

2шт.

30

L59605

WIRE - jumper, cold start switch to buzzer terminal

1шт.
