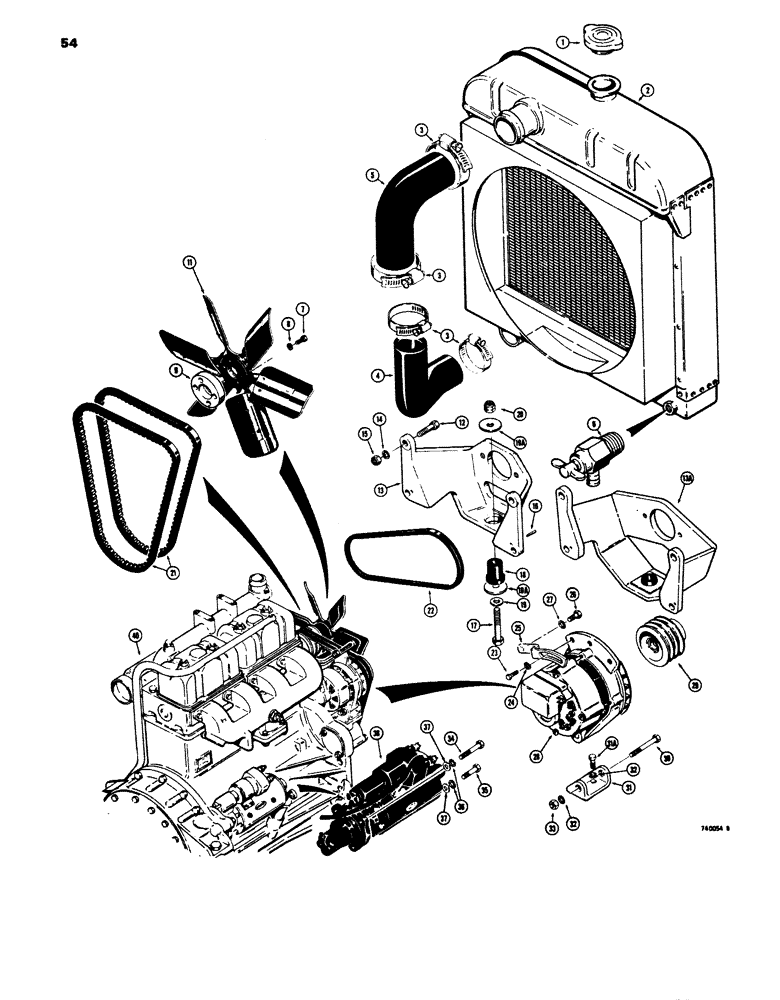

Запчасти Case 680E (054) - RADIATOR, ENGINE AND RELATED PARTS (10) - ENGINE

1

D25826

CAP

- radiator, 7 PSI (48 kPa)

1шт.

2

L72507

RADIATOR

- engine and hydraulic oil cooling, includes Ref. 6

1шт.

L72507 radiator - Shroud for radiator is part nbr N6184.

1шт.

3

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - radiator hose

4шт.

4

L55764

RADIATOR HOSE,2.50" ID, 2.62" ID x 8.30", SAE 20R4 Class SC

Lower 2.50" ID, 2.62" ID x 8.30", SAE 20R4 Class SC

1шт.

5

L55524

RADIATOR HOSE,2.50" ID x 8.70", SAE 20R4 Class SC or Class D-1

Upper 2.50" ID x 8.70", SAE 20R4 Class SC or Class D-1

1шт.

6

A23655

VALVE

- radiator drain, included in L72507 radiator

1шт.

7

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

A61283

BUSHING

SPACER - fan

1шт.

11

A15519

FAN

- suction

1шт.

11

L73972

FAN

- pusher, not shown

1шт.

L73972 pusher fan - This fan may cause overheating. Order A15519 Suction Fan.

1шт.

Components for old valves when available.

1шт.

12

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

13

L50435

BRACKET

- engine order L-78158 bracket, includes Ref. 18

1шт.

13a

L78158

BRACKET

- engine, includes Ref. 18

1шт.

14

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

15

25-1012

NUT,3/4"-10, G5

4шт.

16

139-64

PIN,1/8" x 1 1/2", Tapered

- taper, #5 x 1-1/2"

2шт.

17

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

1шт.

18

L79179

WASHER

CUSHION - rubber mount

1шт.

L79179 rubber mount cushion - Should be part nbr A19066.

1шт.

19

L74506

WASHER

- flat, 3/4", hardened

1шт.

19a

A19068

WASHER

- special, 3/4"

2шт.

20

131-1205

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

21

A59296

SET OF BELTS,0.69" W x 60.00" L

SET OF 2 BELTS , Matched, Fan and alternator drive 0.69" W x 60.00" L

1шт.

22

L55580

BELT,0.375" W

V-BELT , Brake air compressor drive, Before tractor S/N 9121647 0.375" W

1шт.

22

L72739

BELT,12.50 mm W x 1092.00 mm L

Brake air compressor drive, Tractor S/N 9121647 and after 12.50 mm W x 1092.00 mm L

1шт.

23

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Adjusting strap Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.

25

A62429

STRAP

- alternator belt adjusting

1шт.

CURVED TYPE STRAP AS ILLUSTRATED IS PART NO. L41455

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Strap mounting Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

REF

INSTRUCTION

ALTERNATOR - electrical, parts list figure 52, Includes: Ref. 29

1шт.

29

A41361

PULLEY

- alternator

1шт.

30

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

HHCS - 3/8" - 16 NC x 3-1/4"

1шт.

31

A38492

BRACKET

- alternator mounting

1шт.

31a

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

32

92-6

LOCK WASHER,3/8"

3шт.

33

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

34

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 3"

1шт.

35

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

36

92-8

LOCK WASHER,1/2"

3шт.

37

R24323

WASHER

- special, starter mounting

3шт.

38

REF

INSTRUCTION

STARTER - electrical, parts list page 47-51

1шт.

40

REF

INSTRUCTION

ENGINE - tractor, parts list pages 9 thru 45

1шт.
