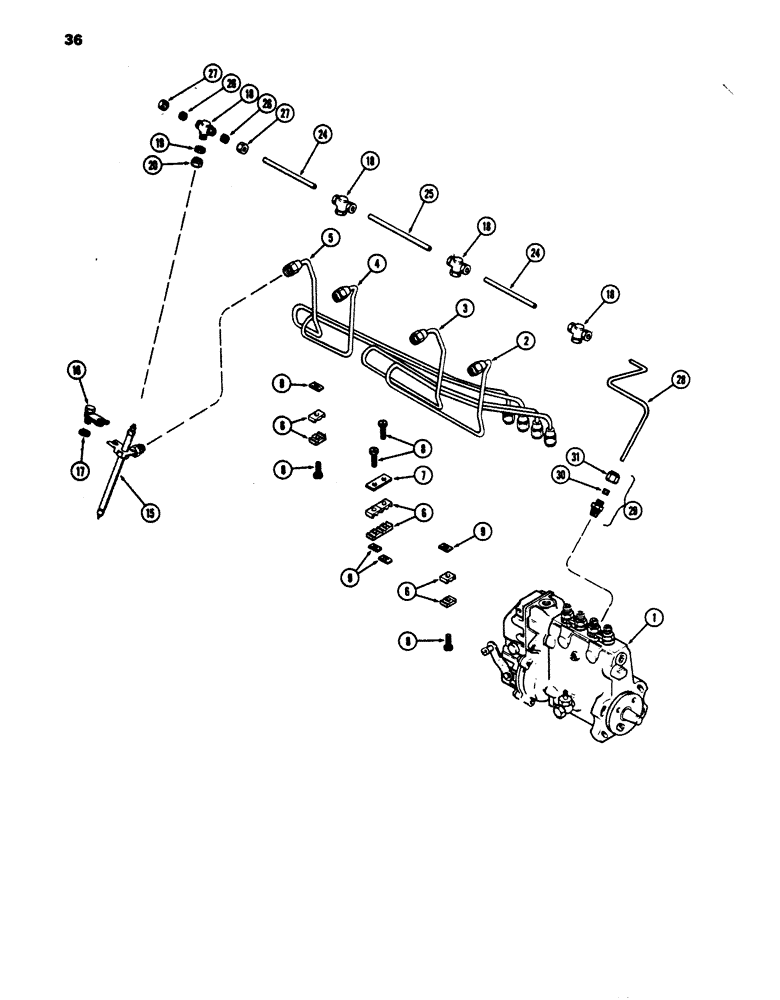

Запчасти Case 680E (036) - FUEL INJECTION SYSTEM, 336BD DIESEL ENGINE (10) - ENGINE

1

REF

INSTRUCTION

PUMP ASSY. - fuel injection (See figure 40 and 42 )

1шт.

2

A58702

TUBE

ASSY. - fuel injection, #1 cylinder

1шт.

3

A58703

TUBE

ASSY. - fuel injection, #2 cylinder

1шт.

4

A58704

TUBE

ASSY. - fuel injection, #3 cylinder

1шт.

5

A58705

TUBE

ASSY. - fuel injection, #4 cylinder

1шт.

6

A58709

BRACKET

CLAMP - injection tubes

8шт.

7

A58710

PLATE

- clamp support

1шт.

8

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- clamps (#10 x 1" N.C. sltd. hex. hd.)

4шт.

9

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10 Tinnerman

4шт.

15

REF

INSTRUCTION

NOZZLE ASSY. - fuel injector (See Figure 44 )

4шт.

16

A58695

CLAMP

ASSY. - nozzle hold down

4шт.

17

A58696

SPACER

- nozzle clamp

4шт.

18

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - inj. nozzles & leak-off lines

4шт.

19

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- inj, Serial Range: nozzle-tee

4шт.

20

A58961

NUT

- inj., Serial Range: nozzle-tee

4шт.

24

A58965

TUBE

- fuel leak-off (4-5/8" long)

2шт.

25

A58964

TUBE

- fuel leak-off (5-5/8" long)

1шт.

26

222-102

SLEEVE,1/4" Tube

8шт.

27

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

8шт.

28

A58963

TUBE

- fuel leak-off (#1 cyl. to check valve)

1шт.

29

A28098

VALVE

ASSY. - check (one way valve), Includes: Ref. 30 and 31

1шт.

30

222-102

SLEEVE,1/4" Tube

1шт.

31

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

1шт.
