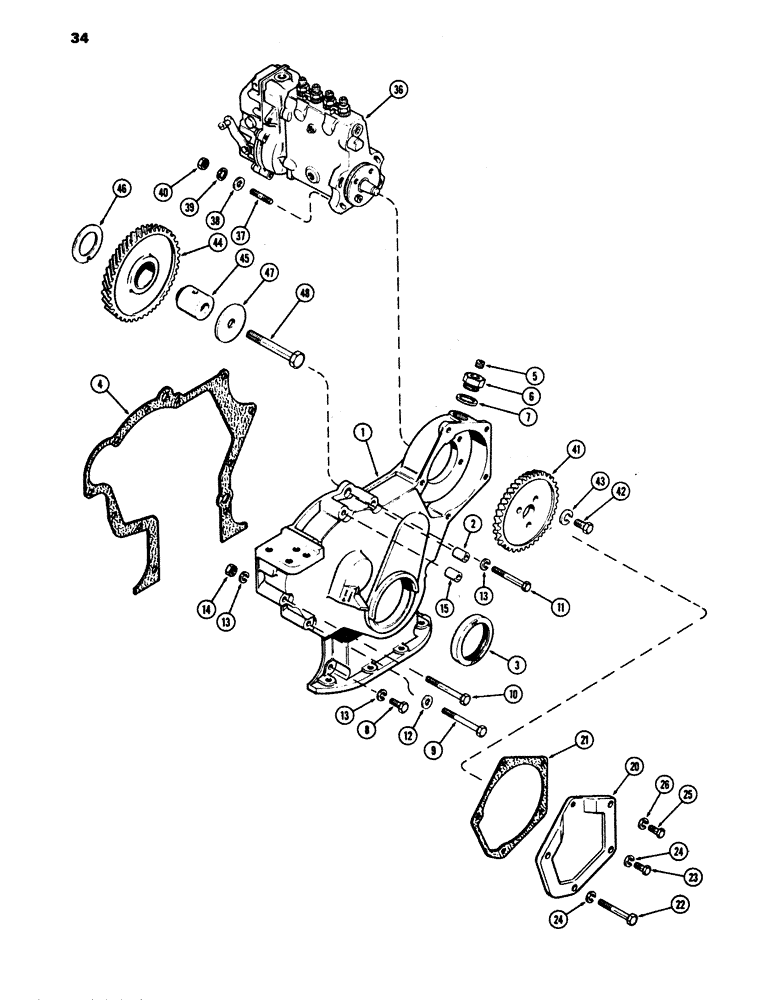

Запчасти Case 680E (034) - TIMING GEAR COVER, 336BD DIESEL ENGINE, INJECTION PUMP DRIVE (10) - ENGINE

1

58609

COVER ASSY. - timing gears, Includes: Ref. 2

1шт.

2

A58611

PIN

DOWEL - cover locating

2шт.

3

A62049

OIL SEAL

- oil, crankshaft, front (2-5/8 x 3-5/8 x 1/2")

1шт.

4

A58612

GASKET

-, Serial Range: cover-block

1шт.

5

A18550

PLUG

- timing window

1шт.

6

221-843

PLUG,Hex Soc, 3/8"-18

- (3/8" P.T., hex. sckt. hd.)

1шт.

7

A58613

SEALING WASHER

GASKET - plug (1 x 1-1/4 x 1/16" nylon)

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

9

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- cover (3/8 x 2-1/2" N.C. hex.)

2шт.

10

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- cover (3/8 x 3-1/2" N.C. hex.)

1шт.

11

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- cover (3/8 x 3-3/4" N.C. hex.)

2шт.

12

195-25

WASHER,3/8"

- cover bolts (3/8 x 13/16 x 1/16")

2шт.

13

92-6

LOCK WASHER,3/8"

9шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

15

A19774

BUSHING

SPACER - alternator pry point

1шт.

20

A61053

COVER

- fuel pump gears

1шт.

21

A58615

GASKET

- cover

1шт.

22

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- cover (3/8 x 3-1/2" N.C. hex)

2шт.

23

A150118

BOLT

- cover (3/8 x 1-1/2" N.C. hex.) (Head drilled for anti-tamper wire)

2шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Cover Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

26

92-5

LOCK WASHER,5/16"

1шт.

36

REF

INSTRUCTION

PUMP ASSY. - fuel injection (See Figure 40 and 42 ), pump drive

1шт.

37

A58689

STUD

- pump mounting (3/8" N.C. x 1-7/8"), injection drive

3шт.

37

A142092

STUD

- pump mounting (3/8" N.C. x 1-7/8") (Drilled for anti-tamper wire), injection drive

1шт.

38

A57470

WASHER

- 3/8 x 11/16 x 16 ga, injection pump drive

4шт.

39

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Injection pump drive Int Tooth, 3/8"

4шт.

40

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex (Used w/A58689 stud), injection pump drive

3шт.

40

25-126

SLOTTED NUT,3/8"-16, G5

NUT - 3/8" N.C. hex sltd. (Used w/A142092 stud), injection pump drive

1шт.

41

A58693

GEAR

- injection pump drive

1шт.

42

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Drive gear to hub, injection pump Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

43

92-6

LOCK WASHER,3/8"

injection pump drive 3/8"

3шт.

44

A62542

GEAR

ASSY. - idler, w/bushing, injection pump drive

1шт.

45

A58690

SHAFT

- idler, injection pump drive

1шт.

46

A58691

WASHER

- thrust, idler gear, injection pump drive

1шт.

47

A58692

PLATE

- thrust, idler shaft, injection pump drive

1шт.

48

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

Idler shaft, injection pump drive Hex, 1/2"-13 x 4 1/4", G5

1шт.
