(030) - OIL FILTER AND COOLER, 336BD DIESEL ENGINE

Запчасти Case 680E (030) - OIL FILTER AND COOLER, 336BD DIESEL ENGINE (10) - ENGINE

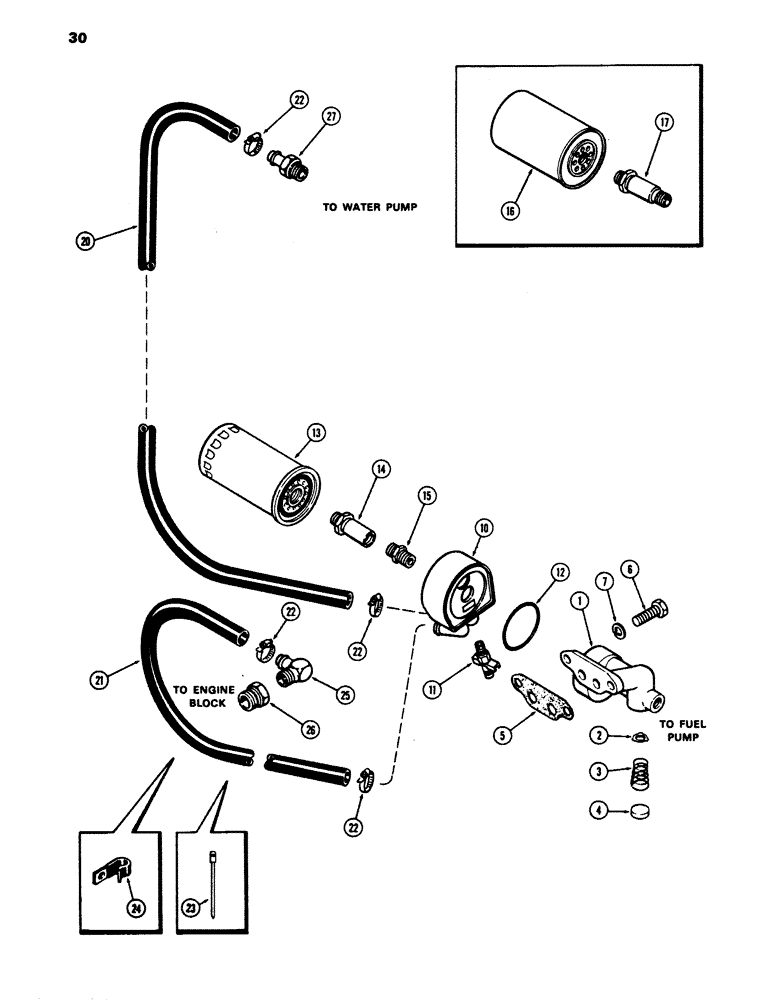

Схема запчастей Case 680E - (030) - OIL FILTER AND COOLER, 336BD DIESEL ENGINE (10) - ENGINE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A58752

BASE

ASSY. - oil filter and cooler, Includes: Ref. 2 - 4

1шт.

2

A58754

VALVE

- relief

1шт.

3

A58755

FILTER

SPRING - relief valve

1шт.

4

41-1016

PLUG,Cup, 1"

- relief valve (1" cup type)

1шт.

5

A58756

OIL PAN GASKET SET

- filter, Serial Range: base-block

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

10

A66295

COOLER

- oil

1шт.

11

217-107

VALVE

DRAINCOCK - cooler (discard 1/8" pipe plug in cooler)

1шт.

12

A66410

SEALING RING

- oil, cooler to base (2-5/8 x 3 x 3/16" sq.)

1шт.

13

A75294

ENGINE OIL FILTER

FILTER - oil (with 1"-12 N.F. threads) (1st used eng. ser. no. 10018987)

1шт.

14

A66992

ADAPTER

- A75294 filter to A58757 adapter (1" - 12 N.F. threads and 3/4"-16 N.F. threads)

1шт.

15

A58757

ADAPTER

- A66992 adapter to A66295 cooler (3/4"-16 N.F. threads and 3/4"-10 N.C. threads)

1шт.

16

A58758

FILTER, ELEMENT

FILTER - oil (with 3/4"-16" N.F. threads) (Used prior to eng. ser. no. 10018987)

1шт.

17

A66296

ADAPTER

- A58757 filter to A66295 cooler (3/4"-16 N.F. threads and 3/4"-10 N.C. threads)

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE - water inlet (43" long)(Order A42610)

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE - water outlet (25" long)(Order A42610)

1шт.

A42610

LARGE HOSE

HOSE - (5/8" I.D. x 1" O.D. x 50 ft.)(Cut to length req.)

1шт.

22

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - hose (1/2" to 5/8")

4шт.

23

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - hose tie

1шт.

24

A59718

CLAMP

- hose

1шт.

25

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

connector - hose (90 deg.)

1шт.

26

221-60

TUBE

REDUCER - (in, Serial Range: block)(3/4"-1/2")

1шт.

27

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose (to water pump)(1/2" P.T.) (Used w/A138498 water pump body)(See Figure 8)

1шт.

27

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

CONNECTOR - hose, (to water pump)(3/4" P.T.) (Used w/A59220 water pump body)(See Figure 8)

1шт.
