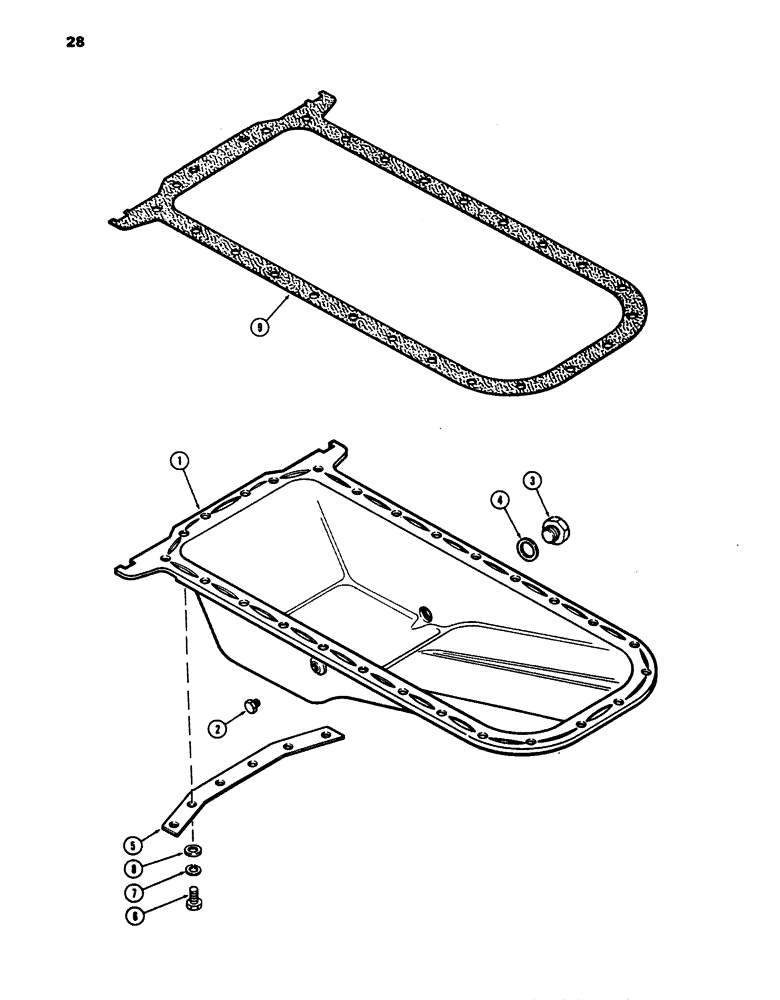

Запчасти Case 680E (028) - OIL PAN, 336BD DIESEL ENGINE (10) - ENGINE

1

A62711

PAN

ASSY. - oil, Includes: Ref. 2

1шт.

2

221-664

PLUG,Hex Hd, 1/2"-14

- (1/2" P.T., hex. hd.)

1шт.

3

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

4

A27968

RING

- drain plug, (7/8 x 1-1/8 x 1/16" copper)

1шт.

5

A58932

STRAP

- reinforcing

1шт.

6

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

24шт.

6

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - breather tube brkt. (3/8 x 1-1/2 N.C. hex., sems)

2шт.

7

92-6

LOCK WASHER,3/8"

24шт.

8

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

32шт.

9

NSS

NOT SOLD SEPARAT

GASKET - oil pan (See Figure 33A)

1шт.
