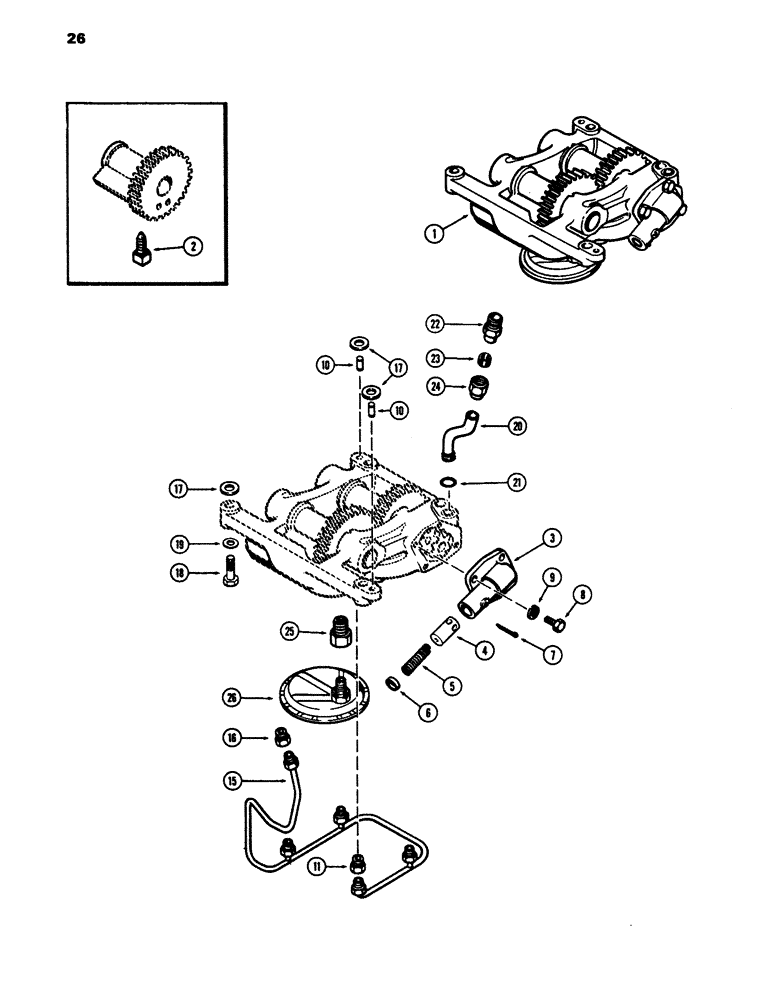

Запчасти Case 680E (026) - BALANCER AND OIL PUMP, 336BD DIESEL ENGINE (10) - ENGINE

1

A66168

PUMP, ENGINE OIL

BALANCER ASSY. - engine, Includes: Ref. 2 - 11

1шт.

The Dowel pin hole and dowel pin are no longer required and have been eliminated from these parts. The balancer gear is now attached to the crankshaft with bolts (4 of A155438), hardened washers (4 of A50820) and nuts (4 of A51904). The bolts are torqued to 50-55 ft./lbs. (68-75 NM) per CE Service Bulletin 38-81.

1шт.

A66168 engine balancer assy - There are 2 small gears located behind item 3 oil pump cover. The part nbrs for these gears are A22564 and A22555. The larger balancer gears are NSS.

1шт.

2

181-675

SET SCREW,Sq Hd, 1/2"-13 x 1"

SCREW - set (1/2 x 1-1/4" N.C. sq. hd. dog pt.)

4шт.

3

A61129

COVER

- oil pump

1шт.

4

A65083

VALVE

- oil pump relief

1шт.

5

A59111

SPRING

- relief valve (2-1/16" free length)

1шт.

6

41-1011

PLUG,Cup, 11/16"

- relief valve (11/16" cup type)

1шт.

7

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

8

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

8

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- (5/16 x 1-3/8" N.C. hex.)

1шт.

9

92-5

LOCK WASHER,5/16"

4шт.

10

A8134

PIN

- dowel, balancer locating

2шт.

11

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - manifold

4шт.

15

A62002

MANIFOLD

- balancer oil supply

1шт.

16

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - manifold inlet

1шт.

17

G49401

SHIM,.005" Thk

Mounting .005" Thk

1шт.

17

G49402

SHIM,.010" Thk

Mounting .010" Thk

1шт.

18

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- balancer mtg. (1/2 x 2-1/2" N.C. hex.)

2шт.

18

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

Balancer mounting Hex, 1/2"-13 x 3 1/4", G5

2шт.

19

A150672

WASHER

- 1/2 x 7/8 x 1/8"

4шт.

20

A61130

TUBE

-, Serial Range: pump-block

1шт.

21

A64436

O-RING,0.549" ID x 0.755" OD

- tube (9/16 x 3/4 x 3/32")

1шт.

22

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY, Includes: Ref. 23 and 24

1шт.

23

222-106

SLEEVE,5/8" Tube

- (for ) 5/8" Tube

1шт.

24

222-116

TUBE NUT,1"-18

NUT - (for 5/8" tube)

1шт.

25

A21235

FITTING

ADAPTER -, Serial Range: screen-balancer

1шт.

26

A22590

FILTER SCREEN

SCREEN ASSY. - oil inlet

1шт.

Per CE Service Bulletin 5-79, conversion from balancer to front mounted oil pump on 336 engines used on 680E units is an unauthorized change.

1шт.

For service use L109871 solenoid and A31060 ground wire for starting circuit, cab circuit uses S219533 solenoid.

1шт.
