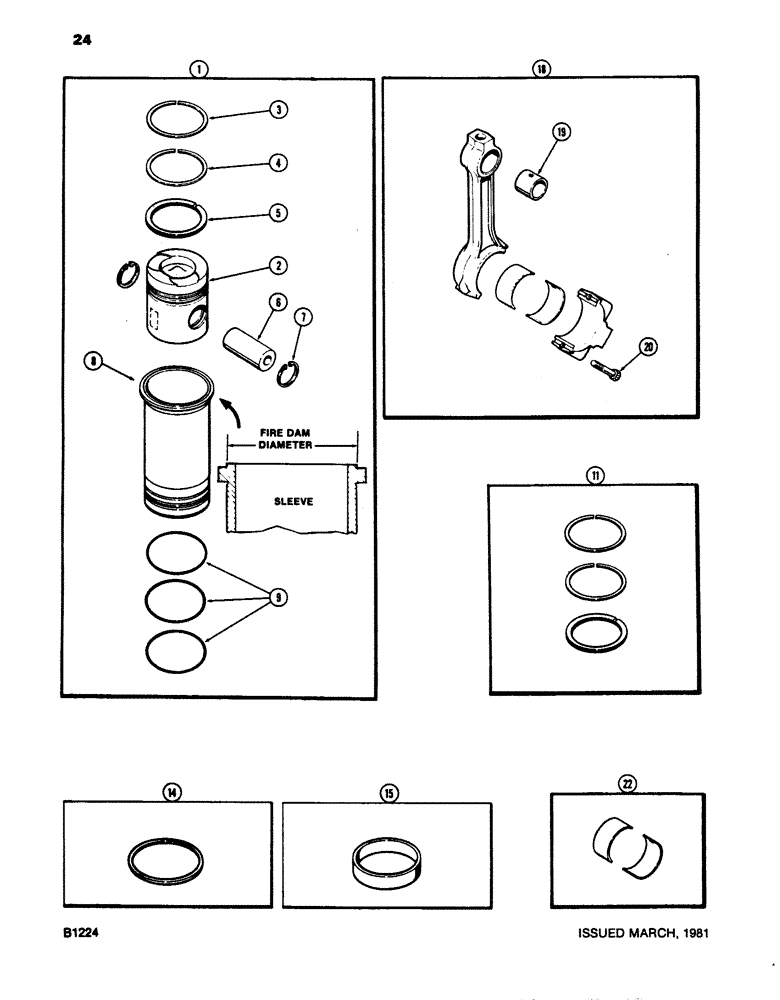

Запчасти Case 680E (024) - PISTONS AND SLEEVES, WITH 5.189" TO 5.194" FIRE DAM DIAMETER SLEEVE, 336BD DIESEL ENGINES (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A156931
KIT
PISTON AND SLEEVE ASSEMBLY - engine (Set of 2)
2шт.
2
A66531
PISTON
PISTON - cylinder
2шт.
3
NSS
NOT SOLD SEPARAT
RING - compression (1st groove)(Order Ref. 11)
2шт.
4
NSS
NOT SOLD SEPARAT
RING - compression (2nd groove)(Order Ref. 11)
2шт.
5
NSS
NOT SOLD SEPARAT
RING - oil control (3rd groove)(Order Ref. 11)
2шт.
6
A140607
PISTON PIN,41.27mm OD x 93.34mm L
PIN - piston
2шт.
7
D27833
SNAP RING,1.625", Int, #162
RING snap, , piston pin 1.625", Int, #162
4шт.
8
A153638
SLEEVE CYLINDER
SLEEVE - cylinders (With 3 grooves)
2шт.
NSS
NOT SOLD SEPARAT
SLEEVE - cylinder (2 groove) Order 3 groove sleeve A153638
1шт.
9
A144667
O-RING,4.734" ID x 5.012" OD x 0.0139"
O-RING - sleeve
6шт.
11
A44060
RING
RING SET - piston re-ring (Set of 1)
4шт.
14
A148553
SHIM
SHIM - sleeve, 0.010" (0.254mm)(Repairs Only)
1шт.
14
A148554
SHIM
SHIM - sleeve, 0.005" (0.127mm)(Repairs Only)
1шт.
15
A150327
BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L
BUSHING - sleeve (Repairs Only)
1шт.
A150328
ADHESIVE
LOCTITE - tube (Not Shown)
1шт.
18
A62954
ROD, CONNECTING
ROD ASSEMBLY - connecting, Includes: Ref. 19 and 20
4шт.
AR62954
REMAN-CONNECTING ROD
Remanufactured, CONNECTING ROD, N.A. Only
4шт.
AC62954
CORE-ROD CONNECTING
CORE-CONNECTING ROD Return Number, N.A. Only
1шт.
19
A61241
BUSHING,40.75mm ID x 44.56mm OD x 34.54mm L
BUSHING - piston pin, connecting rods
1шт.
20
A65757
FLANGE BOLT,1/2" - 20 x 2.31"
BOLT - connecting rod bearing cap
2шт.
22
A43173
BEARING LINER
INSERT - connecting rod bearing (Standard)(Set of 2)
4шт.
22
A43174
BEARING LINER
INSERT - connecting rod bearing, 0.002" (0.051mm) undersize (Set of 2)
4шт.
22
A43175
BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W
INSERT - connecting rod bearing, 0.010" (0.254mm) undersize (Set of 2)
4шт.
22
A43176
BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W
INSERT - connecting rod bearing, 0.020" (0.508mm) undersize (Set of 2)
4шт.
22
A43177
BEARING LINER
INSERT - connecting rod bearing, 0.030" (0.762 mm) undersize (Set of 2)
4шт.
