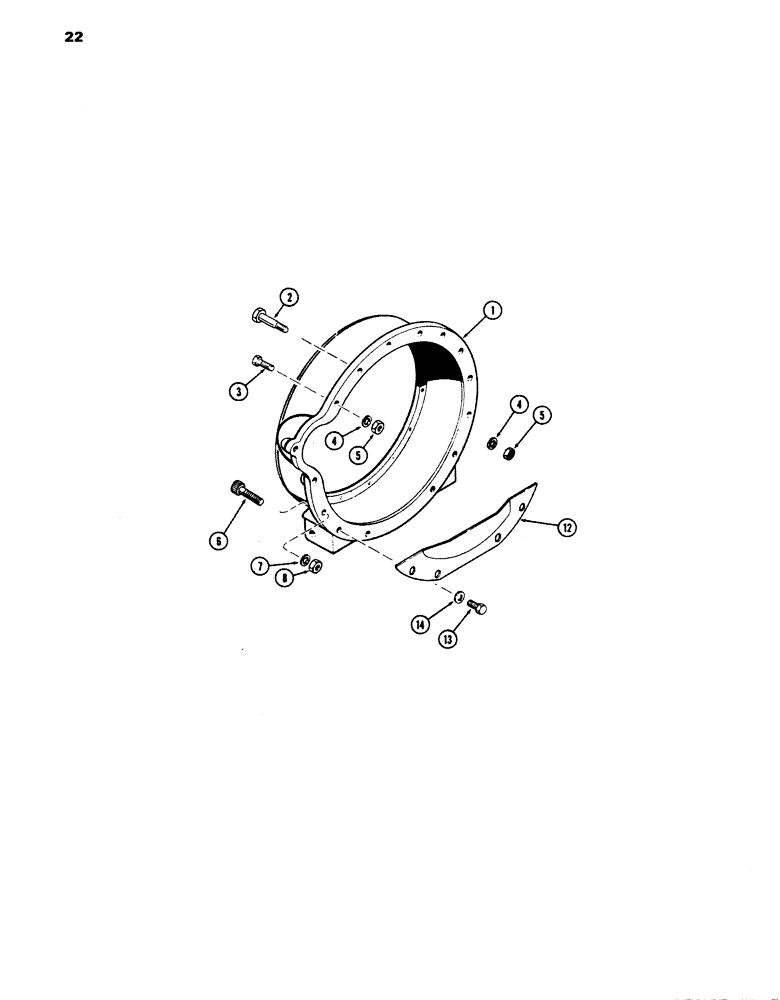

Запчасти Case 680E (022) - FLYWHEEL HOUSING, 336BD DIESEL ENGINE (10) - ENGINE

1

A150268

HOUSING

- flywheel (Replaces A9397)

1шт.

2

A61041

STEP BOLT

BOLT - dowel (1/2 x 2-7/16" N.C. hex.)

1шт.

2

A61040

STEP BOLT

BOLT - dowel (1/2 x 3" N.C. hex.)

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(1/2 x 1-5/8" N.C. hex.) (13-826)

3шт.

13-826 bolt - Replaced by 13-824 (1/2" x 1 1/2" bolt).

1шт.

3

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- Replaces (1/2 X 2-1/4" N.C. hex.) ( 13-836)

3шт.

13-836 bolt - Replaced by 13-840 (1/2" x 2 1/2" bolt).

1шт.

4

92-8

LOCK WASHER,1/2"

8шт.

5

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

5шт.

6

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

- (3/4 x 3" N.C. 12 pt hd.)

2шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

25-1012

NUT,3/4"-10, G5

2шт.

12

A58931

GUARD

SHIELD - dust, flywheel

1шт.

13

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- (1/2 x 3/4" N.C. hex.)

2шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

14

92-8

LOCK WASHER,1/2"

4шт.
