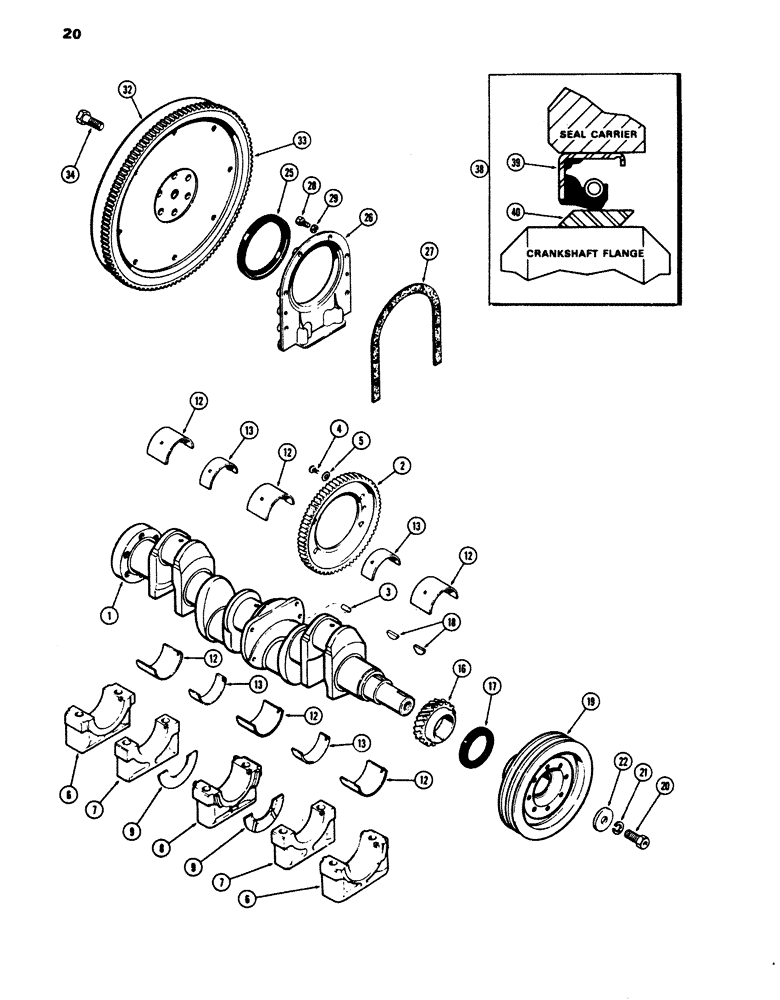

Запчасти Case 680E (020) - CRANKSHAFT AND FLYWHEEL, 336BD DIESEL ENGINE, WEAR SEAL KIT (10) - ENGINE

1

A58889

CRANKSHAFT

1шт.

The Dowel pin hole and dowel pin are no longer required and have been eliminated from these parts. The balancer gear is now attached to the crankshaft with bolts (4 of A155438), hardened washers (4 of A50820) and nuts (4 of A51904). The bolts are torqued to 50-55 ft./lbs. (68-75 NM) per CE Service Bulletin 38-81.

1шт.

#17D- PICTURED IN W36 BOOK D1267 - PG 7-371- KIT INCLUDES VALVE SPRING, STEM O-RING, SEAL O-RING, VALVE POPPET, POPPET SCREW ALL NSS 10-14-96 PJD

1шт.

L55603 cable - Some later units used part nbr L73388.

1шт.

2

A148425

GEAR

- balancer drive (Replaces A62450)

1шт.

3

A8134

PIN

- balancer gear locating (3/8 x 3/4")

1шт.

4

A146984

SCREW,Flat Skt , 3/8" - 24 x 7/8", Alloy Steel

- (3/8 x 7/8" N.F. flat sckt. hd.)(Rpl. A23583)

4шт.

5

193-56

LOCK WASHER,Ext Csk Tooth, 3/8"

WASHER, LOCK, Ext Csk Tooth, 3/8"

4шт.

6

A58783

BEARING CAP

CAP - main bearing, front and rear (wide)

2шт.

7

A58784

BEARING CAP

CAP - main bearing, intermediate (narrow)

2шт.

8

A58785

BEARING CAP

CAP - main bearing, thrust, center (wide)

1шт.

9

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust, center bearing (Standard)(0.185")

2шт.

9

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust, center bearing (Oversize)(0.191")

2шт.

12

A43163

BEARING LINER

LINER SET - main brg., wide (Std.)(Set of 2)

3шт.

12

A43164

BEARING LINER

LINER SET - main brg., wide (-.002")(Set of 2)

3шт.

12

A43165

BEARING LINER

LINER SET - main brg., wide (-.010")(Set of 2)

3шт.

12

A43166

BEARING LINER

LINER SET - main brg., wide (-.020")(Set of 2)

3шт.

12

A43167

BEARING LINER

LINER SET - main brg., wide (-.030")(Set of 2)

3шт.

13

A43158

BEARING LINER

LINER SET - main brg., narrow (Std.)(Set of 2)

2шт.

13

A43159

BEARING LINER

LINER SET - main brg., narrow (-.002")(Set of 2)

2шт.

13

A43160

BEARING LINER

LINER SET - main brg., narrow (-.010")(Set of 2)

2шт.

13

A43161

BEARING SET

LINER SET - main brg., narrow (-.020")(Set of 2)

2шт.

13

A43162

BEARING LINER

LINER SET - main brg., narrow (-.030")(Set of 2)

2шт.

16

A66404

GEAR

- crankshaft

1шт.

17

A62049

OIL SEAL

- oil, front (2-5/8 x 3-5/8 x 1/2")

1шт.

18

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear & pulley #C, 5/16" x 1 1/8", HT

2шт.

19

A66621

PULLEY

- fan drive

1шт.

20

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

- pulley (5/8 x 1-1/2" N.F. hex., sckt. hd.)

1шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22

A27903

WASHER

- pulley (21/32 x 2-1/8 x 1/4")

1шт.

25

A62050

OIL SEAL

- oil, rear (4-3/4 x 5-3/4 x 1/2")(See Ref. 38)

1шт.

26

A57457

RETAINER

- rear oil seal

1шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Retainer Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

29

92-6

LOCK WASHER,3/8"

6шт.

32

A66388

FLYWHEEL

ASSY

1шт.

33

A27920

GEAR

- ring, starter

1шт.

34

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

- flywheel to crankshaft (5/8 x 1-1/2" N.F. hex.)

6шт.

38

A43194

KIT

WEAR SEAL KIT - oil, crankshaft, rear, Includes: Ref. 39 and 40

1шт.

39

NSS

NOT SOLD SEPARAT

SEAL- oil, rear (4-7/8 x 5-3/4 x 1/2"), wear kit

1шт.

40

NSS

NOT SOLD SEPARAT

SLEEVE - wear (4-3/4 x 4-7/8 x 9/16"), seal kit

1шт.
