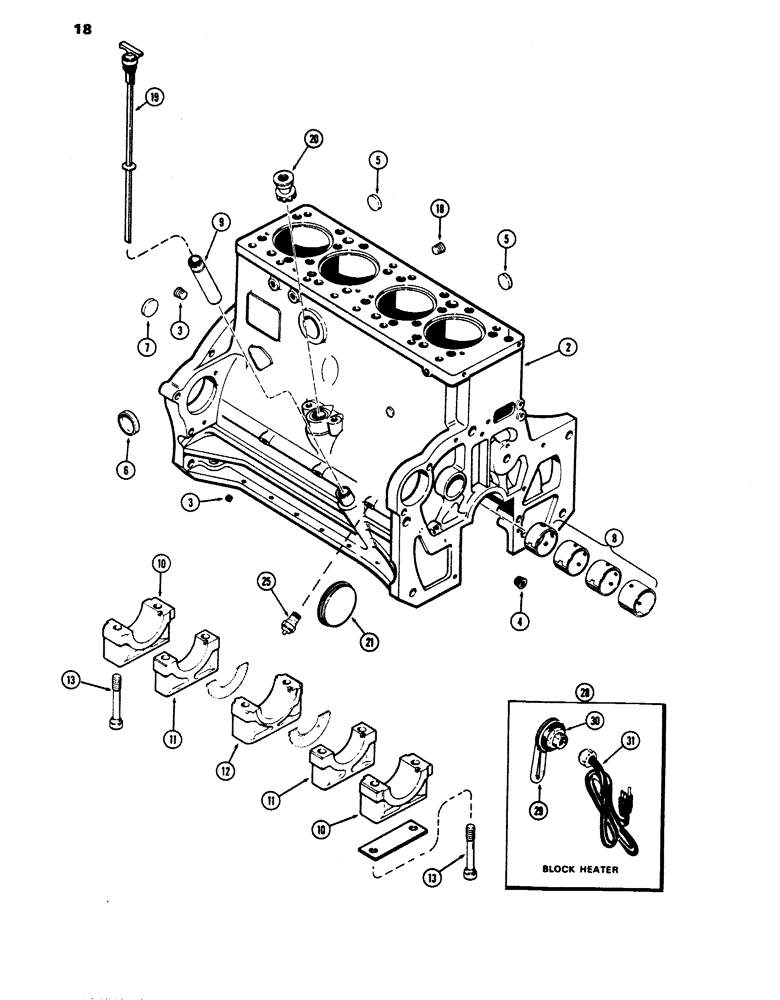

Запчасти Case 680E (018) - CYLINDER BLOCK, 336BD DIESEL ENGINE, BLOCK HEATER (10) - ENGINE

A44056

BLOCK

ASSY. - short (Incl. stripped block, camshaft, connecting rods and brgs., piston assy., crankshaft and brgs. and timing gears), Includes: Ref. 2 - 13

1шт.

A157145 - new pump for A336BD/BDT engine with balancer.

1шт.

A44056 short block assy - This nbr subbed to A150862 short block which is no longer available. Order A150863 stripped block and components.

1шт.

2

A44057

BLOCK

ASSY. - stripped (Casting No. A58504), Includes: Ref. 3 - 13

1шт.

3

221-1849

PLUG

- oil gallery (1/8" P.T., sckt. hex. hd.)

4шт.

4

221-1843

PLUG

- oil gallery (3/8" P.T., hex. sckt. hd.)

4шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery (1-3/8" cup type)

2шт.

6

A58569

PLUG,Cup, 2", Stainless

- heater hole (2" cup type)

1шт.

7

A24361

PLUG

- camshaft hole (2-3/8" cup type)

1шт.

8

A23577

KIT

BUSHING KIT - camshaft

1шт.

9

A34540

TUBE

- oil filler and dipstick

1шт.

10

A58783

BEARING CAP

CAP - main bearing, front and rear (wide)

2шт.

11

A58784

BEARING CAP

CAP - main bearing, intermediate (narrow)

2шт.

12

A58785

BEARING CAP

CAP - main bearing, thrust, center (wide)

1шт.

13

A58566

STEP BOLT

BOLT - bearing caps (5/8 x 4-1/2" N.C. spec.)

10шт.

18

221-845

PLUG,Hex Soc, 3/4"-14

- (3/4" P.T., hex. sckt. hd.)

1шт.

19

A138330

DIPSTICK

- oil level (Replaces A20739)

1шт.

20

A34266

DRIVE

ASSY. - tachometer

1шт.

21

41-1052

PLUG,Cup, 3 1/4"

COVER - pump mtg. hole (3-1/2" cup type plug)

1шт.

5

A66737

SWITCH, PRESSURE

SWITCH - oil pressure

1шт.

28

A44812

HEATER

ASSY. - block, Includes: Ref. 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

ELEMENT - heater, block

1шт.

30

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- element (1-3/4 x 2 x 1/8"), block heater

1шт.

31

A44813

CABLE EXTENSION

CORD - heater (Replaces A44713), block heater

1шт.
