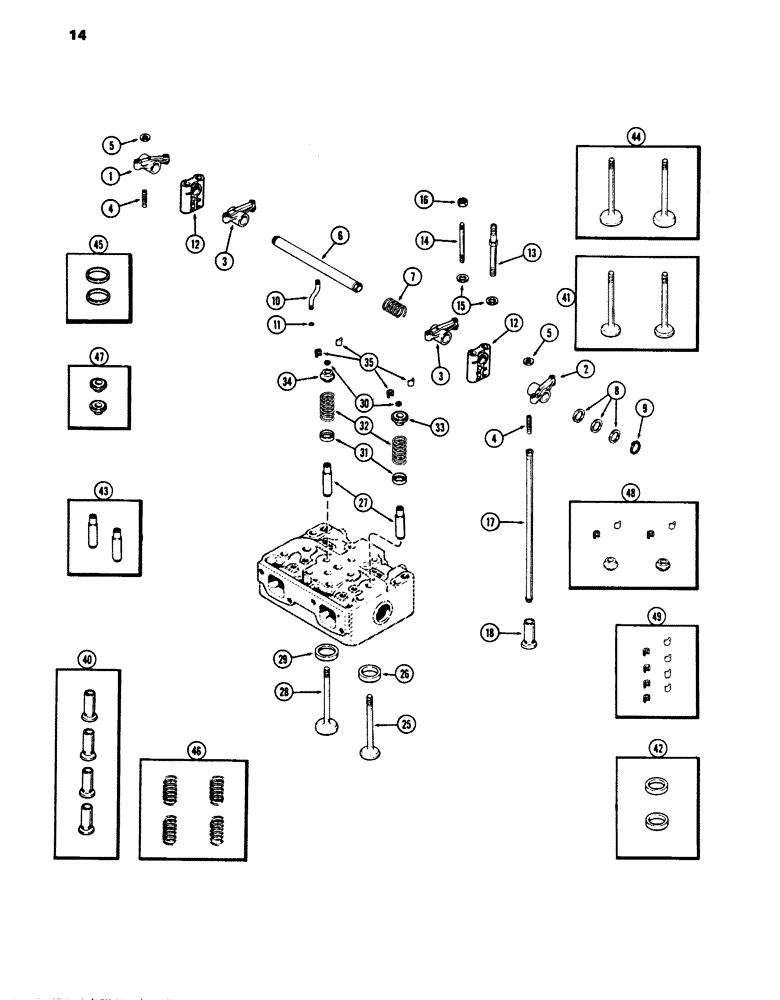

Запчасти Case 680E (014) - VALVE MECHANISM, 336BD DIESEL ENGINE (10) - ENGINE

1

A58655

ARM

- rocker, exhaust valve, 1st and 3rd cyl

2шт.

2

A58656

ARM

- rocker, exhaust valve, 2nd and 4th cyl

2шт.

3

A58654

ARM

- rocker, intake valve

4шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting, rocker arm

8шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- lock, adj. screw (3/8" N.F. hex., jam)

8шт.

6

A57532

SHAFT

- rocker arm

2шт.

7

A27877

SPRING

- rocker shaft

2шт.

8

A27878

WASHER

- rocker shaft (29/32 x 1-5/16 x 1/32")

1шт.

9

B18206

SNAP RING,#87, Ext

RING snap, , rocker shaft #87, Ext

4шт.

10

A58657

TUBE

- oil, rocker shaft

2шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- oil tube (3/16 x 5/16 x 1/16")

2шт.

12

A61128

BRACKET

- rocker arm shaft

4шт.

13

A67121

STUD

- bracket (7/16" N.C. x 6-7/16")

4шт.

14

A58659

STUD

- bracket (7/16" N.C. x 4-5/16")

4шт.

15

195-29

WASHER,7/16"

- (15/32 x 15/16 x 1/16")

8шт.

16

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex

4шт.

17

A141841

ROD

ASSY. - push (Replaces A58596)

8шт.

18

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order Ref. 40)

8шт.

25

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order Ref. 41)

4шт.

26

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order Ref. 42)

4шт.

27

NSS

NOT SOLD SEPARAT

GUIDE - intake and exhaust valves (Order Ref. 43)

8шт.

28

NSS

NOT SOLD SEPARAT

VALVE - intake (Order Ref. 44)

4шт.

29

NSS

NOT SOLD SEPARAT

INSERT - intake valve seat (Order Ref. 45)

4шт.

30

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

8шт.

31

A66328

SEAT

- valve springs

8шт.

32

NSS

NOT SOLD SEPARAT

SPRING - valves (Order Ref. 46)

8шт.

33

NSS

NOT SOLD SEPARAT

ROTO CAP - exhaust valve (Order Ref. 47)

4шт.

34

NSS

NOT SOLD SEPARAT

RETAINER - intake valve (Order Ref. 48)

4шт.

35

NSS

NOT SOLD SEPARAT

LOCK - valve springs (Order Ref. 49)

16шт.

40

A21653

KIT

LIFTER KIT - push rod (Set of 4)(Standard)(0.810" O.D.)

2шт.

40

A22463

KIT

LIFTER KIT - push rod (Set of 4)(Oversize)(0.819" O.D.)

2шт.

41

A41753

VALVE

KIT - exhaust (Set of 2)

2шт.

42

A44576

INSERT

KIT - exhaust valve seat (Set of 2)

2шт.

43

A41781

GUIDE

KIT - intake and exhaust valves (Set of 2)

4шт.

44

A41754

VALVE

KIT - intake (Set of 2)

2шт.

45

A42259

INSERT

KIT - intake valve seat (Set of 2)

2шт.

46

A42895

SPRING

KIT - valves (Set of 4)

2шт.

47

A44658

COIL

ROTO CAP KIT - exhaust valves (Set of 2)

2шт.

48

A44645

KIT

RETAINER KIT - intake valves (Set of 2 w/locks)

4шт.

49

A40352

LOCK

KIT - valve spring keepers (Set of 8)

2шт.
