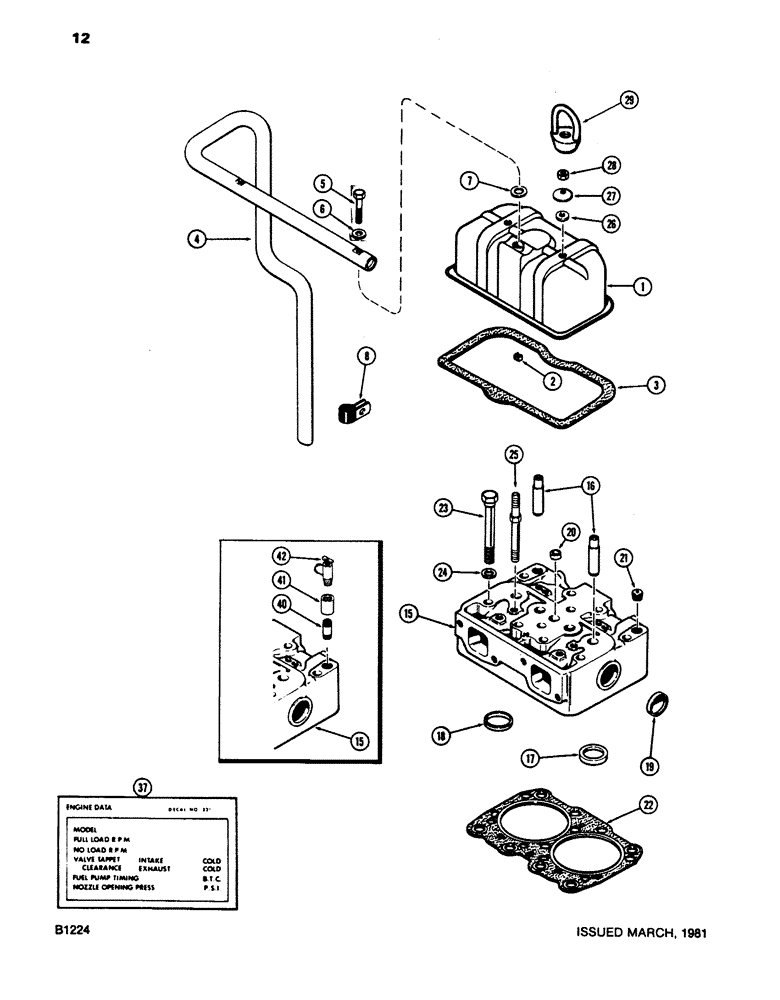

Запчасти Case 680E (012) - CYLINDER HEAD AND COVER, 336 BD DIESEL ENGINE (10) - ENGINE

1

A58929

COVER

COVER ASSEMBLY - cylinder head, Includes Ref: 2

2шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" NC Tinnerman

1шт.

3

A65734

CYLINDER HEAD GASKET

GASKET - COVER

2шт.

4

A64994

TUBE

TUBE - breather

1шт.

5

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

BOLT, , Tube to cover Hex, 1/4"-20 x 2 1/2", G5

2шт.

6

A34133

GASKET

GASKET - tube, upper

2шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET - tube, lower

5шт.

8

D34033

CLAMP

CLAMP - breather tube (to flywheel housing)

1шт.

15

A66709

HEAD

HEAD ASSEMBLY - cylinder (Replaces A60558), Includes Ref: 16 - 20

2шт.

15

AR66686

REMAN-CYLINDER HEAD

Remanufactured Cylinder Head

2шт.

15

AC66686

CORE-CYLINDER HEAD

Return Number

2шт.

16

A41783

GUIDE

GUIDE - intake and exhaust valves

4шт.

17

A60557

INSERT

INSERT - exhaust valve seat

2шт.

18

A66192

INSERT

INSERT - intake valve seat

5шт.

19

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - 1-3/8" (41.3 mm) cup type

2шт.

20

A58620

PLUG,Cup, 3/4", Stainless

PLUG - 3/4" (19.1 mm) cup type

3шт.

21

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - cylinder head (3/8" PT, hex socket head)

4шт.

22

REF

INSTRUCTION

GASKET - cylinder head (See figure 32)

2шт.

23

A62732

STEP BOLT

BOLT - cylinder head (5/8 x 5-5/8" NC hex)

20шт.

24

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt

20шт.

25

A67121

STUD

STUD - cylinder head cover and rocker arm bracket (7/16" NC x 6-7/16")

4шт.

26

A23684

GASKET

GASKET - cover

4шт.

27

A23683

WASHER

WASHER - cover (dished)

4шт.

28

25-107

NUT,7/16"-14, G5

NUT - 7/16" NC hex

2шт.

29

A60567

EYE

EYE - engine lifting

2шт.

37

321-2644

DECAL

SPARE PART DECAL - engine data (on cover)

1шт.

40

221-158

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE - (3/8" PT x 1")

1шт.

41

221-337

COUPLING,Pipe, 3/8" NPT

COUPLING - nipple to valve

1шт.

42

A16764

VALVE

VALVE ASSEMBLY - shut-off

1шт.
