Запчасти Case 680E (010) - MANIFOLDS, 336BD DIESEL ENGINE, INTAKE MANIFOLD, EXHAUST (10) - ENGINE

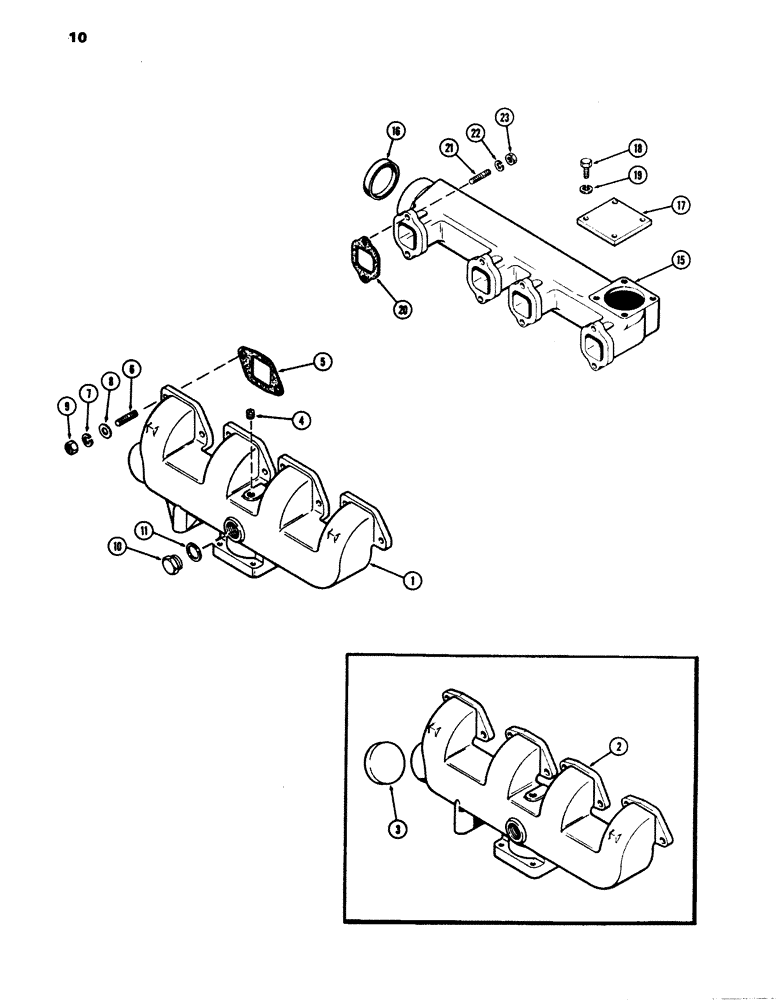

Схема запчастей Case 680E - (010) - MANIFOLDS, 336BD DIESEL ENGINE, INTAKE MANIFOLD, EXHAUST (10) - ENGINE

Артикул

Название

Примечание

Количество

1

A140120

MANIFOLD

- intake (aluminum)

1шт.

2

A59225

MANIFOLD

ASSY. - intake (cast iron), Includes Ref: 3

1шт.

3

41-1042

PLUG,Cup, 2 5/8"

- (2-5/8" cup type)

1шт.

4

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - (1/8" P.T., sq. hd.)

1шт.

5

A58662

MANIFOLD GASKET

- intake manifold

4шт.

6

A59077

STUD

- intake manifold (3/8" N.C. x 1-13/16")

8шт.

7

92-6

LOCK WASHER,3/8"

8шт.

8

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16" (Used w/A140120 manifold)

8шт.

9

25-166

NUT,3/8"-16, G5, Hvy

- 3/8" N.C. hex.

8шт.

10

A20917

PLUG

- heater hole

1шт.

11

A20916

MANIFOLD GASKET

GASKET - plug

1шт.

A65272

MANIFOLD

ASSY. - exhaust, Includes Ref: 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

MANIFOLD - exhaust

1шт.

16

A58750

PLUG,Cup, 3 1/4", Stainless

- (3-1/4" cup type), exhaust manifold

1шт.

17

A58665

COVER

PLATE - outlet cover, exhaust manifold

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Plate to manifold, exhaust Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

19

92-6

LOCK WASHER,3/8"

exhaust manifold 3/8"

4шт.

20

A58666

MANIFOLD GASKET

- exhaust manifold

4шт.

21

A59077

STUD

- exhaust manifold (3/8" N.C. x 1-13/16")

8шт.

22

92-6

LOCK WASHER,3/8"

exhaust manifold 3/8"

8шт.

23

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex., Seez-Pruf, exhaust manifold

8шт.

Выбрано товаров: 21
