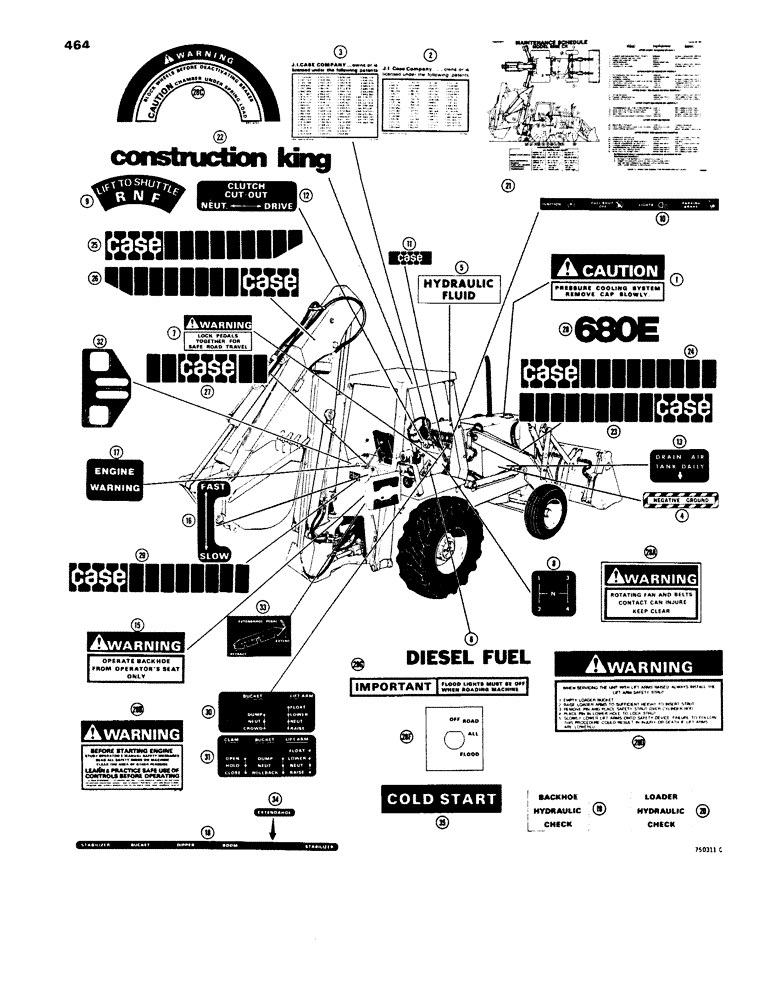

Запчасти Case 680E (464) - DECALS, LATE PRODUCTION (90) - PLATFORM, CAB, BODYWORK AND DECALS

L36164

DECAL

KIT - decal, Refs. 9 and 12 are stick on type, Includes: Ref. 1 - 28E

1шт.

L36164 Kit is used on tractor sn. 9118139, 9118916, 9118250, 9118255, 9118261, 9118262, 9118270 thru 9124838. L36175 Kit is used on tractor sn. 9124838 thru 9127825. L36180 kit is used on sn. 9127825 and after.

1шт.

L36175

DECAL

KIT - decal, Refs. 9 and 12 are rivet on type, Includes: Ref. 1 - 28E

1шт.

L36164 Kit is used on tractor sn. 9118139, 9118916, 9118250, 9118255, 9118261, 9118262, 9118270 thru 9124838. L36175 Kit is used on tractor sn. 9124838 thru 9127825. L36180 kit is used on sn. 9127825 and after.

1шт.

L36180

KIT

- decal, Refs. 9 and 12 are rivet on type, Includes: Ref. 1 - 28E

1шт.

L36164 Kit is used on tractor sn. 9118139, 9118916, 9118250, 9118255, 9118261, 9118262, 9118270 thru 9124838. L36175 Kit is used on tractor sn. 9124838 thru 9127825. L36180 kit is used on sn. 9127825 and after.

1шт.

1

321-3061

DECAL

- warning, radiator pressure

1шт.

2

321-663

DECAL

- patent, no longer used

1шт.

3

321-246

DECAL

- patent, no longer used

1шт.

4

321-704

DECAL

- negative ground

1шт.

5

321-229

DECAL

- hydraulic fluid

1шт.

6

321-230

DECAL

- diesel fuel

1шт.

7

321-3209

DECAL

- warning, brake pedals

1шт.

8

321-1000

DECAL

- transmission shift pattern

1шт.

9

321-2799

DECAL

- forward - reverse lever, stick on type

1шт.

9

321-4145

DECAL

- forward - reverse lever, rivet on type

1шт.

10

321-2613

DECAL

- cluster panel, R.H.

1шт.

11

L57685

DECAL

- "CASE", R.H. panel

1шт.

12

321-2785

DECAL

- clutch cutout, stick on type

1шт.

12

321-4146

DECAL

- clutch cutout, rivet on type

1шт.

13

321-1077

DECAL

- air tank drain

1шт.

15

321-3054

DECAL

- operator warning, at backhoe

2шт.

16

321-2729

DECAL

- backhoe throttle

1шт.

17

321-2721

DECAL

- engine warning light

1шт.

18

321-2725

DECAL

- backhoe controls, at console

1шт.

19

321-2798

DECAL

- backhoe hydraulic check

1шт.

20

321-2797

DECAL

- loader hydraulic check

1шт.

21

321-4901

DECAL

CHART - maintenance

1шт.

22

321-3069

DECAL

- Construction King

2шт.

23

321-3090

DECAL

- "CASE", R.H.

1шт.

24

321-3091

DECAL

- "CASE", L.H.

1шт.

25

321-3087

DECAL

- "CASE"

1шт.

26

321-3088

DECAL

- "CASE"

1шт.

27

321-3089

DECAL

- "CASE"

1шт.

28

321-3092

DECAL

- 680E

2шт.

28a

321-3596

DECAL

- warning, fan and belts

2шт.

28b

321-3705

DECAL

- warning, read and study all safety messages before operating machine

1шт.

28c

321-4127

DECAL

- warning, parking brake

1шт.

28d

321-4408

DECAL

- loader safety strut, L36175 Kit only

1шт.

28e

151-525

RIVET,Pop, 1/8" x .275"

- for Refs. 9 and 12, if used, part of L36175 Kit only, not shown

4шт.

28f

321-4633

DECAL

- light switch, L36180 kit only

1шт.

29

321-3099

DECAL

- flood light caution, L36180 kit only

1шт.

30

321-2722

DECAL

- "CASE"

1шт.

30

321-2722

DECAL

- bucket control, 2 spool valve

1шт.

31

321-2720

DECAL

- bucket control, 3 spool valve

1шт.

32

321-2746

DECAL

- dual lever control

1шт.

33

321-3747

DECAL - extendahoe control, models with twin levers

1шт.

34

321-2724

DECAL

- extendahoe control, models with individual levers

1шт.

35

321-2653

DECAL - cold start

1шт.

36

151-525

RIVET,Pop, 1/8" x .275"

- maintenance chart, not shown

4шт.
