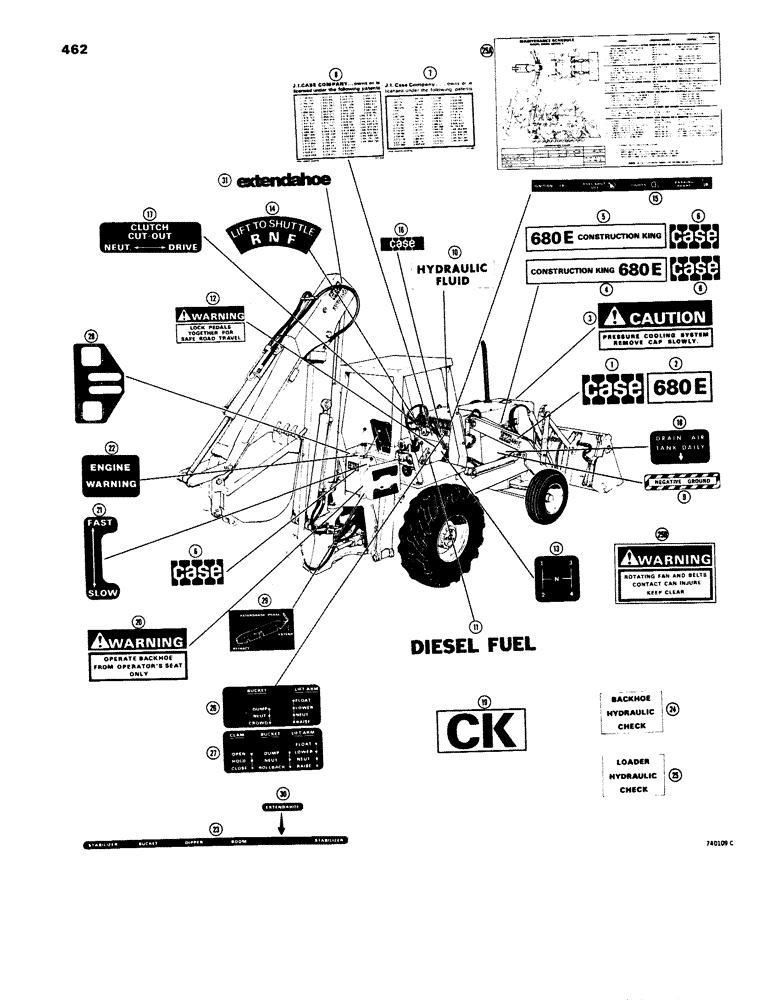

Запчасти Case 680E (462) - DECALS, EARLY PRODUCTION (90) - PLATFORM, CAB, BODYWORK AND DECALS

L36081

DECAL

KIT - decal, repair, Includes: Ref. 1 - 25C

1шт.

This decal kit should be used on machines before tractor sn. 9118170 except for 9118139, 9118196, 9118250, 911253, 9118255, 9118261 and 9118262.

1шт.

1

321-1573

DECAL

- "CASE", 5 inch (127 mm) lift arm

2шт.

2

321-2728

DECAL

- "680E" lift arm

2шт.

3

321-3061

DECAL

- warning, radiator pressure

1шт.

4

321-2730

DECAL

- "CONSTRUCTION KING 680E", at R.H. hood side

1шт.

5

321-2731

DECAL

- "680E CONSTRUCTION KING", at L.H. hood side

1шт.

6

321-1572

DECAL

- "CASE", 4 inch, (101 mm), at hood side, dipper side and console

5шт.

7

321-663

DECAL

- patent, no longer used

1шт.

8

321-246

DECAL

- patent, no longer used

1шт.

9

321-704

DECAL

- negative ground

1шт.

10

321-229

DECAL

- hydraulic fluid

1шт.

11

321-230

DECAL

- diesel fuel

1шт.

12

321-3209

DECAL

- warning, brake pedals

1шт.

13

321-1000

DECAL

- transmission shift pattern

1шт.

14

321-2799

DECAL

- forward - reverse lever

1шт.

15

321-2613

DECAL

- cluster panel, R.H.

1шт.

16

L57685

DECAL

- "CASE", R.H. panel

1шт.

17

321-2785

DECAL

- clutch cut-out

1шт.

18

321-1077

DECAL

- air tank drain

1шт.

19

321-1482

DECAL

- "OK", at dipper sides

2шт.

20

321-3054

DECAL

- operator warning, at backhoe

2шт.

21

321-2729

DECAL

- backhoe throttle

1шт.

22

321-2721

DECAL

- engine warning light

1шт.

23

321-2725

DECAL

- backhoe controls, at console

1шт.

24

321-2798

DECAL

- backhoe hydraulic check

1шт.

25

321-2797

DECAL

- loader hydraulic check

1шт.

25a

321-4901

DECAL

CHART - maintenance

1шт.

25b

321-3596

DECAL

- warning, fan and belts

2шт.

25c

151-525

RIVET,Pop, 1/8" x .275"

- used with item 25A

4шт.

26

321-2722

DECAL

- bucket control, 2 spool valve

1шт.

27

321-2720

DECAL

- bucket control, 3 spool valve

1шт.

28

321-2746

DECAL

- dual lever control

1шт.

29

321-2747

DECAL

- extendahoe control, models with twin levers

1шт.

30

321-2724

DECAL

- extendahoe control, models with individual levers

1шт.

31

321-3139

DECAL

- extendahoe

1шт.
