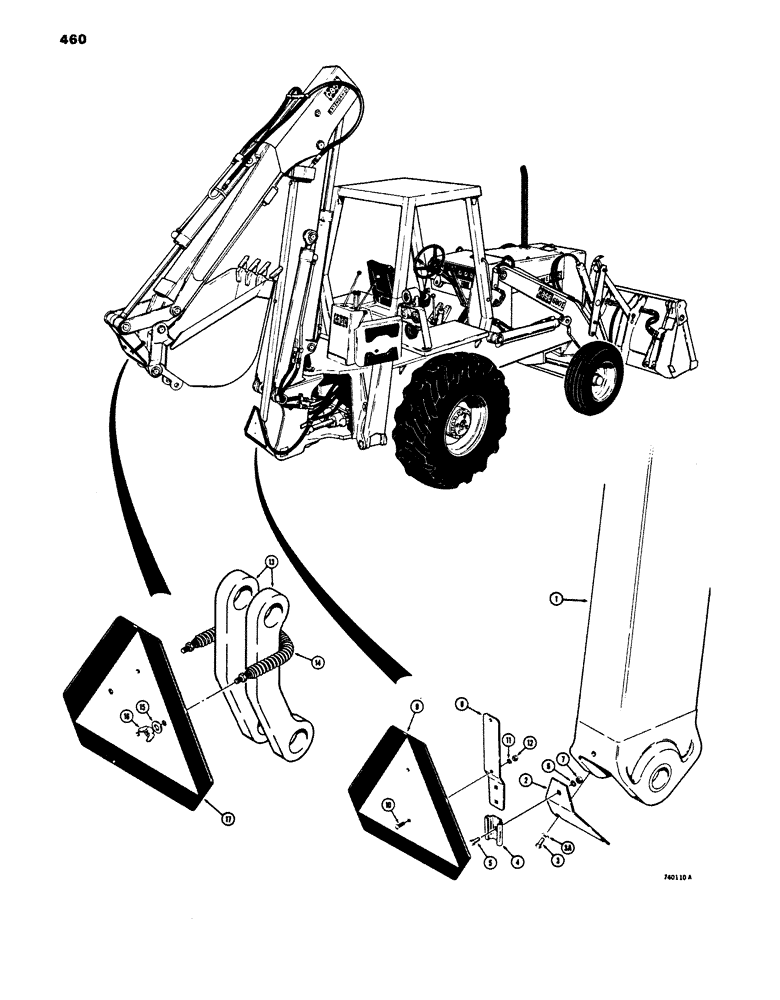

Запчасти Case 680E (460) - SLOW MOVING VEHICLE EMBLEM, EARLY PRODUCTION, SLOW MOVING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

REF

INSTRUCTION

BOOM - backhoe, see figure 404 for related parts

1шт.

2

L58801

BRACKET - emblem mounting

1шт.

3

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8" - 24 NF x 1", bracket mounting

2шт.

3a

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

4

A60977

BRACKET

SOCKET - slow moving vehicle emblem

1шт.

5

11-716

BOLT (MACHINE)

BOLT - 7/16" - 14 NC x 1", socket mounting

1шт.

6

92-7

LOCK WASHER,7/16"

1шт.

7

25-107

NUT,7/16"-14, G5

- hex., 7/16" - 14 NC

1шт.

A59450

WARNING SIGN

EMBLEM - slow moving vehicle, Includes: Ref. 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

BRACKET - emblem

1шт.

9

NSS

NOT SOLD SEPARAT

EMBLEM - slow moving vehicle, plate and decal

1шт.

9

321-1751

DECAL

- slow moving vehicle

1шт.

10

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- machine, pan head #10 - 24 NC x 1/2", emblem to bracket

2шт.

11

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

12

129-7

NUT,Hex, #10 - 24

- hex., #10 - 24 NC

2шт.

13

REF

INSTRUCTION

LINKS - backhoe buckets, see figures 240 and 242 for related parts, slow moving vehicle emblem, late production

2шт.

14

D52564

SPRING

- fastner, emblem, slow moving vehicle, late production

1шт.

15

195-518

WASHER,1/4", SAE

- flat, 1/4", plated, slow moving vehicle emblem, late production

2шт.

16

129-409

WING NUT,1/4"-20

NUT, WING, , SMV emblem, Late production 1/4"-20

2шт.

17

D52581

TRAFFIC SIGN

EMBLEM - slow moving vehicle, plate and decal, slow moving vehicle emblem, late production, Includes: P/N 321-1751

1шт.

17

321-1751

DECAL

- slow moving, vehicle emblem, late production

1шт.
