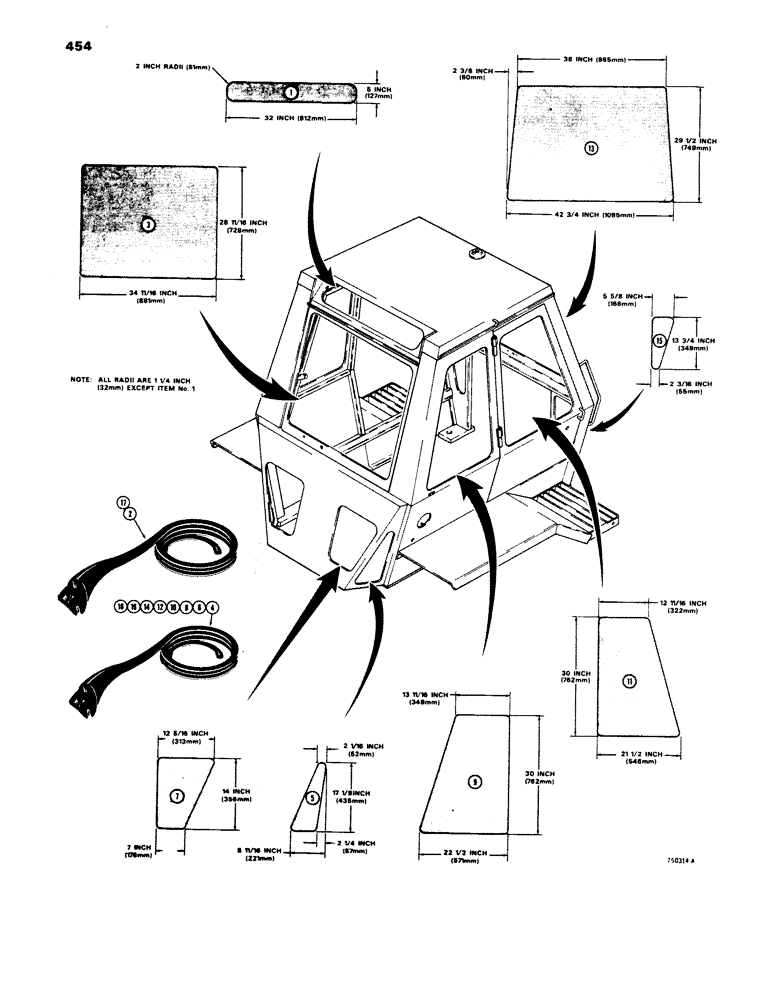

Запчасти Case 680E (454) - OPERATORS CAB (SIMS BUILT), CAB GLASS AND MOULDING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

REF

INSTRUCTION

GLASS - rear, upper

1шт.

2

REF

INSTRUCTION

MOULDING - upper rear window, 77" (1956 mm) long, cut from L35717 bulk

1шт.

3

REF

INSTRUCTION

GLASS - rear

1шт.

4

REF

INSTRUCTION

MOULDING - rear window, 128" (3251 mm) long, cut from D70593 bulk

1шт.

5

REF

INSTRUCTION

GLASS - rear, lower, outside

2шт.

6

REF

INSTRUCTION

MOULDING - rear lower window, 36.25" (921 mm) long, cut from D70593 bulk

2шт.

7

REF

INSTRUCTION

GLASS - rear, lower, inside

2шт.

8

REF

INSTRUCTION

MOULDING - rear, lower, 36" (914 mm) long, cut from D70593 bulk

2шт.

9

REF

INSTRUCTION

GLASS - side panel

2шт.

10

REF

INSTRUCTION

MOULDING - side panel, 101" (2565 mm) long, cut from D70593 bulk

2шт.

11

REF

INSTRUCTION

GLASS - door

2шт.

12

REF

INSTRUCTION

MOULDING - door window, 108" (2743 mm) long, cut from D70593 bulk

2шт.

13

REF

INSTRUCTION

GLASS - windshield

1шт.

14

REF

INSTRUCTION

MOULDING - windshield, 144" (3658 mm) long, cut from D70593 bulk

1шт.

15

REF

INSTRUCTION

GLASS - cowl, front

2шт.

16

REF

INSTRUCTION

MOULDING - front cowl window, 34" (864 mm) long, cut from D70593 bulk

2шт.

17

L35717

GASKET

MOULDING - bulk, 50' (15 metres) roll, not shown

1шт.

18

D70593

MOLDING

MOULDING - bulk, 50' (15 metres) roll, not shown

1шт.
