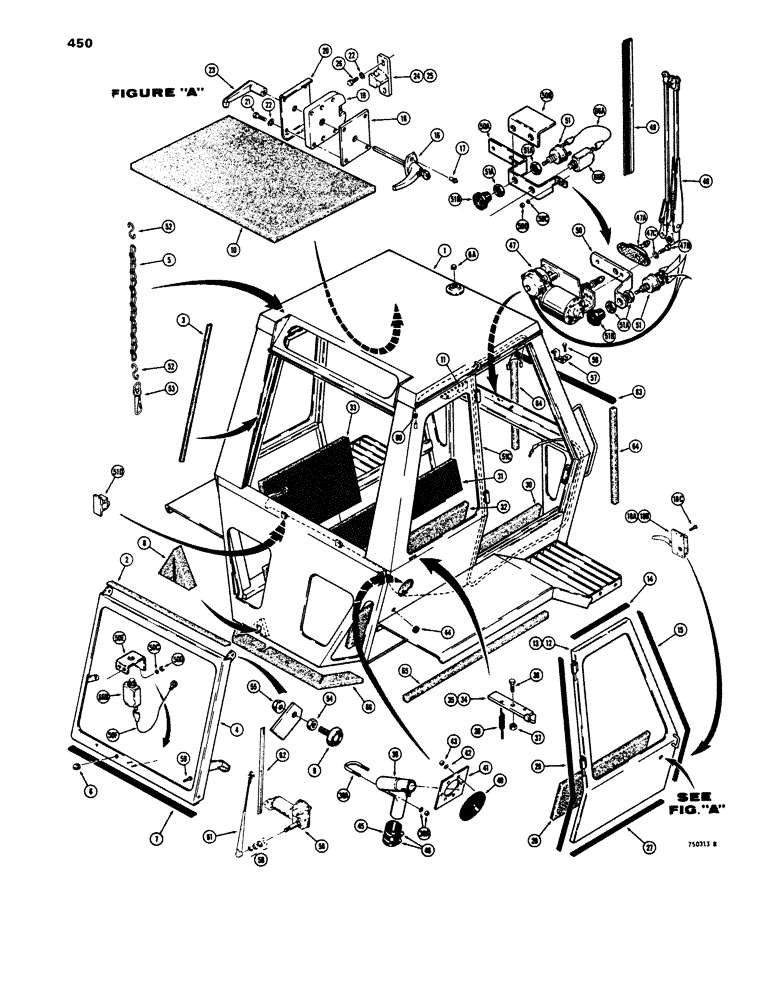

Запчасти Case 680E (450) - OPERATORS CAB (SIMS BUILT), DOORS AND WINDOWS (90) - PLATFORM, CAB, BODYWORK AND DECALS

REF

INSTRUCTION

CAB - operator's complete (Sims 1000-0405) See figure 2 for ordering, Includes: Ref. 1 - 73

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - cab

1шт.

2

REF

INSTRUCTION

FOAM - upper, roof, cut from L35801 bulk

1шт.

3

REF

INSTRUCTION

GASKET - rear window, sides 33" (838 mm) long, cut from L34759 bulk, see Ref. 68

2шт.

4

F70592

REAR WINDOW - roll up

1шт.

5

D70605

CHAIN - rear window

1шт.

6

205-28

PLUG - button, if used

1шт.

6a

353-679

PLUG,Hex Soc, 1"-11 1/2 NPT

- button, if used

1шт.

7

REF

INSTRUCTION

GASKET - rear window, bottom, 37" (536 mm) long, cut from L35819 bulk, see Ref. 69

1шт.

8

D70600

FOAM - lower rear

1шт.

9

D70621

ROLLER

- rear window

4шт.

10

D70604

FOAM - roof

1шт.

11

L35747

LATCH

- holdback, rear

1шт.

12

D70606

DOOR - R.H.

1шт.

13

D70607

DOOR - L.H.

1шт.

14

REF

INSTRUCTION

GASKET - door, top 16" (406 mm) long, cut from D66499 bulk, see Ref. 70

2шт.

15

REF

INSTRUCTION

GASKET - door, front, 52" (1321 mm) long, cut from D66499 bulk, see Ref. 70

2шт.

16

D70613

HANDLE

- door, locking, 3" (76 mm) shaft, order keys from Sims under the number stamped on the lock and the key.

2шт.

16

D71372

HANDLE

- door, locking, 3-3/4" (95 mm) shaft, order keys from Sims under the number stamped on the lock and the key

2шт.

17

D70620

RIVET

- drive

4шт.

18

F89824

LATCH

- door, Early Production

2шт.

The illustration has these items reversed.

1шт.

Ref. 18 in the illustration is actually the the D70615 spacer and Ref. 19 in the illustration is actually the F89824 latch.

1шт.

18a

L35737

LATCH

- door, R.H. Late Production

1шт.

18b

L35738

LATCH

- door, L.H. Late Production

1шт.

18c

187-994

SELF-TAP SCREW,Hex Hd, 1/4" x 3/4"

SCREW - 1/4" - 20 NC x 3/4", if used

8шт.

19

D70615

BLOCK

- latch, spacer, Early Production

2шт.

20

D70616

COVER - latch, Early Production

2шт.

21

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5, Early Production

8шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Early production 1/4"

12шт.

23

D70617

HANDLE

- door, inner, Early Production

2шт.

24

D70618

ROD

STRIKER - door, R.H., Early Production

1шт.

25

D70619

ROD

STRIKER - door, L.H. Early Production

1шт.

26

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Early Production Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

27

REF

INSTRUCTION

GASKET - door, bottom, 25" (635 mm) long, cut from D66499 bulk, see Ref. 70

2шт.

28

D70603

FOAM - door

2шт.

29

REF

INSTRUCTION

GASKET - door, rear, 50" (1270 mm) long, cut from D66499 bulk, see Ref. 70

2шт.

30

D70601

FOAM - side panel, R.H., lower

1шт.

31

D70602

FOAM - side panel, L.H. lower

1шт.

32

D70598

FOAM - side panel, R.H., upper

1шт.

33

D70599

FOAM - side panel, L.H., upper

1шт.

34

D70596

LATCH - hold back, R.H.

1шт.

35

D70595

LATCH - hold back, L.H.

1шт.

36

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

37

131-52

NUT,3/8"-16, GC

NUT - hex., self lock, 3/8" - 16 NC

2шт.

38

L35748

SPRING

- latch

2шт.

39

D70597

PIPE - fuel filler, see figure 64 for connecting hose

1шт.

39a

A13240

CLAMP,2-5/8" ID

- pipe, retaining (Includes hardware)

1шт.

40

F42990

BELLOWS

- fuel filler pipe

1шт.

41

D70612

RETAINER - fuel filler

1шт.

42

195-102

WASHER,1/4"

- flat, 1/4"

6шт.

43

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

6шт.

44

D72837

GROMMET - rubber

2шт.

45

D70622

HOSE

- fuel filler

1шт.

46

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose

2шт.

47

REF

INSTRUCTION

MOTOR - wiper, 24 volt, parts list figure 98

1шт.

47a

L35753

ADAPTER

- panograph, wiper

1шт.

47b

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

47c

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

2шт.

48

L35986

ARM

- wiper, 16" (406 mm)

1шт.

49

A42580

WIPER BLADE,203.2mm L

BLADE - wiper, 16" (406 mm)

1шт.

50

D70609

BRACKET - switch, used before cab sn. 24364

1шт.

50a

L76555

BRACKET

- switch, used on cab sn. 24364 and after

1шт.

50b

L76554

PLATE

- switch, used on cab sn. 24364 and after

1шт.

50c

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Brackets 1/4"

3шт.

50d

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Brackets

3шт.

50e

L77252

BRACKET

- circuit breaker, rear wiper, if used

1шт.

50f

D78370

WIRE - rear breaker to rear wiper, if used

1шт.

51

F63532

SWITCH

ASSEMBLY - wiper, includes 51A and 51B

1шт.

F63532 switch assy - This assembly does not include items 51A nut and 51B knob.

1шт.

51a

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- hex., wiper switch

2шт.

51b

A42578

KNOB

- wiper switch

2шт.

51c

D70623

HARNESS - cab

1шт.

51d

L54606

CLIP

- stick on

2шт.

52

L35834

HOOK - "S", rear window chain

1шт.

53

L35835

RING, SNAP

SNAP - chain

1шт.

54

129-145

JAM NUT,Jam, 1/2"-13, G5

4шт.

55

131-912

LOCK NUT,Flg, 1/2"-13

NUT - flanged, 1/2" - 13 NC

4шт.

56

D72836

BRACKET - defroster mount

1шт.

57

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

58

F93633

MOTOR, ELECTRIC

MOTOR - wiper, rear

1шт.

59

187-988

SELF-TAP SCREW,0.19"-16 x 3/4"

BOLT - wiper ground

2шт.

60

A75994

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

- wire

3шт.

61

D71195

ARM

- wiper, rear

1шт.

D71195 rear wiper arm - Use part nbr F42213 wiper arm.

1шт.

62

A42580

WIPER BLADE,203.2mm L

BLADE - wiper, rear

1шт.

63

REF

INSTRUCTION

RUBBER - mounting, 30" (762 mm) long, cut from L35840 bulk, see Ref. 71

1шт.

64

REF

INSTRUCTION

RUBBER - mounting, 29" (737 mm) long, cut from D70610 bulk, see Ref. 72

2шт.

65

REF

INSTRUCTION

RUBBER - mounting, 40" (1016 mm) long, cut from D71360 bulk, see Ref. 73

2шт.

66

REF

INSTRUCTION

RUBBER - mounting, 55-3/4" (1416 mm) long, cut from D71360 bulk, see Ref. 73

1шт.

66a

F43266

ELECTRICAL WIRE

WIRE - front breaker to wiper switch, if used

1шт.

66b

L76726

BREAKER

- circuit, 3 ampres, if used

2шт.

L76726 circuit breaker - This part was adopted in production with SN 9124530 to protect against wiper motor failure.

1шт.

Refer to CE Service Bulletin 26-78.

1шт.

67

L35801

FOAM

- bulk, 50' (15 metres) roll, not shown

1шт.

68

L35759

GASKET - bulk, 50' (15 metres) roll, not shown

1шт.

69

L35819

RUBBER SEAL

GASKET - bulk, 50' (15 metres) roll, not shown

1шт.

70

D66499

SEAL

GASKET - bulk, 50' (15 metres) roll, not shown

1шт.

71

L35840

RUBBER - bulk, 50' (15 metres) roll, not shown

1шт.

72

D70610

GASKET

RUBBER - bulk, 50' (15 metres) roll, not shown

1шт.

73

D71360

FOAM

RUBBER - bulk, 50' (15 metres) roll, not shown

1шт.
