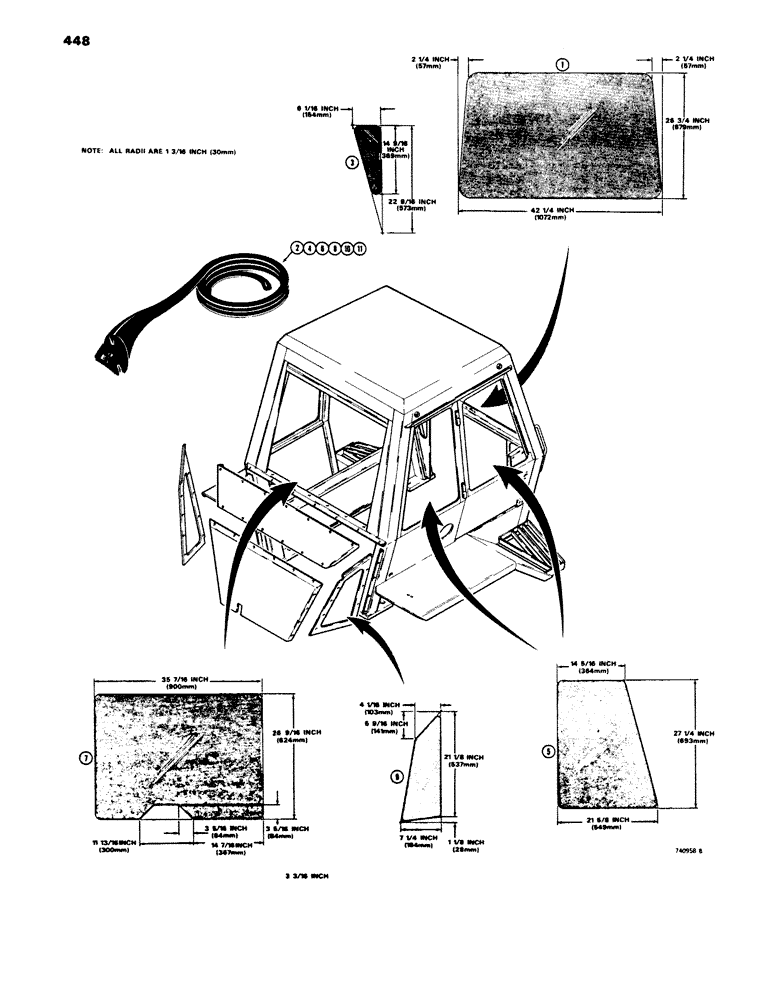

Запчасти Case 680E (448) - OPERATORS CAB (CASE BUILT), GLASS AND MOULDINGS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

REF

INSTRUCTION

GLASS - windshield

1шт.

2

REF

INSTRUCTION

MOULDING - windshield, 131.6" (3343 mm) long, Cut from A42677 bulk moulding, see Ref. 11

1шт.

3

REF

INSTRUCTION

GLASS - window, cowl

2шт.

4

REF

INSTRUCTION

MOULDING - cowl window, 35.6" (904 mm) long, Cut from A42667 bulk moulding, see Ref. 11

1шт.

5

REF

INSTRUCTION

GLASS - door and side windows

4шт.

6

REF

INSTRUCTION

MOULDING - door window, 89.5" (2273 mm) long, Cut from A42677 bulk moulding, see Ref. 11

4шт.

7

REF

INSTRUCTION

GLASS - rear window

1шт.

8

REF

INSTRUCTION

MOULDING - rear window, 125.4" (3185 mm) long, Cut from A42667 bulk moulding, see Ref. 11

1шт.

9

REF

INSTRUCTION

GLASS - backhoe closure panels

2шт.

10

REF

INSTRUCTION

MOULDING - backhoe closure panel glass, 47-5/8" (1209 mm) long, Cut from A42667 bulk moulding, see Ref. 11

2шт.

11

A42677

MOLDING

MOULDING - bulk material, 50 ft. (15 metres) roll

1шт.
