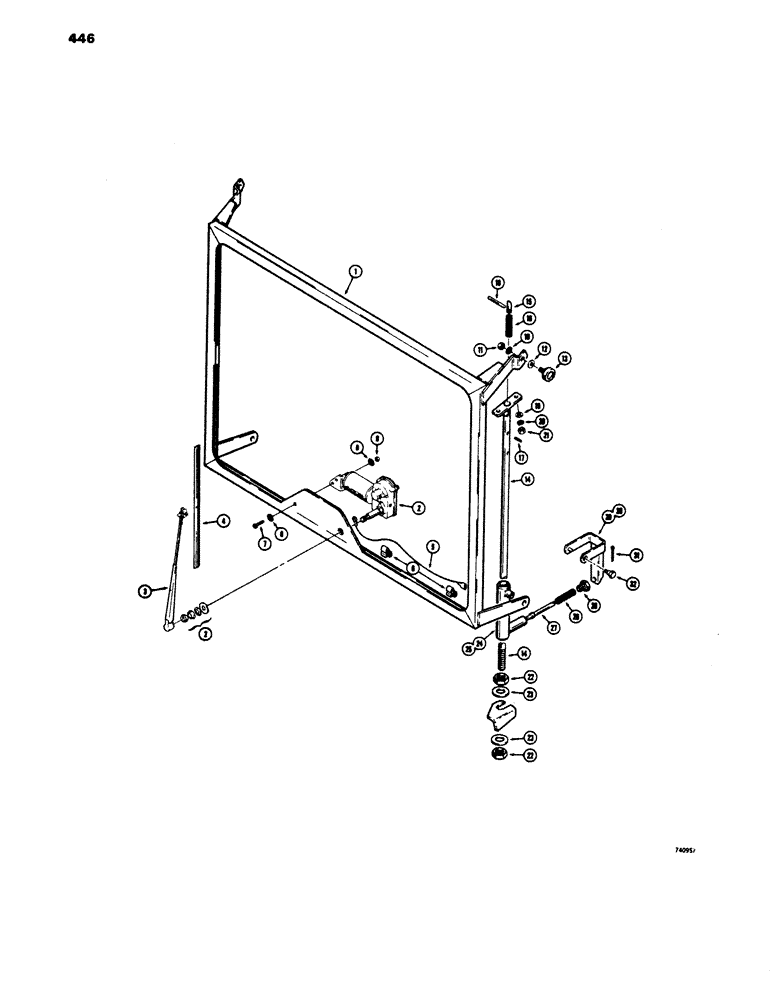

Запчасти Case 680E (446) - OPERATORS CAB (CASE BUILT), REAR WINDOW (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F93604

FRAME - rear window

1шт.

2

F93633

MOTOR, ELECTRIC

MOTOR - rear window wiper

1шт.

3

F42213

ARM

- rear wiper, 16" (406 mm)

1шт.

4

F42214

WIPER

BLADE - rear wiper, 18" (451 mm)

1шт.

5

F43217

HARNESS - rear wiper

1шт.

6

F54095

CLIP - wire retaining

3шт.

7

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head, slotted, #10 - 24 NC x 1/2", plated

1шт.

8

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

9

129-17

NUT,Hex, #10 - 24

NUT - hex., #10 - 24 NC, plated

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

2шт.

12

195-521

WASHER,5/16", SAE

- flat, 5/16"

2шт.

13

F42201

BEARING CARRIER

BEARING - rear window carrier

2шт.

14

F93658

TUBE - rear window guide 0.51" OD

2шт.

15

F43239

PLUNGER - lock, rear window

2шт.

16

F62245

SPRING

- plunger

2шт.

17

138-129

PIN, 1/4" x 11/16", Slotted 1/4" x 11/16", Slotted

2шт.

18

138-321

LOCK PIN,3/16" x 2", Slotted

PIN, 3/16" x 2", Slotted

2шт.

19

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

4шт.

20

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

21

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

22

129-148

JAM NUT,Jam, 3/4"-10, G5

- hex., lock, 3/4" - 10 NC, plated

4шт.

23

195-545

WASHER,3/4", SAE

- flat, 3/4", plated

4шт.

24

F93651

GUIDE - R.H., rear window

1шт.

25

F93652

GUIDE - L.H., rear window

1шт.

This part is missing on figure 446. It should be part nbr F62245 spring (qty 2 required).

1шт.

27

F43241

PLUNGER - guide

2шт.

28

222-1004

TUBE NUT,5/8" - 18

NUT - hex., 3/8" tube, inverted flare

2шт.

29

F93662

HANDLE - window guide, R.H.

1шт.

30

F93663

HANDLE - window guide, L.H.

1шт.

31

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

32

F13404

BOLT - shoulder, 5/16" - 18 NC

2шт.
