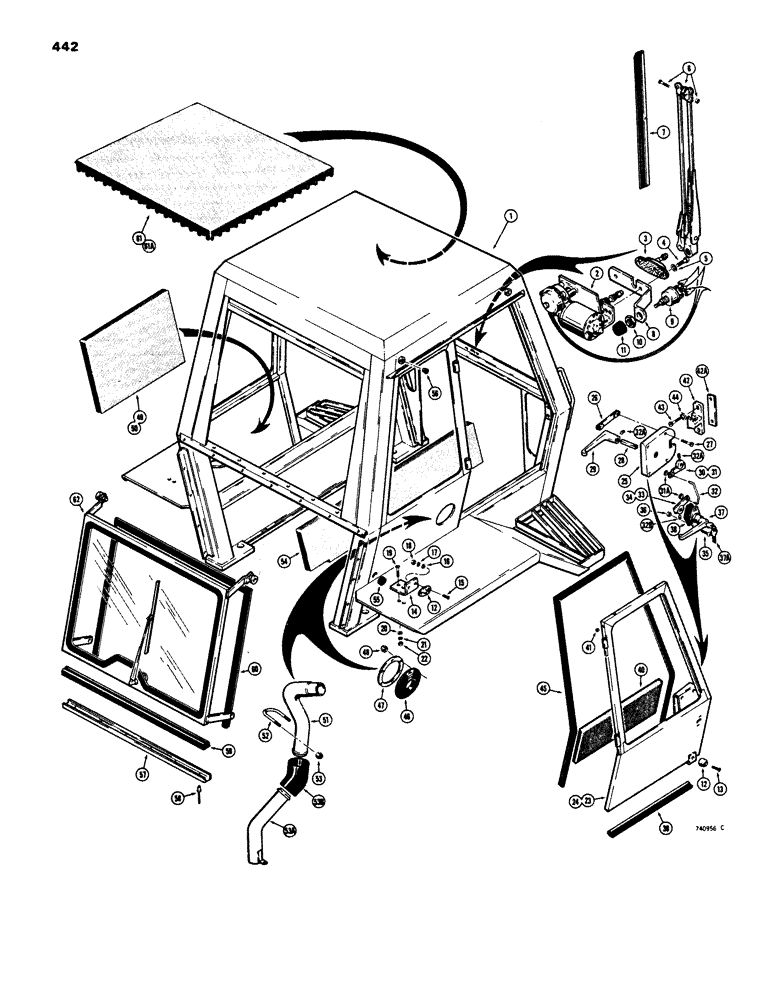

Запчасти Case 680E (442) - OPERATORS CAB (CASE BUILT), DOORS AND WIPERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F93569

FRAME - operator's cab

1шт.

2

REF

INSTRUCTION

MOTOR - wiper, parts list figure 98

1шт.

3

F43096

ADAPTER

ADAPTOR - Pantograph, double arm wiper

1шт.

4

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

HHCS - 1/4" - 28 NF x 3/4", plated

2шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

6

F43097

ARM

- windshield wiper, 19" (482 mm)

1шт.

7

F43095

BLADE

- windshield wiper, 17" (431 mm)

1шт.

8

F43227

BRACKET

- switch, wiper motor

1шт.

9

F63532

SWITCH

- wiper motor, spade terminals

1шт.

9

L35743

SWITCH

- wiper motor, bullet terminals

1шт.

10

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- hex., switch mounting, 7/16" - 27 NF

1шт.

11

A42578

KNOB

- wiper motor switch

1шт.

12

F93104

HOLDER

BUMPER - door

2шт.

F93104 door bumper - This assembly includes the socket and door holder bracket.

1шт.

13

182-527

SCREW,Sl Pan Hd, 1/4" - 20 x 5/8"

- pan head, slotted, 1/4" - 20 NC x 5/8", plated

2шт.

14

F43138

ANGLE - door holder

2шт.

15

179-155

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- oval head, slotted, #10 - 24 NC x 3/4", plated

4шт.

16

195-513

WASHER,#10

- flat, , plated #10

4шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

18

129-17

NUT,Hex, #10 - 24

NUT - hex., #10 - 24 NC, plated

4шт.

19

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

4шт.

20

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

22

F93573

NUT - hed., 5/16" - 18 NC, plated

4шт.

23

F93573

DOOR - R.H.

1шт.

24

F93574

DOOR - L.H.

1шт.

25

F89824

LATCH

- door, inside

2шт.

26

F93579

STRAP - latch

4шт.

27

182-534

SCREW,Sl Pan Hd, 1/4" - 20 x 1"

- pan head, slotted, 1/4" - 20 NC x 1", plated

8шт.

28

F42982

SHAFT

- door latch, inside

2шт.

29

F63925

HANDLE

- inside release

2шт.

30

F93575

ARM - handle, R.H., inner

1шт.

31

F93576

ARM - handle, L.H., inner

1шт.

31a

131-421

NUT

- push type

4шт.

32

F42980

ROD

- latch

2шт.

32a

178-830

SET SCREW,Hex Soc, #10-24 x 3/8"

SCREW - set, #10 - 24 NC x 3/8"

4шт.

32b

178-838

SCREW - set, #10 - 24 NC x 5/8" Hex Soc, #10-24 x 5/8"

2шт.

33

F93577

ARM/LIFTING DEVICE

ARM - handle, R.H., outer

1шт.

34

F93578

ARM - handle, L.H., outer

1шт.

35

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

- oval head, phillips, #10 - 24 NC x 5/8", plated

4шт.

36

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

37

F93580

HANDLE

- door, outside, Includes: Ref. 37A

2шт.

37a

A42653

SET OF 2 KEYS

KEYS - handle, outside

2шт.

A42653 key - If this key does not work, use D83205 key.

1шт.

38

F63860

GASKET

- outside handle

2шт.

39

REF

INSTRUCTION

SEAL - door bottoms, 23.5" (597 mm) long, Cut from F43086 bulk seal, see Ref. 63

1шт.

40

F43070

TURNBUCKLE

PADDING - door, inside

2шт.

41

355-62

PLUG - plastic

12шт.

42

F63580

PLATE

STRIKER - door, R.H. and L.H.

2шт.

42a

F43527

SHIM - striker, if used

1шт.

43

182-534

SCREW,Sl Pan Hd, 1/4" - 20 x 1"

- pan head, slotted, 1/4" - 20 NC x 1", plated

4шт.

44

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal tooth, shakeproof, plated

4шт.

45

REF

INSTRUCTION

SEAL - door frame, 106" (2692 mm) long, Cut from F43086 bulk seal, see Ref. 63

1шт.

46

F42990

BELLOWS

- fuel filler tube

1шт.

47

F43064

RING - retaining, fuel filler tube

1шт.

48

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

6шт.

49

F43071

PADDING - R.H. side panel

1шт.

50

F43072

PADDING - L.H. side panel

1шт.

52

F43066

PIPE - fuel filler tube 2.25" ID x 2.38" OD x 17.58, 6.74" L

1шт.

52

F43065

BOLT - "U" self lock, 1/4" - 20 NC

1шт.

53

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

53a

L73543

PIPE ASSY.

PIPE - fuel filler extension, if used

1шт.

53b

R17765

HOSE,2.50" ID x 2.63", SAE 20R4 CLASS SC

- fuel filler, if used 2.50" ID x 2.63", SAE 20R4 CLASS SC

1шт.

54

F43073

TURNBUCKLE

PADDING - fender panel

2шт.

55

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- rubber

2шт.

56

353-550

PLUG,Slotted, 1/2"-13

Plastic, with shoulder Slotted, 1/2"-13

4шт.

57

F42983

RETAINER - rear window seal

1шт.

58

151-526

RIVET,Pop, 1/8" x .337"

- pop, 1/8" x .294" long (3.17 mm x 7.46 mm long)

6шт.

59

REF

INSTRUCTION

SEAL - rear window, lower, 38.6" (980 mm) long, Cut from F43091 bulk seal, see Ref. 64

1шт.

60

REF

INSTRUCTION

SEAL - rear window, 97.4" (2474 mm) long, Cut from F43092 bulk seal, see Ref. 65

1шт.

61

F43069

HEADLINER - cab

1шт.

61a

F43577

HEADLINER - cab

1шт.

62

REF

INSTRUCTION

REAR WINDOW ASSEMBLY - slide-up, see figure 446 for breakdown

1шт.

63

F43086

SEAL

- bulk roll, 100 ft. (30 metres), not shown

1шт.

64

F43091

SEAL - bulk roll, 100 ft. (30 metres), not shown

1шт.

65

F43092

SEAL

- bulk roll, 100 ft. (30 metres), not shown

1шт.
