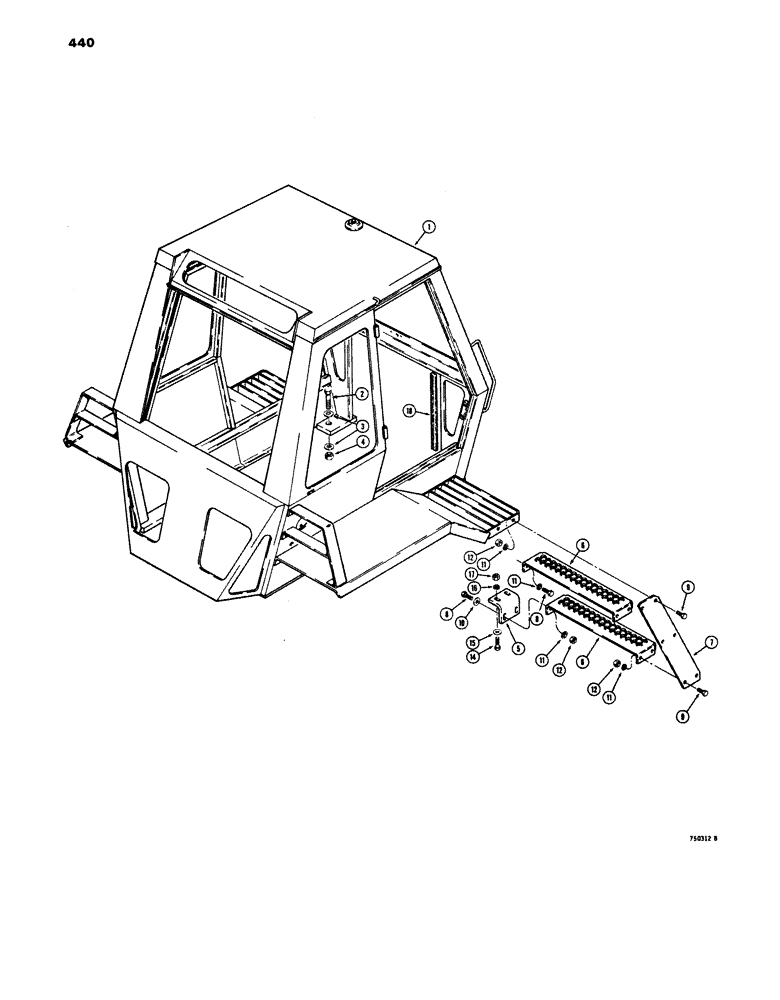

Запчасти Case 680E (440) - OPERATORS CAB (SIMS BUILT), MOUNTING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

REF

INSTRUCTION

CAB - operator's (Sims 1000-0405) see figure 2 for ordering

1шт.

2

13-2056

BOLT (MACHINE),Hex, 1-1/4" - 7 x 3-1/2", Gr 5

HHCS - 1-1/4" - 7 NC x 3-1/2"

4шт.

3

43536

CABLE

WASHER - flat, 1-1/4", hardened

8шт.

4

25-1020

NUT,1 1/4"-7, G5

4шт.

5

L71214

BRACKET - step

2шт.

6

L71215

STEP - access

4шт.

7

L71219

PLATE - step mounting

2шт.

8

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

9

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

12шт.

10

D64050

WASHER

- flat, 1/2", special

4шт.

11

92-8

LOCK WASHER,1/2"

20шт.

12

25-108

NUT,1/2"-13, G5

- hex/. 1/2" - 13 NC

16шт.

14

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

HHCS - 5/8" - 11 NC - x 1-3/4"

4шт.

15

195-41

WASHER,5/8"

- flat, 5/8"

4шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

17

25-1010

NUT,5/8"-11, G5

4шт.

18

L73272

STRIP

FOAM - cowl, used on some tractors

1шт.
