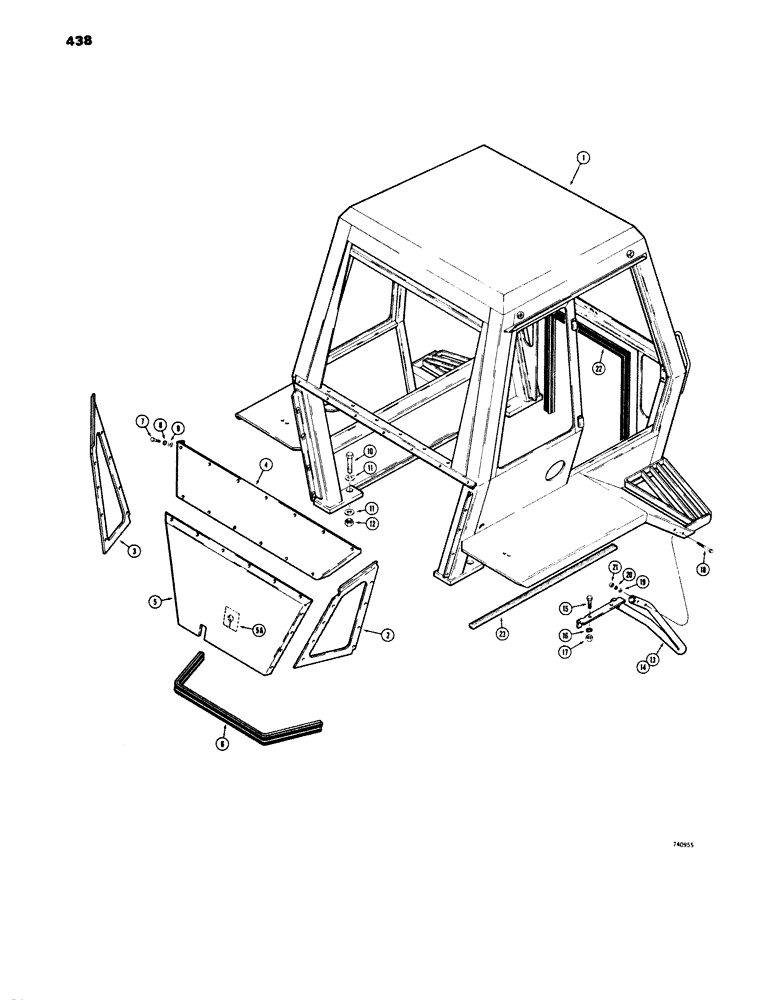

Запчасти Case 680E (438) - OPERATORS CAB (CASE BUILT), MOUNTING AND BACKHOE CLOSURE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F93569

FRAME - operator's cab

1шт.

2

F42911

PANEL - backhoe, R.H.

1шт.

3

F42912

PANEL - backhoe, L.H.

1шт.

4

F93554

PANEL - backhoe, upper

1шт.

5

F93555

PANEL - backhoe, lower

1шт.

5a

F43282

SEAL - lower backhoe panel

1шт.

6

REF

INSTRUCTION

SEAL - backhoe panels, 45.2" (1148 mm) Cut from F43117 bulk seal, see Ref. 24

1шт.

7

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

29шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

29шт.

9

195-103

WASHER,5/16"

- flat, , plated 5/16"

29шт.

10

13-2056

BOLT (MACHINE),Hex, 1-1/4" - 7 x 3-1/2", Gr 5

HHCS - 1-1/4" - 7 NC x 3-1/2", cab mounting

4шт.

11

D43536

WASHER

- flat, heat treated, 1-1/4"

8шт.

12

25-1020

NUT,1 1/4"-7, G5

4шт.

13

F93630

STEP - access, R.H.

1шт.

14

F93631

STEP - access, L.H.

1шт.

15

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

16

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

17

129-107

NUT,5/8"-11, G5

4шт.

18

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

19

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

22

REF

INSTRUCTION

SEAL - cowl, 85" (2159 mm) Cut from F43094 bulk seal, see Ref. 25

1шт.

23

F43283

SEAL - fender, 40.3" (1023 mm) long

2шт.

24

F43117

SEAL

- bulk material, 100 ft. (30 metres) roll, not shown

1шт.

25

F43094

SEAL - bulk material, 100 ft. (30 metres) roll, not shown

1шт.
