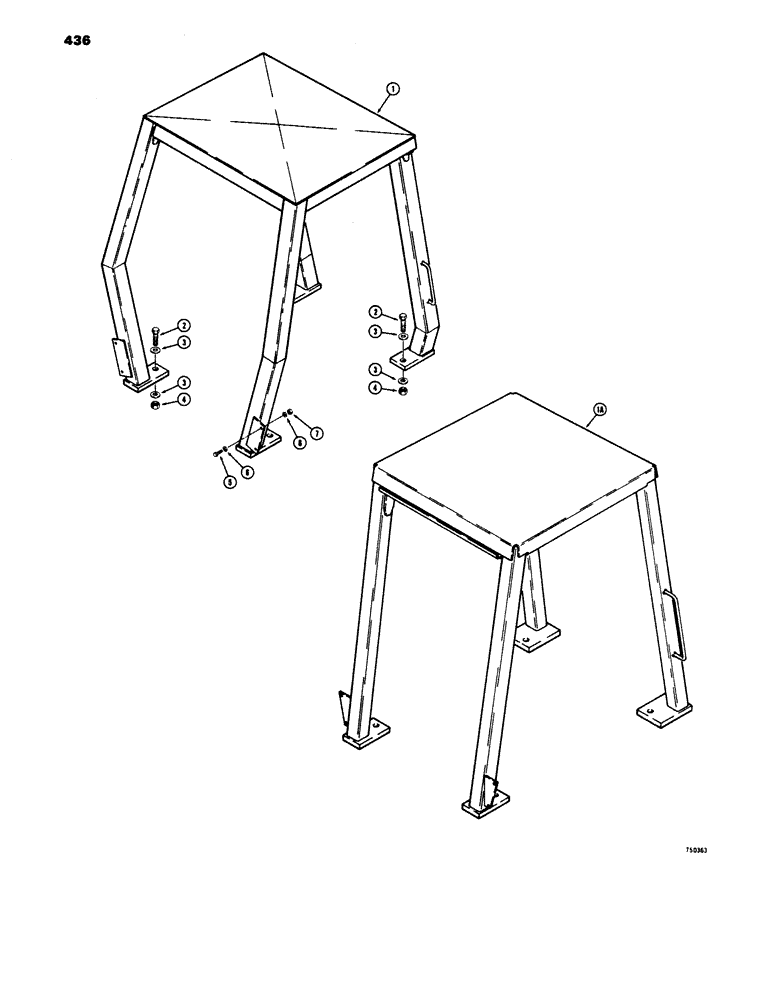

Запчасти Case 680E (436) - ROPS CANOPY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F93538

CANOPY - ROPS, bent legs, machinery item, see figure 2 for ordering

1шт.

1a

L71080

CANOPY - ROPS, straight legs, machinery item, see figure 2 for ordering

1шт.

2

13-2056

BOLT (MACHINE),Hex, 1-1/4" - 7 x 3-1/2", Gr 5

HHCS - 1-1/4" - 7 NC x 3-1/2", ROPS mounting

4шт.

3

D43536

WASHER

- flat, 1-1/4", hardened

8шт.

4

25-1020

NUT,1 1/4"-7, G5

4шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2", fender mounting

4шт.

6

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

7

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

4шт.

8

L72019

HEADLINER - canopy, used with F93538 canopy

1шт.

9

L79212

HEADLINER - canopy, used with L71080 canopy

1шт.

10

345-57

ADHESIVE

- headliner, not shown

1шт.
