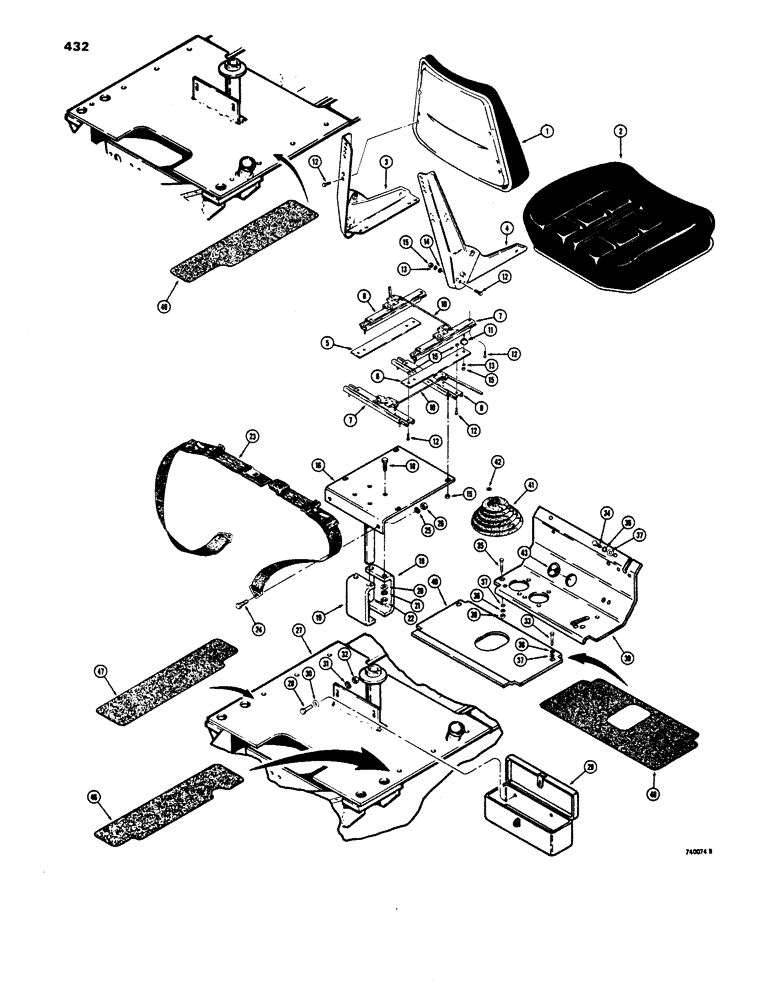

Запчасти Case 680E (432) - FUEL TANK, FLOOR PLATES AND SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

L57148

SEAT

ASSEMBLY - operator's, Includes: Ref. 1 - 32

1шт.

1

D56884

BACKREST

- seat

1шт.

2

D56883

SEAT

CUSHION - seat

1шт.

3

D56885

RAIL ASSY.

FRAME - seat, L.H.

1шт.

4

D56886

RAIL ASSY.

FRAME - seat, R.H.

1шт.

5

D59687

BRACKET

- mounting, L.H.

1шт.

6

D59686

BRACKET

- mounting, R.H.

1шт.

7

A64818

ADJUSTER

- seat

2шт.

A64818 seat adjuster - This is the rear and RH adjuster (as seen from sitting in seat).

1шт.

8

L35629

ADJUSTER

- seat, L.H.

1шт.

9

D59695

SUPPORT

ADJUSTER - seat, front

1шт.

D59695 front seat adjuster - The L57148 seat used D59688 front adjuster (stationary part of bracket is 12" long; shifting mechanism is 13 1/2" long).

1шт.

The sub to seat L78233 used D59695 front adjuster (stationary part of bracket is 12" long; shifting mechanism is 12 1/2" long).

1шт.

10

L35492

ROD

- connecting, seat adjusters

2шт.

11

D59689

SPACER

- seat frame

4шт.

12

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

18шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

10шт.

14

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

10шт.

15

9635082

NUT,5/16" - 18, Gr 5

10шт.

15a

80346

GUARD - clothing protection, slide rail front, if used, not shown

2шт.

16

L55925

POST - seat, inner

1шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

19

L54713

CLAMP - seat post

2шт.

20

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

21

92-6

LOCK WASHER,3/8"

4шт.

22

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

4шт.

23

D60615

SAFETY BELT ,3.00" W

If used 3.00" W

1шт.

23

D75428

SAFETY BELT

SAFETY BELT, 2" (51 mm) wide, If used

1шт.

24

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

26

131-654

LOCK NUT,1/2"-13, GB

NUT - hex., self lock. 1/2" - 13 NC

2шт.

27

REF

INSTRUCTION

TANK ASSEMBLY - fuel, see figure 422 for chassis and related parts

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Tool box mounting Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

29

D55624

TOOL

BOX - tool

1шт.

30

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

31

92-6

LOCK WASHER,3/8"

2шт.

32

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

2шт.

33

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

34

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

35

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

36

92-6

LOCK WASHER,3/8"

6шт.

37

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

38

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

2шт.

39

L57005

PLATE - floor, front

1шт.

40

L55922

PLATE

- floor, rear

1шт.

41

L54087

BOOT

SEAL - transmission, shift lever

1шт.

42

95-8

WASHER,1/2"

flat, seal retainer 1/2"

1шт.

43

L52474

PLUG

COVER - access, snap-in plug

1шт.

44

L71570

FLOOR MAT

FLOORMAT - front, not shown

1шт.

45

L72665

FLOOR MAT

FLOORMAT - rear-not shown

1шт.

43

L71421

PAD

- non-slip, R.H., models with front fuel filler tube

1шт.

47

L71262

PAD

- non-slip, L.H.

1шт.

48

L71264

PAD

- non-slip, center

1шт.

49

L71421

PAD

- non-slip, R.H., models with rear fuel filler tube

1шт.
