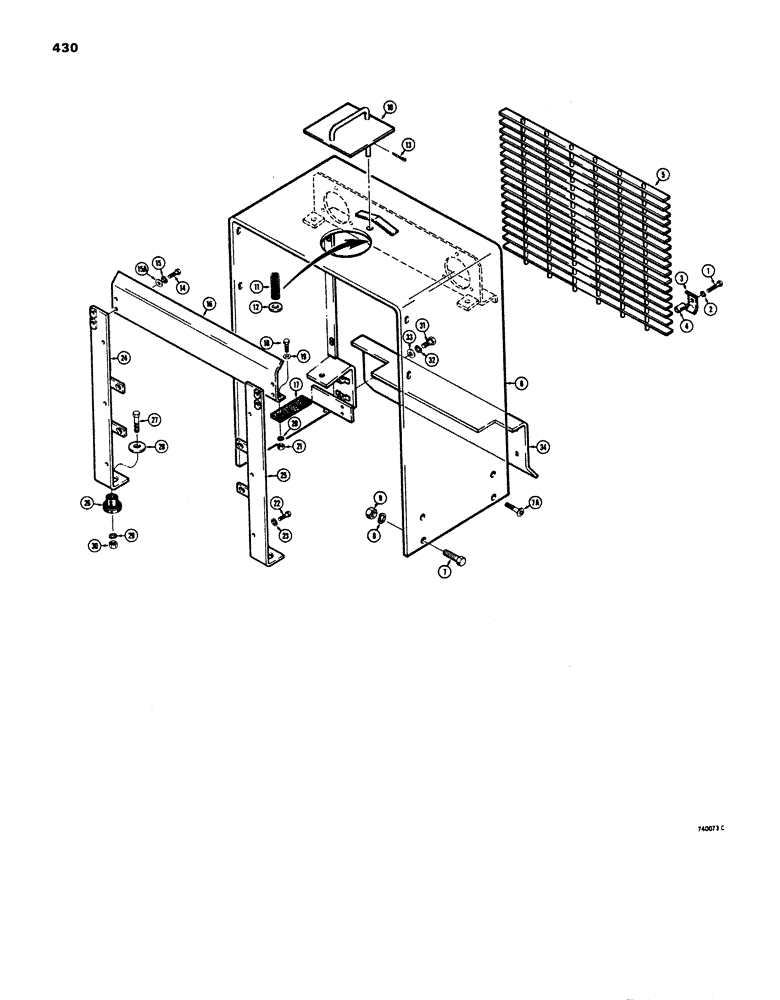

Запчасти Case 680E (430) - RADIATOR FRAME AND GRILLE (90) - PLATFORM, CAB, BODYWORK AND DECALS
№
Артикул
Название
Примечание
Количество
1
13-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
4шт.
2
92-6
LOCK WASHER,3/8"
4шт.
3
L15301
CLAMP
- grille retaining
4шт.
4
T34922
BUSHING
SPACER -, Serial Range: grille-frame
1шт.
5
L55682
GRILLE ASSY
GRILLE - radiator frame
1шт.
6
REF
INSTRUCTION
FRAME - radiator and grille, see figure 428
1шт.
7a
164-591
SCREW,Btn Hd, 3/4" - 10 x 2"
CAPSCREW - button head, hex socket
4шт.
8
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
8шт.
9
25-1012
NUT,3/4"-10, G5
8шт.
10
L55697
COVER - radiator cap access
1шт.
11
A27100
SPRING - cover mounting
1шт.
12
95-6
WASHER,3/8"
- flat, 3/8"
1шт.
13
132-47
COTTER PIN,1/8" x 7/8"
Pin, Split (Cotter), 1/8" x 7/8"
1шт.
14
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
4шт.
15
92-5
LOCK WASHER,5/16"
4шт.
15a
95-5
WASHER,3/8" x 7/8" x .083"
- flat, 5/16"
6шт.
16
L55694
BAFFLE - radiator, upper
1шт.
17
L50641
CONNECTING STRIP
STRAP - radiator mounting, upper
2шт.
18
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
HHCS - 3/8" - 16 NC x 1-1/2"
6шт.
19
95-6
WASHER,3/8"
- flat, 3/8"
4шт.
20
92-6
LOCK WASHER,3/8"
4шт.
21
25-106
NUT,3/8"-16, G5
- hex., 3/8" - 16 NC
4шт.
22
14-512
BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd
HHCS - 5/16" - 24 NF x 1/2"
6шт.
23
92-5
LOCK WASHER,5/16"
6шт.
24
L55699
BRACKET - radiator mounting, L.H.
1шт.
25
L55700
BRACKET - radiator mounting, R.H.
1шт.
26
L46821
SHOCK ABSORBER
BUSHING - radiator mounting, lower
2шт.
27
13-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
HHCS - 1/2" - 13 NC x 2-1/2"
2шт.
28
195-2061
WASHER,5/8" x 1 7/8" x .134"
- flat, 1/2"
2шт.
29
92-8
LOCK WASHER,1/2"
2шт.
30
25-108
NUT,1/2"-13, G5
- hex., 1/2" - 13 NC
2шт.
31
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
4шт.
32
92-8
LOCK WASHER,1/2"
4шт.
33
95-8
WASHER,1/2"
flat 1/2"
4шт.
34
L55701
PLATE - guard, lower radiator
1шт.
Выбрано товаров: 36
