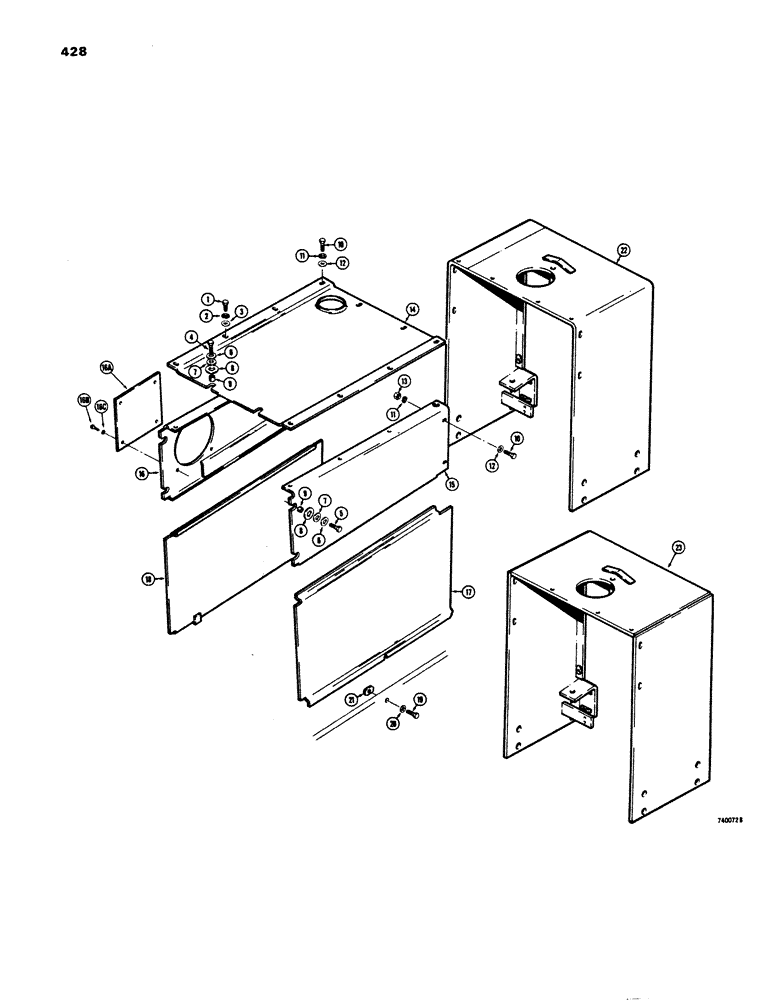

Запчасти Case 680E (428) - HOOD AND ENGINE SIDE PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS
№
Артикул
Название
Примечание
Количество
1
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
Hood top Hex, 3/8"-16 x 3/4", G5, Full Thd
6шт.
2
92-6
LOCK WASHER,3/8"
6шт.
3
95-6
WASHER,3/8"
- flat, 3/8"
6шт.
4
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
Hood rear Hex, 3/8"-16 x 1 1/4", G5, Full Thd
2шт.
5
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
Hood side Hex, 3/8"-16 x 1 1/4", G5, Full Thd
4шт.
6
A29277
WASHER
- flat, 3/8"
6шт.
7
R16171
SPRING WASHER
- spring wave type
6шт.
8
95-10
WASHER,5/8"
- special
6шт.
9
D45998
SPACER
-, Serial Range: hood-chassis
6шт.
D45998 spacer - Later units used part nbr G11271 spacer.
1шт.
10
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
Hood front Hex, 3/8"-16 x 1 1/4", G5, Full Thd
8шт.
11
92-6
LOCK WASHER,3/8"
8шт.
12
95-6
WASHER,3/8"
- flat, 3/8"
8шт.
13
131-1202
NUT,3/8"-16, GC
- hex., lock, 3/8" - 16 NC
4шт.
14
L55833
HOOD - top, center of exhaust opening is 4-1/4" (108 mm) from front edge, if used
1шт.
14
L70214
HOOD - top, center of exhaust opening is 11-1/2" (292 mm) from front edge, if used
1шт.
15
L55831
HOOD - side, R.H., used with L55693 frame
1шт.
15
L71803
HOOD - side, R.H., used with L73982 frame
1шт.
16
L55829
HOOD - side, L.H., used with L55693 frame
1шт.
16
L71805
HOOD
- side, L.H., used with L73982 frame
1шт.
16a
L70501
PLATE - air cleaner access, if used
1шт.
16b
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
4шт.
16c
92-6
LOCK WASHER,3/8"
4шт.
17
L55785
PANEL
- engine side, R.H.
1шт.
18
L55786
PANEL
- engine side, L.H.
1шт.
19
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
2шт.
20
195-104
WASHER,3/8"
- flat, 3/8"
2шт.
21
129-471
NUT
- weld type, 3/8" - 16 NC
1шт.
22
L55693
ARM
FRAME - ratiator and grille, one piece formed, order L73982 frame, L71803 hood side and L71805 hood side
1шт.
23
L73982
GUARD
FRAME - radiator and grille, Three piece welded
1шт.
Выбрано товаров: 30
