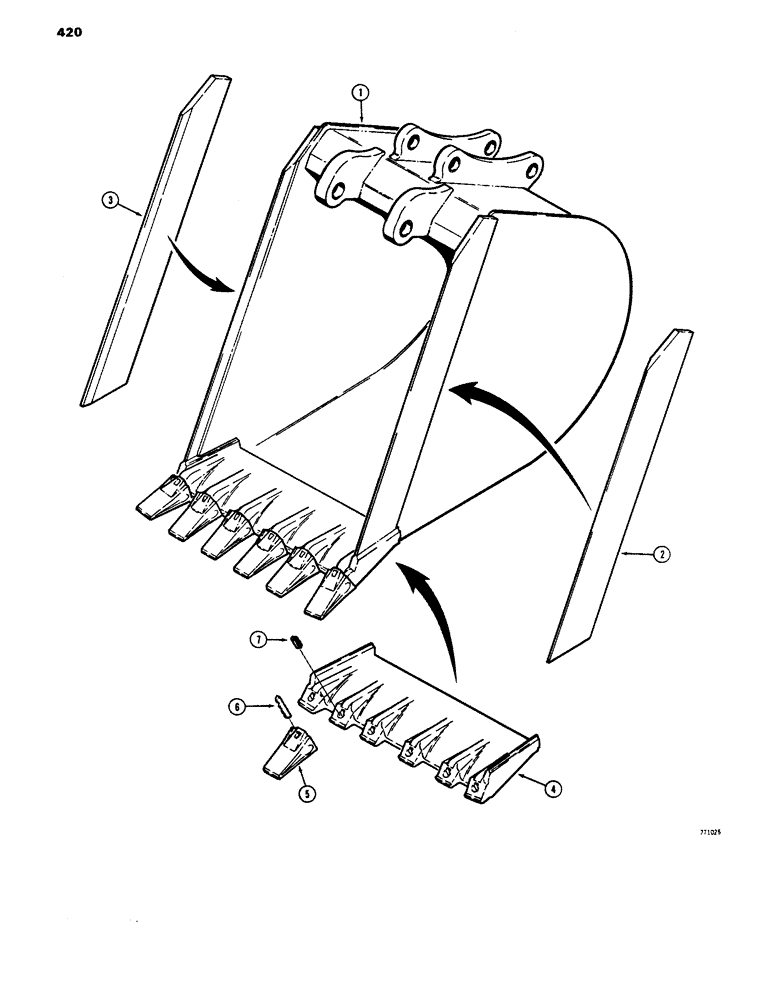

Запчасти Case 680E (420) - BACKHOE BUCKETS, TRENCHING BUCKETS (84) - BOOMS, DIPPERS & BUCKETS

1

L72900

BUCKET - 24 inch (610 mm) heavy duty, machinery item, see figure 2 for ordering, Includes: Ref. 2 - 7

1шт.

2

L72992

BLADE

- cutting, R.H. side

1шт.

3

L72993

BLADE

- cutting, L.H. side

1шт.

L72991

EDGE, CUTTING

BLADE ASSEMBLY - center, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

BLADE - center

1шт.

R38572

TOOTH

ASSEMBLY, Includes: Ref. 5 - 7

5шт.

5

NSS

NOT SOLD SEPARAT

POINT - tooth

1шт.

R38572 tooth point - Can also use part nbr R35317 tooth point.

1шт.

6

R35318

PIN

- tooth

1шт.

7

R35319

LOCK ASSY

LOCK - tooth

1шт.

1

L73212

BUCKET - 30 inch (762 mm) heavy duty, machinery item, see figure 2 for ordering, Includes: Ref. 2 - 7

1шт.

2

L72992

BLADE

- cutting, R.H. side

1шт.

3

L72993

BLADE

- cutting, L.H. side

1шт.

L73209

BLADE

ASSEMBLY - center, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

BLADE - center

1шт.

R38572

TOOTH

ASSEMBLY, Includes: Ref. 5 - 7

6шт.

5

NSS

NOT SOLD SEPARAT

POINT - tooth

1шт.

6

R35318

PIN

- tooth

1шт.

7

R35319

LOCK ASSY

LOCK - tooth

1шт.
