(416) - BACKHOE BUCKETS, TRENCHING BUCKETS, BUCKET TEETH - INCLUDED

Запчасти Case 680E (416) - BACKHOE BUCKETS, TRENCHING BUCKETS, BUCKET TEETH - INCLUDED (84) - BOOMS, DIPPERS & BUCKETS

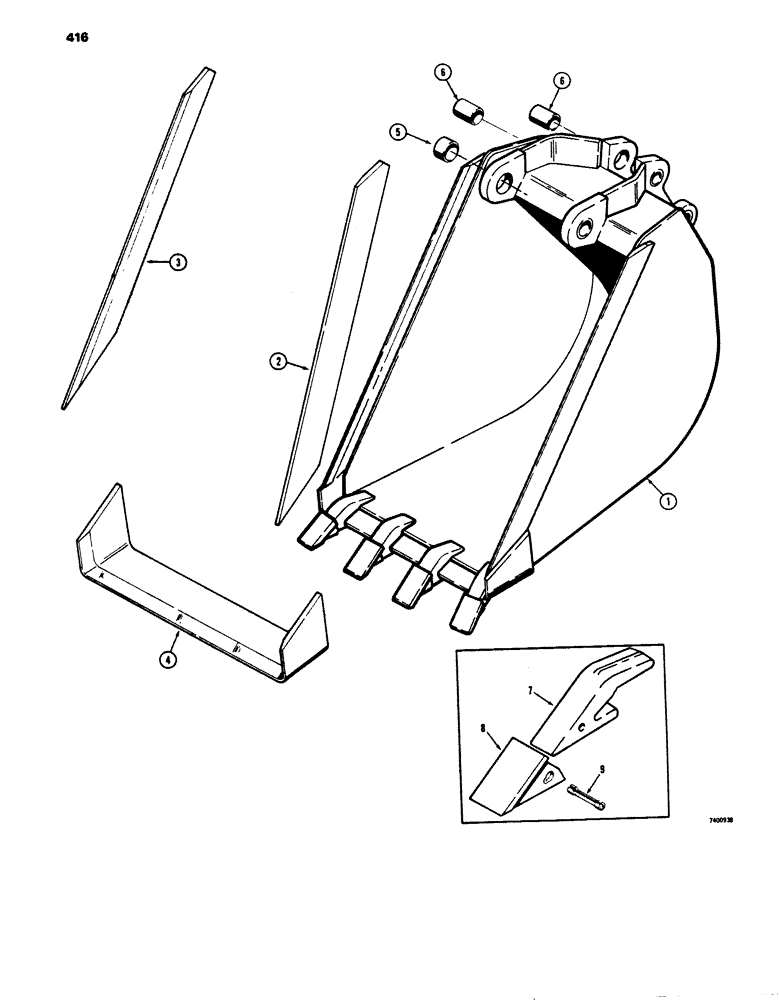

Схема запчастей Case 680E - (416) - BACKHOE BUCKETS, TRENCHING BUCKETS, BUCKET TEETH - INCLUDED (84) - BOOMS, DIPPERS & BUCKETS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

L51104

BUCKET - 24 inch (610 mm) high capacity, machinery item, see figure 2 for ordering, Includes: Ref. 2 - 6

1шт.

1

L59873

BUCKET - 24 inch (610 mm) high capacity, machinery item, see figure 2 for ordering, Includes: Ref. 2 - 6

1шт.

2

D41675

BLADE

- cutting, R.H. side of L51104 bucket

1шт.

2

L70084

EDGE, CUTTING

BLADE - cutting, R.H. side of L59873 bucket

1шт.

3

D41674

BLADE - cutting, L.H. side of L51104 bucket

1шт.

3

L70083

EDGE, CUTTING

BLADE - cutting, L.H. side of L59873 bucket

1шт.

4

D41673

EDGE, CUTTING

BLADE - cutting, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole

4шт.

1

L53132

BUCKET - 30 inch (762 mm) high capacity, machinery item, see figure 2 for ordering, Includes: Ref. 2 - 6

1шт.

1

L59585

BUCKET - 30 inch (762 mm) high capacity, machinery item, see figure 2 for ordering, Includes: Ref. 2 - 6

1шт.

2

D41675

BLADE

- cutting, R.H. side of L53132 bucket

1шт.

2

L70084

EDGE, CUTTING

BLADE - cutting, R.H. side of L59585 bucket

1шт.

3

D41674

BLADE - cutting, L.H. side of L53132 bucket

1шт.

3

L70083

EDGE, CUTTING

BLADE - cutting, L.H. side of L59585 bucket

1шт.

4

D41870

EDGE, CUTTING

BLADE - cutting, center

1шт.

5

D37405

BUSHING - bucket, at dipper arm

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole

4шт.

1

L55629

BUCKET - 36 inch (914 mm) high capacity, machinery item, see figure 2 for ordering, Includes: Ref. 2 - 6

1шт.

1

L59893

BUCKET - 36 inch (914 mm) high capacity, machinery item see figure 2 for ordering, Includes: Ref. 2 - 6

1шт.

2

D41675

BLADE

- cutting, R.H. side of L55629 bucket

1шт.

2

L70084

EDGE, CUTTING

BLADE - cutting, R.H. side of L55629 bucket

1шт.

3

D41674

BLADE - cutting, L.H. side of L55629 bucket

1шт.

3

L70083

EDGE, CUTTING

BLADE - cutting, L.H. side of L59893 bucket

1шт.

4

L43412

EDGE, CUTTING

BLADE - cutting, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole

4шт.

L43266

TOOTH

ASSEMBLY - includes Refs. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket teeth - included with bucket

1шт.

8

D39093

TOOTH

POINT - tooth, bucket teeth - included with bucket

1шт.

8a

D51750

BUCKET TOOTH POINT

POINT - tooth, heavy duty service option, not shown, bucket teeth - included with bucket

1шт.

9

D39094

BUCKET TOOTH KEY

FLEXPIN - point, bucket teeth - included with bucket

1шт.
