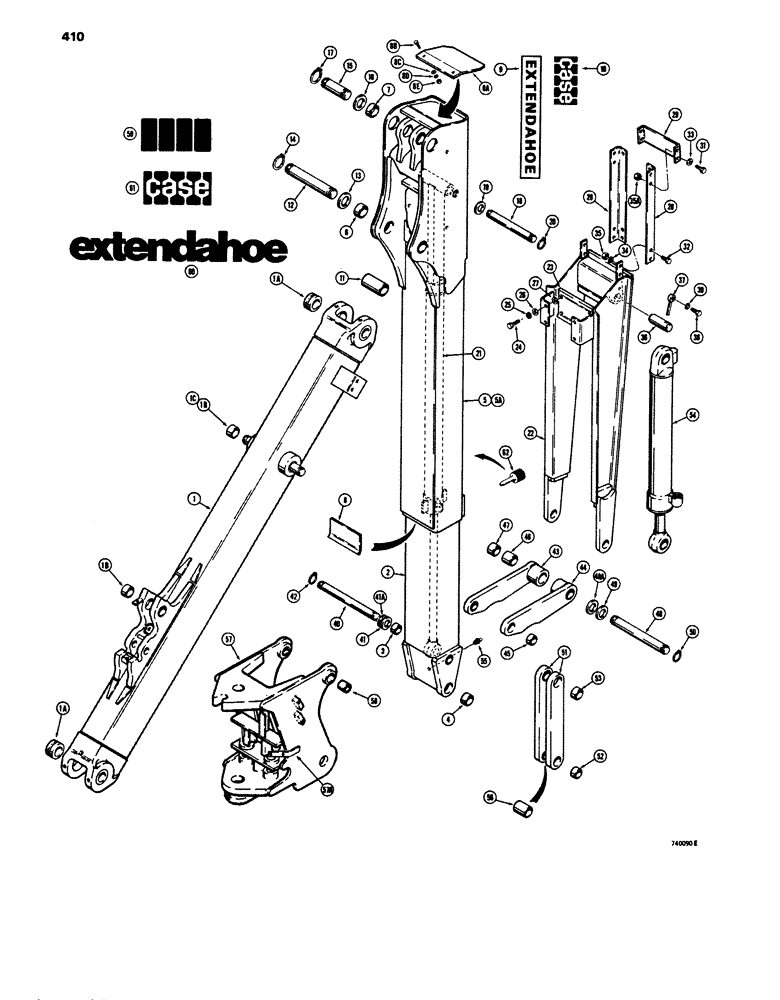

Запчасти Case 680E (410) - EXTENDABLE DIPPER AND RELATED PARTS (84) - BOOMS, DIPPERS & BUCKETS

1

L72808

BOOM

- backhoe, extandahoe, used before tractor sn. 9124704, Includes: Ref. 1A - 8

1шт.

1

L77934

BOOM

- backhoe, extendahoe, used on tractor sn. 9124707 thru 9125069, Includes: Ref. 1A - 8

1шт.

1

L79142

BOOM

- extendahoe, used on tractor sn. 9124704 and after

1шт.

1a

L70791

BUSHING,57.38mm ID x 82.55mm OD x 38.1mm L

- boom to tower and dipper

4шт.

1b

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- at cylinder mounting, 2-1/2" (64 mm) O.D.

2-4шт.

1c

L77788

BUSHING

- at boom cylinder mountng, 3" (76 mm) O.D., if used

2шт.

2

L54358

DIPPER

EXTENSION - dipper arm, inner, Includes: Ref. 3 and 4

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- at bucket link

2шт.

4

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- at bucket

2шт.

5

L55647

CHASSIS

ARM - dipper, models without end cover, Includes: Ref.

1шт.

5a

L79318

ARM

- dipper, models with end cover, Includes: Ref. 6 - 8, and Ref. 62

1шт.

6

L55734

BUSHING

- at boom pivot

2шт.

7

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- at dipper picot

2шт.

8

L57013

PLATE - wear

1шт.

8a

L78390

COVER ASSY

COVER - end, if used

1шт.

8b

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

8c

95-8

WASHER,1/2"

flat 1/2"

2шт.

8d

92-8

LOCK WASHER,1/2"

2шт.

8e

25-108

NUT,1/2"-13, G5

- hex self lock, 1/2"

2шт.

9

321-2058

DECAL

- "EXTENDAHOE"

2шт.

10

321-1572

DECAL

- "CASE", 4" (102 mm) high

2шт.

11

L58656

SPACER

-, Serial Range: dipper-boom

1шт.

12

L54388

AXLE PIN

PIN -, Serial Range: dipper-boom

1шт.

13

D41472

WASHER

- flat, 2-1/4"

2шт.

14

F40807

SNAP RING,#225, Ext

RING snap, , pin #225, Ext

2шт.

15

L73598

AXLE PIN

PIN - dipper, Serial Range: cylinder-dipper

1шт.

16

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16"

2шт.

17

D26919

SNAP RING,#200, Ext

RING snap, , pin #200, Ext

2шт.

18

L54407

AXLE PIN

PIN - extension, Serial Range: cylinder-dipper

1шт.

19

L79009

WASHER

- flat, 1-1/2"

2шт.

20

D25279

SNAP RING,M35, Int

RING - pin retaining

2шт.

21

REF

INSTRUCTION

CYLINDER - dipper extension, see figure 368 or 370

1шт.

22

L76923

GUIDE

- bucket cylinder, Includes: Ref. 23 and 24, Serial Range: -9127939

1шт.

22

L100120

GUIDE

- bucket cylinder, Includes: Ref. 23 and 24, Start Serial: 9127939

1шт.

23

L54741

PLATE

- wear, Serial Range: -9127939

1шт.

23

L100121

PLATE ASSY.

PLATE - wear, Start Serial: 9127939

1шт.

24

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

used with L76923 guide Hex, 3/8"-16 x 1 1/4", G8, Full Thd

4шт.

24

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

Used with L100120 guide Hex, 1/2"-13 x 1 1/4", G8, Full Thd

4шт.

25

92-6

LOCK WASHER,3/8"

if used 3/8"

4шт.

25

92-8

LOCK WASHER,1/2"

if used 1/2"

4шт.

26

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, 3/8", hardened, if used

1шт.

26

R24323

WASHER

- flat, 1/2" hardened, if used

1шт.

27

D41740

WASHER

SPACER - L54741 wear plate

1шт.

27

D64050

WASHER

SPACER - L100121 wear plate

1шт.

28

L78977

ANGLE

- bucket cylinder hose support

2шт.

29

L78976

BRACKET

- hose support, replaces straight bar on some models

1шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

32

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

33

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

34

92-6

LOCK WASHER,3/8"

4шт.

35

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

35a

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self lock, 3/8" - 16 NC

2шт.

36

L57029

PIN

- bucket cylinder to bucket cylinder guide

1шт.

37

R17756

ROD,12.7mm OD x 109.54mm L

LOCK - pin retaining

1шт.

38

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

39

92-8

LOCK WASHER,1/2"

1шт.

40

L58783

AXLE PIN

PIN - dipper extension cylinder and bucket cylinder guide to dipper extension

1шт.

41

L55703

WASHER

- special

2шт.

41a

L79009

WASHER

- shim, hardened

1шт.

42

T37909

SNAP RING,#150, Ext

RING snap, , pin #150, Ext

2шт.

43

L57903

DRAG LINK

LINK ASSEMBLY - guide, L.H., Includes: Ref. 46 and 47

1шт.

44

L57904

DRAG LINK

LINK ASSEMBLY - guide, R.H., Includes: Ref. 46 and 47

1шт.

45

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- guide link, at bar end

1шт.

46

D40089

BUSHING

- guide link, at boss, long

1шт.

47

D34354

BUSHING,44.68mm ID x 53.98mm OD x 38.1mm L

- guide link, at boss, short

1шт.

48

L74047

AXLE PIN

PIN - guide and dump link to bucket cylinder at rod end

1шт.

L74047 pin - Refer to CE Service Bulletin 9012 (Utility Service Bulletin U46-78) for shims.

1шт.

48a

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, shim

1шт.

50

D25280

SNAP RING,#175, Ext

RING snap, , pin #175, Ext

2шт.

51

L55835

DRAG LINK

LINK ASSEMBLY - dump, Includes: Ref. 52 and 53

2шт.

52

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link, 1-1/2" (38 mm) I.D.

1шт.

53

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- link, 1-3/4" (44 mm) I.D.

1шт.

54

REF

INSTRUCTION

CYLINDER - hydraulic, bucket, parts list figures 364 or 366

1шт.

55

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

56

L55723

SPACER

- dump links

1шт.

57

L74720

BOOM

TOWER - backhoe swing, used before sn. 9125069 for mounting and related parts, see figure 404

1шт.

57

L79025

BOOM

TOWER - backhoe, used on tractor sn. 9125069 and after, for mounting and related parts, see figure 404

1шт.

57a

L59101

BRACKET - hose clamp, part of L74720 tower only, Includes: Ref. 58

1шт.

58

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- tower, at boom cylinders

2шт.

59

321-3120

DECAL

- tread

2шт.

60

321-3139

DECAL

- extendahoe

2шт.

61

321-2427

EMBLEM

DECAL - "CASE"

2шт.

61

219-107

NOZZLE CAP

FITTING - grease, special, use for lubrication of dipper arm (store in tool box)

1шт.
