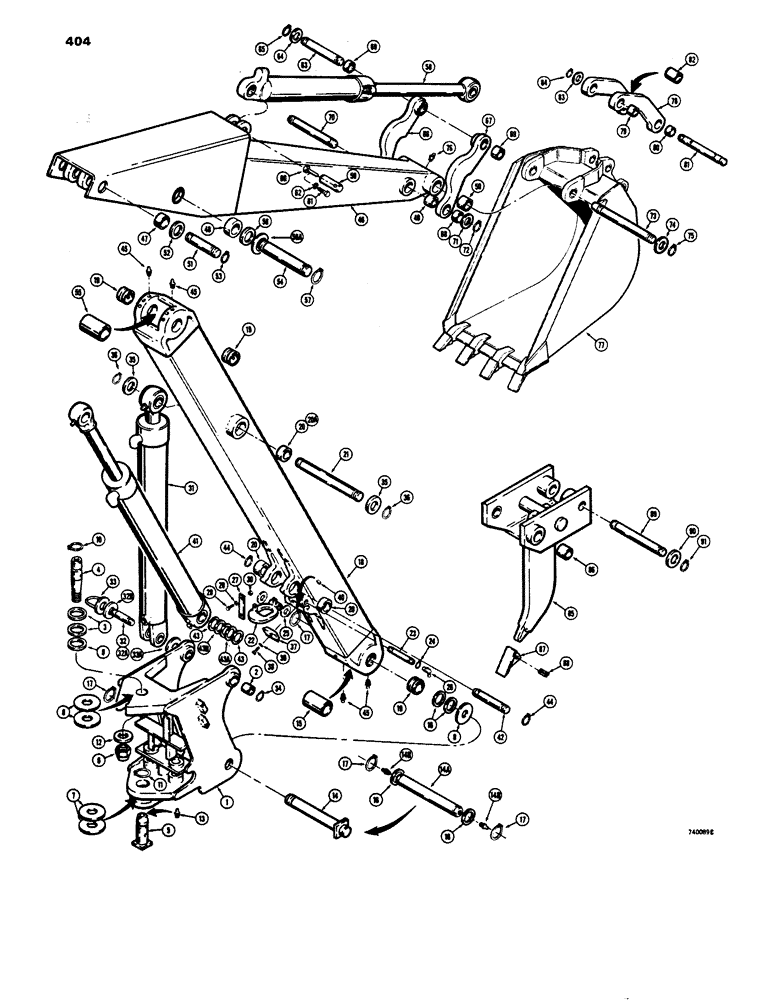

Запчасти Case 680E (404) - TOWER, BOOM, DIPPER ARM AND BUCKET (84) - BOOMS, DIPPERS & BUCKETS

1

58218

TOWER - backhoe swing, used before tractor S/N 9122041, Includes: Ref. 2 and 2A

1шт.

1

L74619

BOOM

TOWER - backhoe swing, used on tractor S/N 9122041 thru 9125069, Includes: Ref. 2 and 2A

1шт.

1

L79025

BOOM

TOWER - backhoe swing, used on tractor S/N 9125069 and after, Includes: Ref. 2 and 2A

1шт.

2

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

Tower, at boom cylinders

2шт.

2a

L78951

BUSHING

Tower, at boom, if used, not shown

1шт.

3

195-2167

WASHER,2 5/8" x 4" x .109"

WASHER - spacer, 2-1/2" (63 mm)

1шт.

4

L78203

PIN

SPARE PART Tower mounting, upper

1шт.

5

L59120

AXLE PIN

Tower mounting, lower

1шт.

6

25-1528

JAM NUT

Hex., 1-3/4" - 12 NF, thin height, if used

1шт.

6

131-484

NUT,1 3/4"-12

Thin height, can be used to replace plain nut, if used

1шт.

7

L47461

WASHER

SHIM - pin mounting, lower pin

1шт.

L47461 shim washers - These are for application when normal wear occurs at the lower swing pivot area.

1шт.

Refer to CE Service Bulletin 41-78 (also Ag Bulletin U30-78).

1шт.

8

L79228

WASHER,64.26mm ID x 152.4mm OD x 2.16mm Thk

SHIM - pin mounting, upper pin and boom pin

1шт.

9

L47700

WASHER

Special, upper pin

1шт.

10

L16015

RING

Upper pin retaining

1шт.

11

L59033

SNAP RING,#212, Ext

Lower pin

1шт.

12

L59117

WASHER

Special, hardened, 3/4"

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Straight, 1/8" NPT

1шт.

14

L74618

AXLE PIN

Boom to tower, used before tractor S/N 9125069

1шт.

14a

L79012

AXLE PIN

Boom to tower, used on tractor S/N 9125069 and after

2шт.

14b

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Straight, 1/8" NPT

2шт.

15

L58656

SPACER

Boom

1шт.

16

D41472

WASHER

Flat, used as shim

1шт.

17

F40807

SNAP RING,#225, Ext

Pin

1-2шт.

18

L72807

SPARE PART Backhoe, used before tractor S/N 9124704

1шт.

18

L77902

SPARE PART Backhoe, used on tractor S/N 9124704 and after, Includes: Ref. 19 - 20A

1шт.

19

L70791

BUSHING,57.38mm ID x 82.55mm OD x 38.1mm L

Boom ends

4шт.

L70791 bushing - O.D. is 3.25", I.D. is 2.25"

1шт.

20

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

At cylinder mounting, 2-1/2" (64 mm) O.D.

2-4шт.

20a

L27788

BUSHING - at boom cylinder mounting, 3" (76 mm) O.D., if used

2шт.

21

L54419

AXLE PIN

Boom, Serial Range: cylinder-boom

1шт.

22

L59196

OIL SEAL

RING - boom lock

1шт.

23

D42611

PIN

Boom lock

1шт.

24

D25279

SNAP RING,M35, Int

Pin retaining

2шт.

25

A11990

WASHER

Special

2шт.

26

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

27

L73300

STRAP

Boom lock

1шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

29

95-6

WASHER,3/8"

2шт.

30

131-6

LOCK NUT,3/8"-16, GC

2шт.

31

REF

INSTRUCTION

CYLINDER - boom, see figure 356 or 358

2шт.

32

L58075

PIN

SPARE PART Boom cylinder to tower, used before tractor S/N 9124614

2шт.

32a

D40037

PIN,38.1mm OD x 127mm L

Boom cylinder to tower, used on tractor S/N 9124614 and after

2шт.

32b

95-24

WASHER,1 1/2" x 3 1/2" x .18"

Spacer, outer, used with D4037 pin

1шт.

32c

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Straight, 1/8" NPT, D40037 pin, not shown

2шт.

33

L58072

GUIDE

SPARE PART Hose, boom cylinder, if used

2шт.

33a

L79009

WASHER

Shim, inner

1шт.

34

D25279

SNAP RING,M35, Int

Pin retaining

4шт.

35

195-2155

WASHER,2 1/16" x 3" x .109"

Pin

2шт.

36

D36919

RING - retaining

2шт.

37

L58319

BLOCK

Stop, used before S/N 9127880

1шт.

37

L79185

BLOCK

Stop, used on S/N 9127880 and after

1шт.

38

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Stop block mountng, if used

1шт.

39

95-6

WASHER,3/8"

1шт.

40

131-94

LOCK NUT,3/8"-16, GB

1шт.

41

REF

INSTRUCTION

CYLINDER - hydraulic, dipper, see figure 360 or 362

1шт.

42

L54437

AXLE PIN

Dipper, Serial Range: cylinder-boom

1шт.

43

L11917

WASHER

SPACER - dipper cylinder to boom, .07" (1.78 mm) thick

2шт.

43a

L47422

WASHER,51.3mm ID x 114mm OD x 6.35mm Thk

SPACER - dipper cylinder to boom, .25" (6.35 mm) thick

2шт.

43b

L47424

WASHER,51.3mm ID x 114mm OD x 4.76mm Thk

SPACER - dipper cylinder to boom, .18" (4.76 mm) thick

2шт.

44

D26919

SNAP RING,#200, Ext

Dipper cylinder pin

2шт.

45

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Straight, 1/8" NPT

4шт.

46

L55909

BOOM

DIPPER - backhoe, Includes: Ref. 47 - 50

1шт.

47

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

Dipper cylinder mounting

2шт.

48

L55734

BUSHING

Dipper pivot

2шт.

49

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

Dipper at bucket link

2шт.

50

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

Dipper at bucket

2шт.

51

L73598

AXLE PIN

Dipper, Serial Range: cylinder-dipper

1шт.

52

195-2155

WASHER,2 1/16" x 3" x .109"

Dipper cylinder pin

2шт.

53

D26919

SNAP RING,#200, Ext

Pin

2шт.

54

L54388

AXLE PIN

, Serial Range: Dipper-boom

1шт.

55

L58656

SPACER

Boom end casting

1шт.

56

D41472

WASHER

Flat, 3" (76 mm) O.D.

1шт.

56a

L79228

WASHER,64.26mm ID x 152.4mm OD x 2.16mm Thk

Flat, 6" (152 mm) O.D.

1шт.

57

F40807

SNAP RING,#225, Ext

Pin

2шт.

58

REF

INSTRUCTION

CYLINDER - hydraulic, bucket, see figure 364 or 366

1шт.

59

L57029

PIN

Bucket, Serial Range: cylinder-dipper

1шт.

60

R17756

ROD,12.7mm OD x 109.54mm L

PIN - retaining

1шт.

61

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

62

92-8

LOCK WASHER,1/2"

1шт.

63

D37611

PIVOT PIN,44.45mm OD x 255.59mm L

Bucket cylinder to bucket link

1шт.

64

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

Bucket cylinder pin

1шт.

65

D25280

SNAP RING,#175, Ext

Pin

2шт.

66

L55934

DRAG LINK

Bucket guide, LH, Includes: Ref. 68 and 69

1шт.

67

L55933

DRAG LINK

Bucket guide, RH, Includes: Ref. 68 and 69

1шт.

68

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

Link, for 1-1/2" (38 mm) pin dia.

1шт.

69

L58710

BUSHING,44.45mm ID x 53.98mm OD x 44.45mm L

Link, for 1-3/4" (44 mm) pin dia.

1шт.

70

D53812

PIVOT PIN,1.5" OD x 10.14" L

Guide, Serial Range: link-dipper

1шт.

71

L79009

WASHER

Flat, 1-1/2" (38 mm) I.D.

1шт.

72

D25279

SNAP RING,M35, Int

Pin retaining

2шт.

73

L79166

AXLE PIN

, Serial Range: Bucket-dipper

1шт.

74

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

(46 mm ) ID

1шт.

75

D25280

SNAP RING,#175, Ext

Pin

2шт.

76

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

77

REF

INSTRUCTION

BUCKET - backhoe, see figures 414 thru 420 for proper bucket

1шт.

78

L55936

DRAG LINK

Backhoe, Includes: Ref. 79 and 80

2шт.

79

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

Link, for 1-3/4" (44 mm) pin dia.

1шт.

80

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

Link, for 1-1/2" (38 mm) pin dia.

1шт.

81

L78991

PIN

, Serial Range: Link-bucket

1шт.

85

D37450

SPACER,40.89mm ID x 48.26mm OD x 63.5mm L

SPACER -, Serial Range: link-bucket

1шт.

83

L79009

WASHER

Flat, L41109 pin

2шт.

84

D25279

SNAP RING,M35, Int

Pin retaining

2шт.

85

D54136

SUPPORT ASSY.

FROST POINT - backhoe, Includes: Ref. 86

1шт.

86

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

Frost point

2шт.

87

D43416

POINT

Tooth

1шт.

88

D43417

PIN

FLEX - point

1шт.

89

D54218

PIN,38.1mm OD x 345.95mm L

Bucket link to front point

1шт.

90

195-63

WASHER,1 5/8" x 3 1/4" x .180"

Used with D54218 pin only

2шт.

91

D25279

SNAP RING,M35, Int

Pin retaining

2шт.
