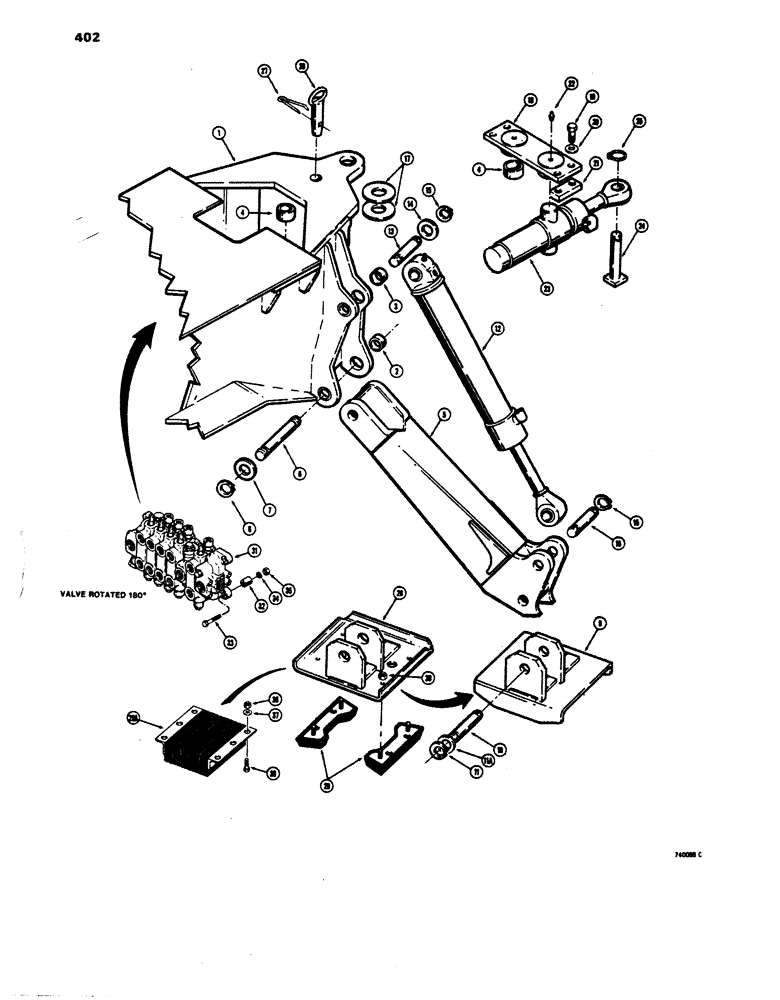

Запчасти Case 680E (402) - BACKHOE MOUNTING FRAME AND STABILIZERS (84) - BOOMS, DIPPERS & BUCKETS

1

REF

INSTRUCTION

FRAME ASSEMBLY - tractor and backhoe, see figure 422, Includes: Ref. 2 - 4

1шт.

2

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- stabilizer, Serial Range: leg-frame

4шт.

3

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- stabilizer cylinder to frame

4шт.

4

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

- swing cylinder

2шт.

5

L51427

STABILIZER

LEG - stabilizer, used before tractor sn. 9122407, uses L70871, L58956, or L59831 foot

2шт.

5

L72990

STABILIZER

LEG - stabilizer, used on tractor sn. 9122407 thru 9127845, uses L73675 or L73677 foot

2шт.

5

L78877

STABILIZER

LEG - stabilizer, used on tractor sn. 9127845 and after, uses L73675 or L73677 foot

2шт.

6

D42911

PIN

-, Serial Range: stabilizer-chassis

2шт.

7

195-2155

WASHER,2 1/16" x 3" x .109"

- spacer

1шт.

8

D26919

SNAP RING,#200, Ext

RING snap, #200, Ext

4шт.

9

L57696

PAD

FOOT - stabilizer, standard, uses D26001 pin, order L70871 foot and L71043 pin for service

2шт.

9

L70871

FOOT REST

FOOT - stabilizer, standard, uses L71043 pin, used with L51427 leg, Serial Range: -9122407

2шт.

9

L73675

PAD

FOOT - stabilizer, standard, uses L71043 pin, used with L72990 leg, Start Serial: 9122407

2шт.

10

D26001

PIN

- stabilizer to pad, 8-1/16" (204 mm) long, if used

2шт.

10

L71043

AXLE PIN

PIN - stabilizer to pad, 8-5/16" (211 mm) long, if used

2шт.

11

D25279

SNAP RING,M35, Int

RING - retaining

4шт.

11a

195-2142

WASHER,1 17/32" x 2 1/16" x .109"

- spacer

1шт.

12

REF

INSTRUCTION

CYLINDER - stabilizer, see figure 348

2шт.

13

D25079

AXLE PIN,44.45mm OD x 157.2mm L

PIN - stabilizer to chassis

2шт.

14

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- spacer

4шт.

15

D25280

SNAP RING,#175, Ext

RING snap, #175, Ext

8шт.

16

D25079

AXLE PIN,44.45mm OD x 157.2mm L

PIN - stabilizer, Serial Range: cylinder-stabilizer

2шт.

17

L54129

SHIM

- spacer, swing tower and main frame

4шт.

18

L57106

PLATE - swing, cylinder mounting

1шт.

19

13-1644

BOLT,Hex, 1" - 8 x 2-3/4", Gr 5

- 1" - 8 NC x 2-3/4", swing plate to chassis

4шт.

20

D30196

WASHER

- special hardened

4шт.

21

L54782

BLOCK

- bolt retaining

2шт.

22

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease

2шт.

23

REF

INSTRUCTION

CYLINDER - swing, see figure 350 or 352

2шт.

24

L58883

AXLE PIN

PIN - swing, Serial Range: cylinder-tower

2шт.

25

D25280

SNAP RING,#175, Ext

RING snap, , pin #175, Ext

2шт.

26

L70598

AXLE PIN

PIN - swing lock

1шт.

27

L70149

PIN - retaining

1шт.

28

L58956

PAD

FOOT - cemetery and street, uses R31222 rubber pad, used with L51427 leg, Serial Range: -9122407

2шт.

28

L73677

PAD

FOOT - cemetery and street, uses D61368 rubber pad, used with L72990 leg, Start Serial: 9122407

2шт.

29

R31222

SHOE

PAD - rubber, bolt on, used with L59856 foot

4шт.

R31222 pad - Reference in description should be to L58956 (not L59856).

1шт.

29a

D61368

PAD

Rubber, bolt on, used with L59831 or L73677 foot

2шт.

30

D29712

SPECIAL NUT

- hex, self lock, 7/16" - 20 NF, if used

8шт.

31

REF

INSTRUCTION

VALVE - backhoe control, see figure 314

1шт.

32

L55306

SPACER

- backhoe valve mounting

3шт.

33

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 3"

3шт.

34

92-8

LOCK WASHER,1/2"

3шт.

35

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

36

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

If used Hex, 5/8"-11 x 1 3/4", G5, Full Thd

8шт.

37

95-10

WASHER,5/8"

- flat, , if used 5/8"

16шт.

38

25-1010

NUT,5/8"-11, G5

If used 5/8"-11, G5

8шт.
