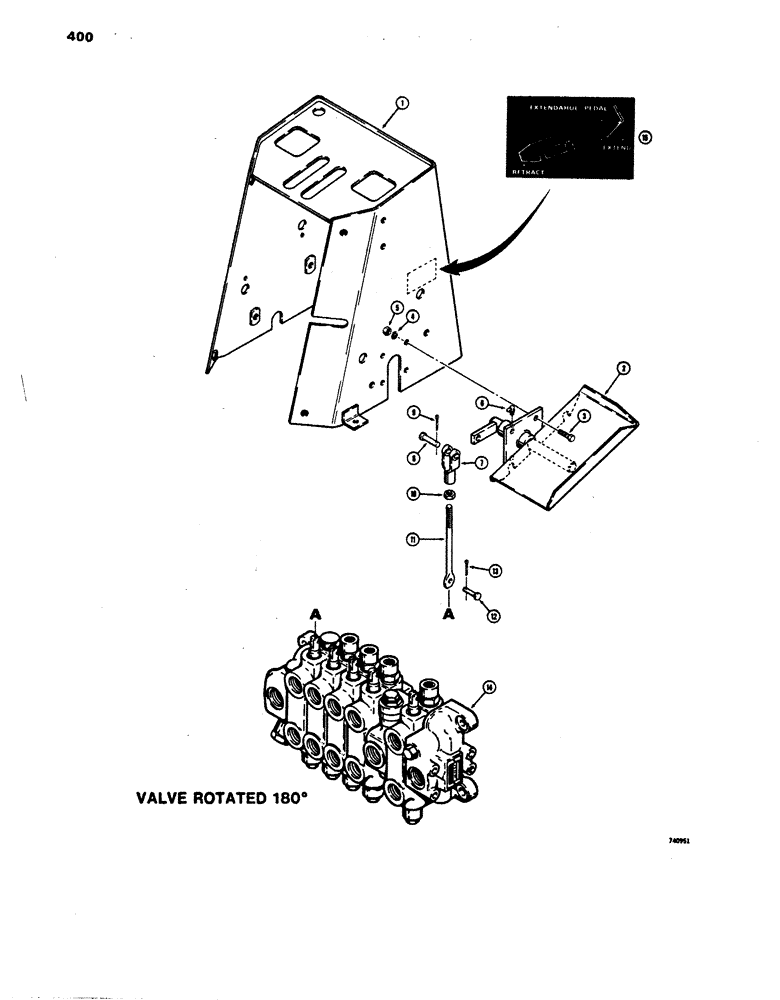

Запчасти Case 680E (400) - EXTENDABLE DIPPER CONTROL WITH HAND SWING MODELS (84) - BOOMS, DIPPERS & BUCKETS

1

REF

INSTRUCTION

CONSOLE - backhoe control, see figure 394

1шт.

2

L58121

PEDAL - extendahoe control

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

4шт.

6

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, 1/8" NPT, self-trapping

1шт.

7

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - clevis, 3/8"

1шт.

8

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

9

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

10

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., lock, 3/8" - 24 NF

1шт.

11

L58188

ROD - extendahoe control

1шт.

13

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

14

REF

INSTRUCTION

VALVE - backhoe and extendahoe control, see figure 314

1шт.

15

321-2747

DECAL

- extendahoe control

1шт.
