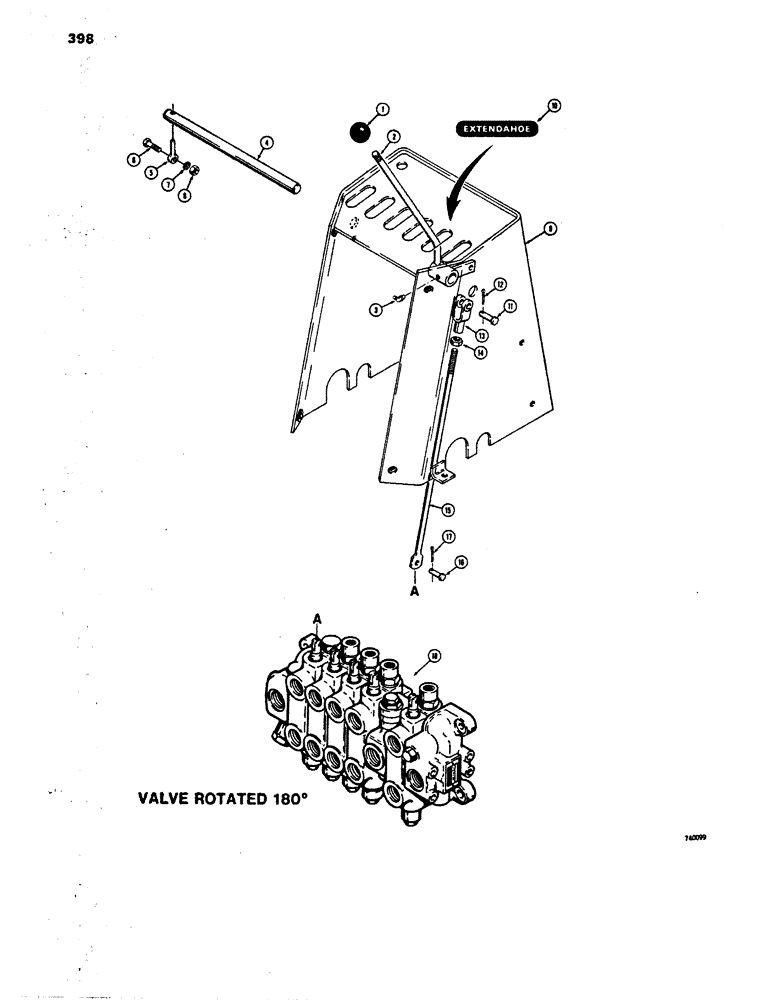

Запчасти Case 680E (398) - EXTENDABLE DIPPER CONTROL WITH FOOT SWING MODELS (84) - BOOMS, DIPPERS & BUCKETS

1

L54563

KNOB

- control lever

1шт.

2

L59708

HANDLE

LEVER - control, extendahoe

1шт.

3

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING - grease, 90 deg., 1/8" NPT

1шт.

4

L55445

SHAFT

- control lever

1шт.

5

L55570

END ASSY.

ROD EYE - shaft retaining

1шт.

6

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

1шт.

7

92-5

LOCK WASHER,5/16"

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" - 18 NC

1шт.

9

REF

INSTRUCTION

CONSOLE - backhoe control, see figure 390

1шт.

10

321-2724

DECAL

- extendahoe control

1шт.

11

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

12

132-26

COTTER PIN

PIN split (Cotter), 3/32" x 3/4"

1шт.

13

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - rod end, 3/8"

1шт.

14

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., lock, 3/8" - 24 NF

1шт.

15

L55436

ROD

- control, Serial Range: lever-valve

1шт.

16

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

1шт.

17

132-26

COTTER PIN

PIN split (Cotter), 3/32" x 3/4"

1шт.

18

REF

INSTRUCTION

VALVE - backhoe and extendahoe control, see figure 314

1шт.
