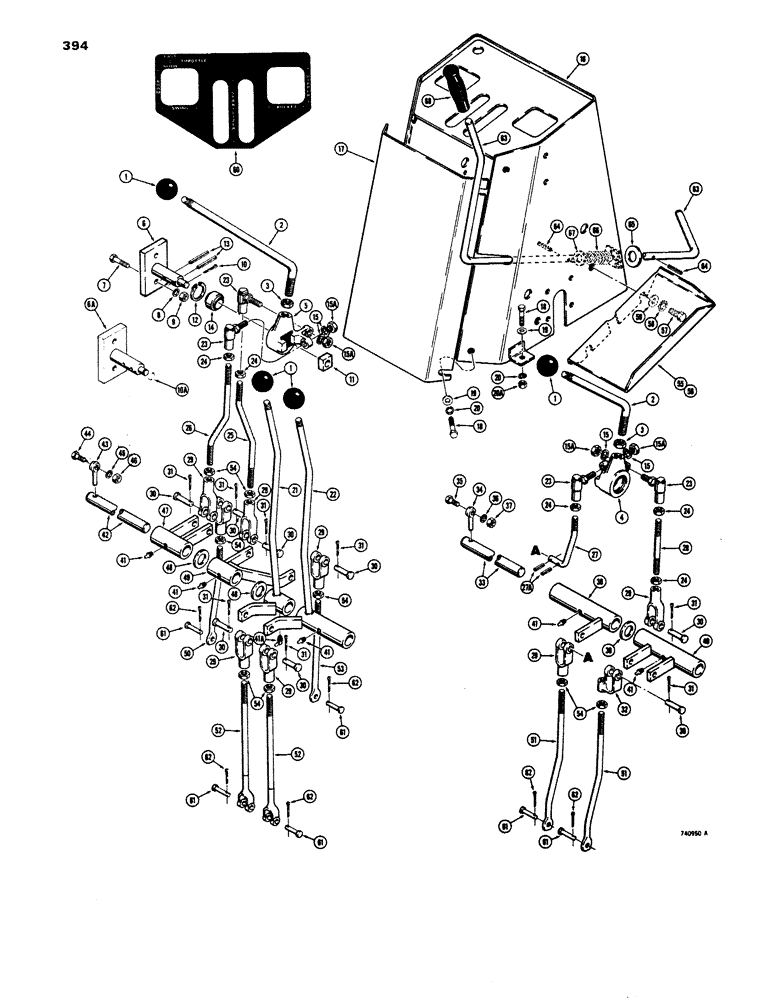

Запчасти Case 680E (394) - BACKHOE CONTROLS WITH HAND SWING (84) - BOOMS, DIPPERS & BUCKETS

1

L54563

KNOB

- control levers

4шт.

2

L58185

LEVER

- backhoe control

2шт.

3

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex., jam 5/8"

2шт.

4

D38303

ADAPTER

BELLCRANK - dual lever control, R.H.

1шт.

5

D38302

ADAPTER

BELLCRANK - dual lever control, L.H.

1шт.

6

D38299

SUPPORT

PIVOT - dual lever control, uses cotter pin - Ref. 10

2шт.

6a

L78119

PIVOT PIN

PIVOT - dual lever control, uses retaining pin - Ref. 10A

2шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

4шт.

10

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Used with Ref. 6 only 3/32" x 5/8"

2шт.

10a

A11538

SNAP RING,#50, Ext

Ring, Snap, , used with Ref. 6A only #50, Ext

2шт.

11

D38305

BLOCK

- wear, bellcrank

2шт.

12

CASD38298

RING

snap, 1.438", Int, #143

2шт.

13

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

4шт.

14

D38297

SPHERICAL BEARING,22.23mm ID x 36.51mm OD x 19.43mm W

- self-aligning

2шт.

15

92-6

LOCK WASHER,3/8"

4шт.

15a

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, lock, 3/8"

4шт.

16

L58163

BOOM

CONSOLE - backhoe control

1шт.

17

L55451

COVER ASSY

COVER - backhoe console

1шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

19

95-6

WASHER,3/8"

- flat, 3/8"

6шт.

20

92-6

LOCK WASHER,3/8"

6шт.

20a

25-106

NUT,3/8"-16, G5

- hex/. 3/8" - 16 NC

2шт.

21

L58125

LEVER

- stabilizer, L.H.

1шт.

22

L58126

LEVER

- stabilizer, R.H.

1шт.

23

D38296

JOINT

BALLJOINT - dual lever control

4шт.

24

25-156

JAM NUT,Jam, 3/8"-24, G5

- lock, 3/8"

5шт.

25

L58113

ROD - boom control

1шт.

26

L58110

ROD - swing control, upper

1шт.

27

L58116

ROD - bucket control, upper

1шт.

27a

138-53

LOCK PIN,1/8" x 1/2", Slotted

PIN, , rod retaining 1/8" x 1/2", Slotted

2шт.

28

L58108

ROD - dipper control, upper

1шт.

29

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - clevis, 3/8"

8шт.

30

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

8шт.

31

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

8шт.

32

L11182

YOKE,3/8" - 24

- clevis, offset

1шт.

33

L55445

SHAFT

- pivot, control

1шт.

34

L55570

END ASSY.

RETAINER - pivot shaft

1шт.

35

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

36

92-5

LOCK WASHER,5/16"

1шт.

37

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" - 18 NC

1шт.

38

L58115

WASHER

BELLCRANK - bucket control

1шт.

39

195-2091

WASHER,15/16" x 1 3/8" x .219"

- spacer, 7/8"

1шт.

40

L58114

WASHER

BELLCRANK - dipper control

1шт.

41

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, 1/8" NPT, self-tapping

5шт.

41a

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING - grease, 90 deg.

1шт.

42

L55445

SHAFT

- control

1шт.

43

L55570

END ASSY.

RETAINER - control shaft

1шт.

44

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

1шт.

45

92-5

LOCK WASHER,5/16"

1шт.

46

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" - 18 NC

1шт.

47

L58120

WASHER

BELLCRANK - swing control

1шт.

48

195-2091

WASHER,15/16" x 1 3/8" x .219"

- spacer, 7/8"

1шт.

49

L58124

WASHER

BELLCRANK - boom control

1шт.

50

L58117

ROD

- swing

1шт.

51

L58111

ROD

- bucket and dipper control

2шт.

52

L58187

ROD - stabilizer control

2шт.

53

L58112

ROD

- boom control

1шт.

54

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., lock, 3/8" - 16 NC

8шт.

55

L58128

FOOT REST - R.H.

1шт.

56

L58127

FOOT REST - L.H.

1шт.

57

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

4шт.

58

92-8

LOCK WASHER,1/2"

4шт.

59

195-2051

WASHER,17/32" x 13/16" x .060"

- flat, 1/2"

4шт.

60

321-2746

DECAL

- dual lever control

1шт.

61

214-3

X

PIN - clevis, 5/16"

6шт.

62

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

6шт.

63

L59332

HANDLE

LEVER - boom lock release

1шт.

64

138-135

LOCK PIN,1/4" x 1 1/8", Slotted

PIN, LOCK, 1/4" x 1 1/8", Slotted

2шт.

65

D53273

WASHER,23.02mm ID x 57.15mm OD x 1.41mm Thk

- special hardened

1шт.

66

F41514

SPRING

- boom lock

1шт.

67

95-10

WASHER,5/8"

- flat, 5/8"

1шт.

68

L52477

GRIP

- handle, boom lock release

1шт.

41

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, 1/8" NPT, self-tapping

5шт.

41a

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING - grease, 90 deg.

1шт.

42

L55445

SHAFT

- control

1шт.

43

L55570

END ASSY.

RETAINER - control shaft

1шт.

44

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

1шт.

45

92-5

LOCK WASHER,5/16"

1шт.

46

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" - 18 NC

1шт.

47

L58120

WASHER

BELLCRANK - swing control

1шт.

48

195-2091

WASHER,15/16" x 1 3/8" x .219"

- spacer, 7/8"

1шт.

49

L58124

WASHER

BELLCRANK - boom control

1шт.

50

L58117

ROD

- swing

1шт.

51

L58111

ROD

- bucket and dipper control

2шт.

52

L58187

ROD - stabilizer control

2шт.

53

L58112

ROD

- boom control

1шт.

54

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., lock, 3/8" - 16 NC

8шт.

55

L58128

FOOT REST - R.H.

1шт.

56

L58127

FOOT REST - L.H.

1шт.

57

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

4шт.

58

92-8

LOCK WASHER,1/2"

4шт.

59

195-2051

WASHER,17/32" x 13/16" x .060"

- flat, 1/2"

4шт.

60

321-2746

DECAL

- dual lever control

1шт.

61

214-3

X

PIN - clevis, 5/16"

6шт.

62

132-26

COTTER PIN

PIN split (Cotter), 3/32" x 3/4"

6шт.

63

L59332

HANDLE

LEVER - boom lock release

1шт.

64

138-135

LOCK PIN,1/4" x 1 1/8", Slotted

PIN, LOCK, 1/4" x 1 1/8", Slotted

2шт.

65

D53273

WASHER,23.02mm ID x 57.15mm OD x 1.41mm Thk

- special hardened

1шт.

66

F41514

SPRING

- boom lock

1шт.

67

95-10

WASHER,5/8"

- flat, 5/8"

1шт.

68

L52477

GRIP

- handle, boom lock release

1шт.
