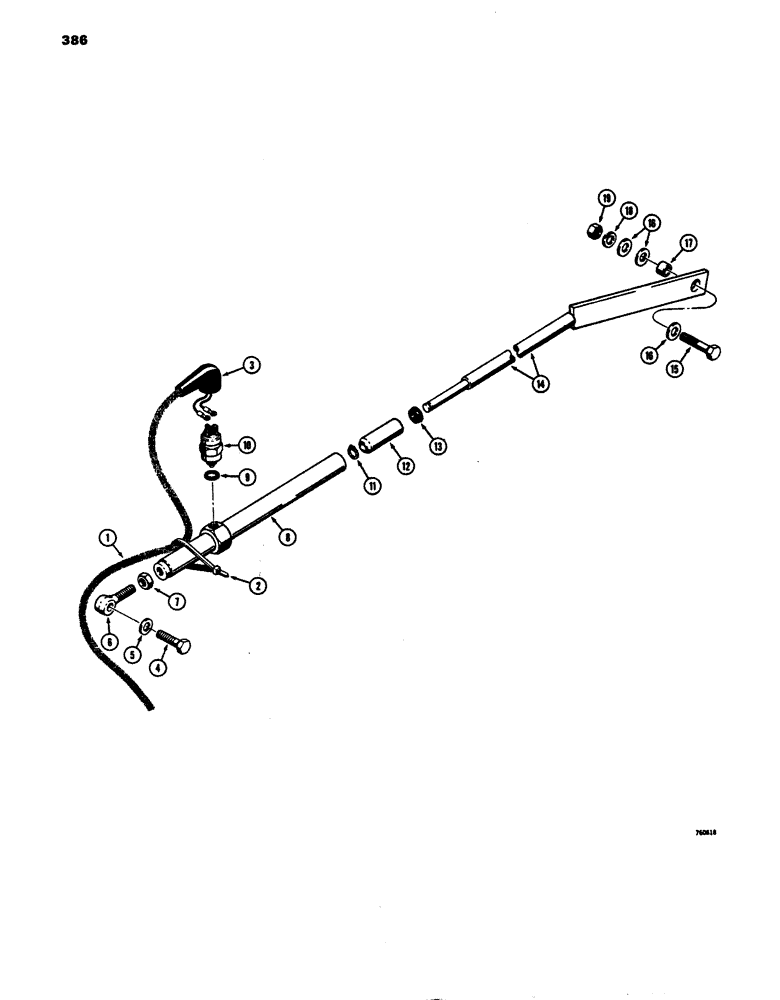

Запчасти Case 680E (386) - LOADER CONTROL, RETURN-TO-DIG PARTS, TRACTOR SN 9118631 AND (82) - FRONT LOADER & BUCKET

1

L58334

HARNESS

- front wiring

1шт.

2

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - harness tie

6шт.

3

L71343

BOOT - switch, if used

1шт.

L71343 boot - Later units did not use this part.

1шт.

4

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

1шт.

5

195-33

WASHER,1/2"

- flat, , if used 1/2"

1шт.

L71239

RETURN-TO-DIG ASSEMBLY - loader control, Includes: Ref. 6 - 14

1шт.

6

L73773

EYE

- rod

1шт.

7

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, lock, 1/2"-13 NC

1шт.

8

L73093

TUBE,4.03" L

- outer

1шт.

9

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- switch

1шт.

10

L71304

SWITCH

- return-to-dig

1шт.

11

A11538

SNAP RING,#50, Ext

RING snap, #50, Ext

1шт.

12

L72720

TUBE,0.52" ID x 0.995" OD x 2.93" L

- inner slide

1шт.

13

L71557

SEAL

SEAL - inner tube

1шт.

14

L72771

ROD

- return-to-dig

1шт.

15

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 NC x 2-1/4"

1шт.

16

95-8

WASHER,1/2"

flat 1/2"

3шт.

17

L57298

BUSHING

- pivot

1шт.

18

92-8

LOCK WASHER,1/2"

1шт.

19

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 NC

1шт.
