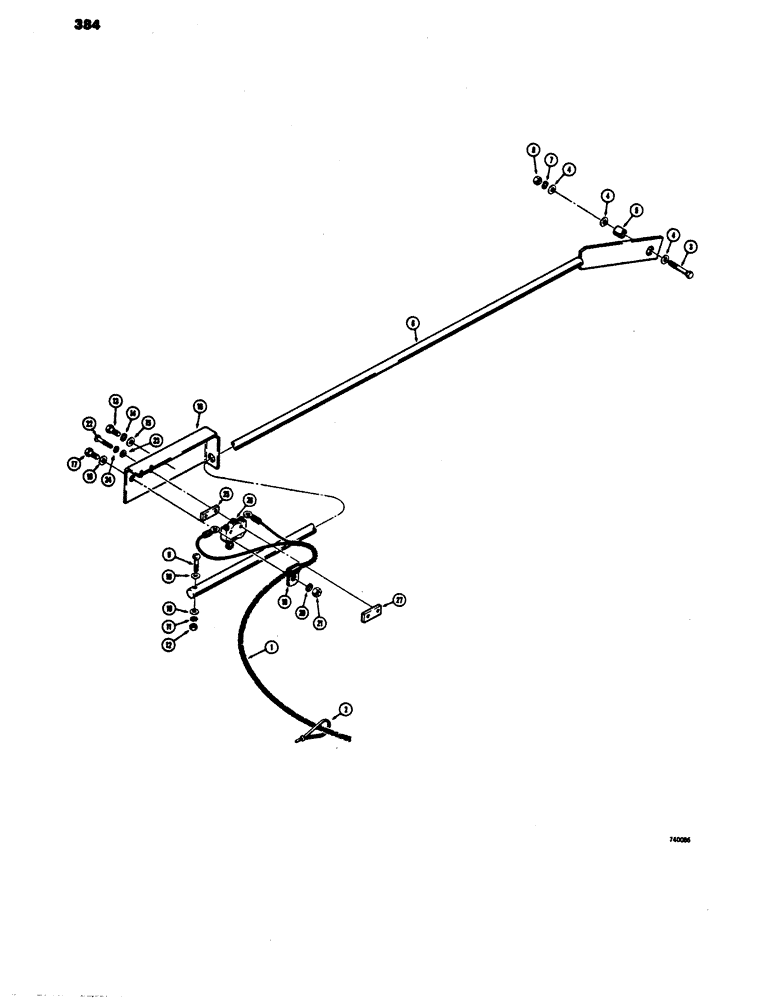

Запчасти Case 680E (384) - LOADER CONTROL, RETURN-TO-DIG PARTS, USED ON MODELS BEFORE (82) - FRONT LOADER & BUCKET

1

L58334

HARNESS

- front wiring

1шт.

2

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - harness tie

5шт.

3

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 NC x 2-1/4"

1шт.

4

95-8

WASHER,1/2"

flat 1/2"

3шт.

5

L57298

BUSHING

- return-to-dig rod

1шт.

6

L58983

ROD - return-to-dig, before tractor sn. 9114538, 59-1/2" (1511 mm) overall

1шт.

6a

L59854

ROD

- return-to-dig, tractor sn. 9114538 and after, 57-1/2" (1460 mm) overall, not shown

1шт.

7

92-8

LOCK WASHER,1/2"

1шт.

8

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 NC

1шт.

9

182-208

SCREW,Slotted Pan Hd, 1/4"-20 X 1 1/4"

- machine, pan head, 1/4" - 20 NC x 1-1/4"

1шт.

10

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

25-104

NUT,1/4"-20, G5

1шт.

13

13-613

SCREW,Hex, 3/8" - 16 x 7/8"

HHCS - 3/8" - 16 NC x 3/4"

2шт.

14

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

L58984

COVER AND BRACKET - return-to-dig switch

1шт.

17

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

18

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

19

D43839

CLAMP

-, Serial Range: harness-cover

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

1шт.

22

169-143

SCREW,Sl Fil Hd, #6 - 32 x 1 1/2"

- machine, round head, #6 - 32 NC x 1-1/2"

2шт.

23

195-507

WASHER,#6

- flat, #6

2шт.

24

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER, LOCK, Ext Tooth, #6

2шт.

25

L70276

SPACER

-, Serial Range: switch-cover

2шт.

26

L54683

SWITCH

- limit, return-to-dig

1шт.

27

L52496

PLATE

BLOCK - tapped (Switch adjustment)

1шт.
