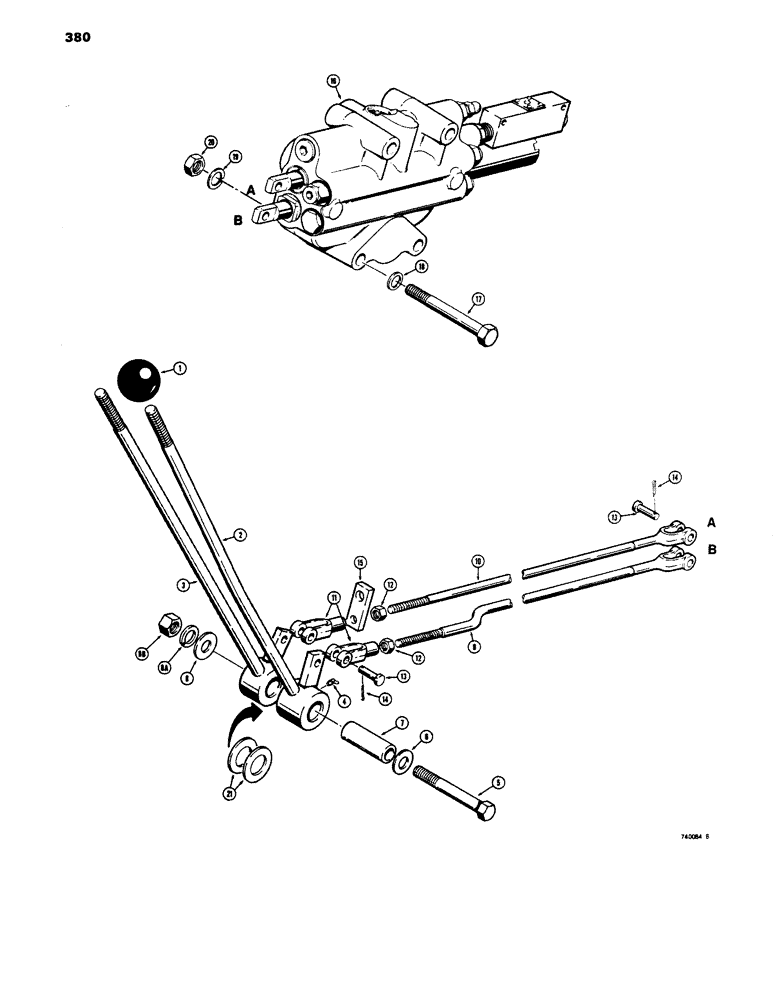

Запчасти Case 680E (380) - LOADER CONTROLS, 2 SPOOL VALVE AND LEVERS (82) - FRONT LOADER & BUCKET

1

L54563

KNOB

- control lever

2шт.

2

L72110

LEVER

- lift control

1шт.

3

L72111

LEVER

- bucket control

1шт.

4

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING - grease, 90 deg., 1/8" NPT, self tapping

2шт.

5

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

6

195-2054

WASHER,17/32" x 2" x .238"

- flat, 1/2"

1шт.

7

L73453

SLEEVE CYLINDER

SLEEVE - pivot, loader control levers

1шт.

8

95-8

WASHER,1/2"

flat 1/2"

1шт.

8a

92-8

LOCK WASHER,1/2"

1шт.

8b

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 NC

1шт.

9

L73018

LINK

ROD - lift, Serial Range: lever-valve

1шт.

10

L57287

DRAG LINK

ROD - bracket control, Serial Range: lever-valve

1шт.

11

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - rod end, 5/16"

2шт.

12

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., lock, 5/16" - 24 NF

2шт.

13

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

4шт.

14

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

15

L53636

PLATE ASSY.

PLATE - anti-roll back to bucket control rod

1шт.

16

REF

INSTRUCTION

VALVE - loader control, 2 spool, see figure 298 and 300

1шт.

17

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

HHCS - 3/8" - 16 NC x 4-1/2"

3шт.

18

95-6

WASHER,3/8"

- flat, 3/8"

3шт.

19

92-6

LOCK WASHER,3/8"

3шт.

20

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

3шт.

21

195-2191

WASHER,13/16" x 1 1/2" x .067", HDN

- spacer

1шт.
