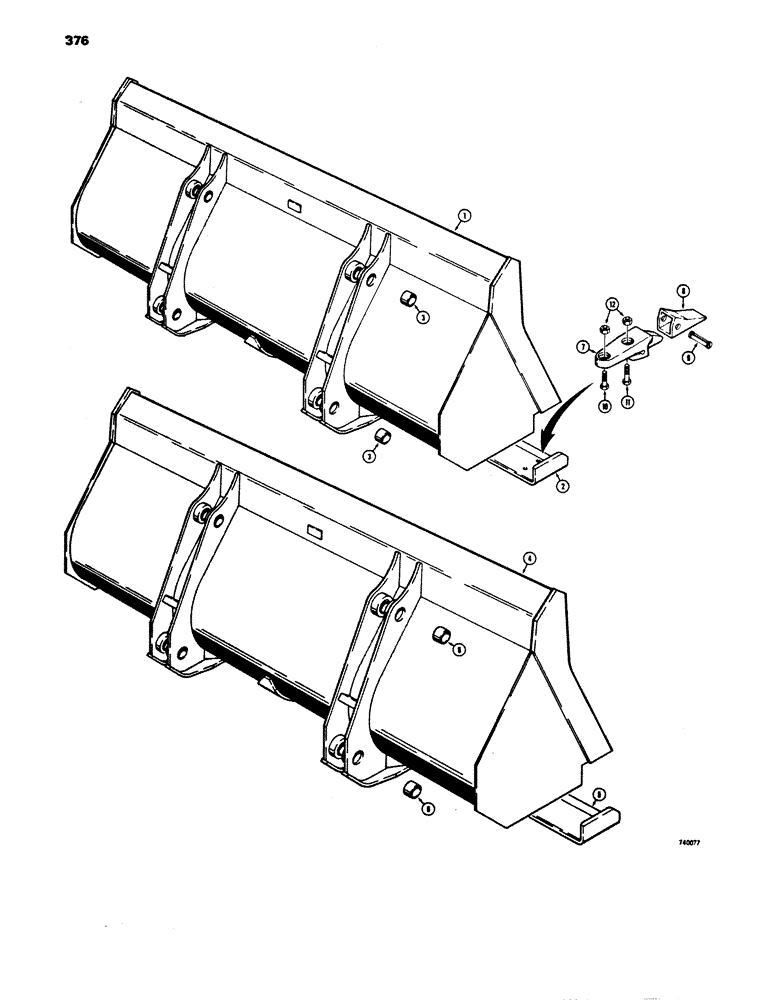

Запчасти Case 680E (376) - LOADER BUCKETS, 1-1/4 CU. YD. (1.0 CU. METRE) LOADER BUCKET (82) - FRONT LOADER & BUCKET

L74889

BUCKET

ASSEMBLY - 86" (2184 mm) wide, machinery item, see figure 2 for ordering, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L58159

EDGE

- cutting

1шт.

3

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- bucket

8шт.

L76924

BUCKET ASSEMBLY - 96" (2348 mm) wide, machinery item, see figure 2 for ordering, Includes: Ref. 1 - 3, 1-1/2 CU. YD. (1.2 METRE) LOADER BUCKET

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L58427

EDGE, CUTTING

EDGE - cutting

1шт.

L58427 - cutting edge - This is a solid edge (no holes).

1шт.

3

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- bucket ear

8шт.

L76487

BUCKET

ASSEMBLY - 96" (2438 mm) wide, machinery item, see figure 2 for ordering, Includes: Ref. 4 - 6, 1-3/4 CU.YD. (1.3 METRE) LOADER BUCKET

1шт.

4

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

5

L58427

EDGE, CUTTING

EDGE - cutting

1шт.

L58427 cutting edge - This is a solid edge (no holes).

1шт.

6

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- bucket ear

8шт.

D50780

TOOTH

ASSEMBLY - bucket, Includes: Ref. 7 - 9, BUCKET TEETH - OPTIONAL ON L74889 BUCKET

8шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

8

D51750

BUCKET TOOTH POINT

POINT - tooth

1шт.

9

D39094

BUCKET TOOTH KEY

FLEX PIN - point

1шт.

10

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

HHCS - 5/8" - 11 NC x 2-1/4", grade 8

8шт.

11

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

HHCS - 5/8" - 11 NC x 2-1/2", grade 8

8шт.

12

129-563

NUT,5/8"-11, G8

- hex., 5/8" - 11 NC

16шт.
